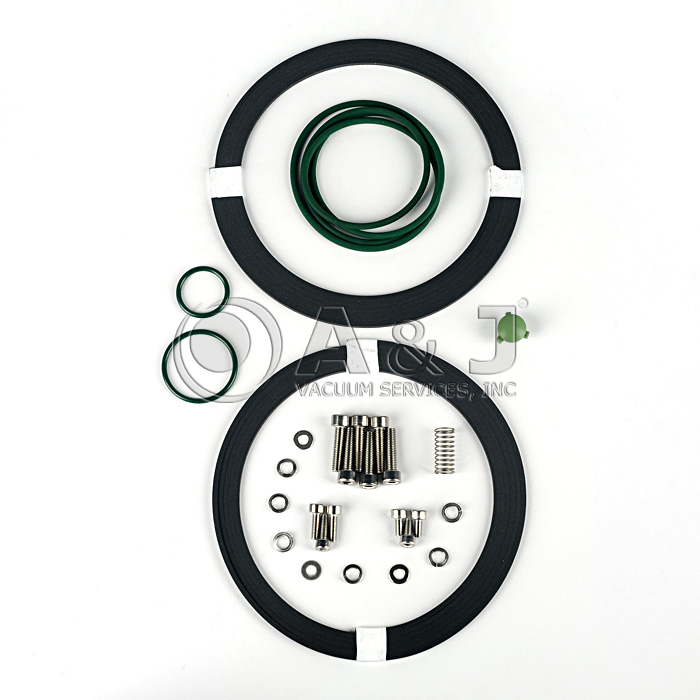

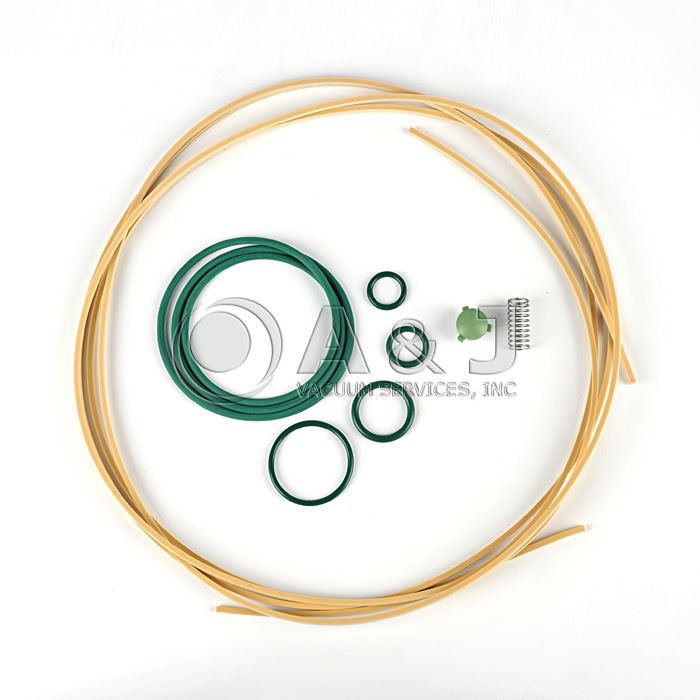

Edwards XDS 35i Dry Scroll Vacuum Pump Tip Seals and Exhaust Kit, A73001801
This XDS35 Kit includes the following parts:
|
Description
|
Qty |
|
Exhaust Valve Pad
|
1
|
|

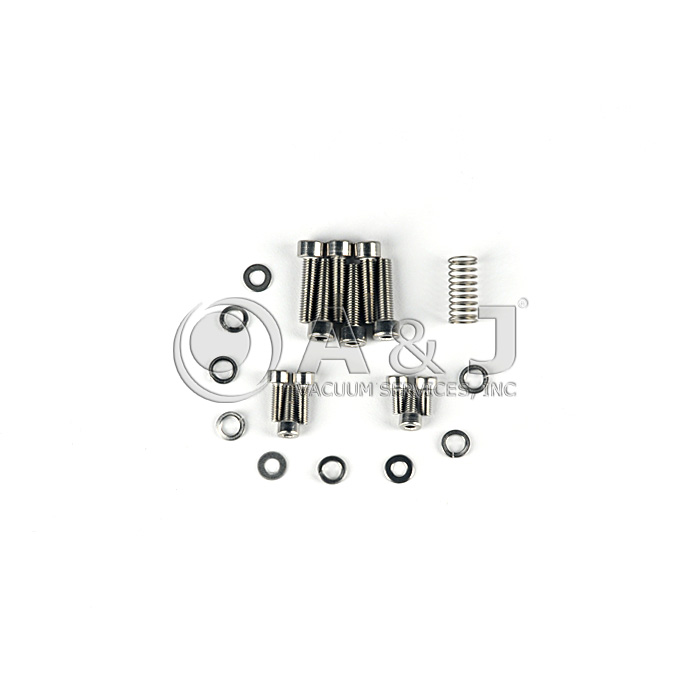

M4 Washer |
3
|
|
M4 x 8 Cap Srew
|
3
|
|
O-Ring, 29.6 x 2.4
|
1
|
|
Spring
|
1
|
|
O-Ring, 19.6 x 2.4
|
1
|
|
M4 x 12 Cap Screw
|
3
|
|
M5 x 20 Cap Screw
|
6
|
|
M5 Washer
|
6
|
|

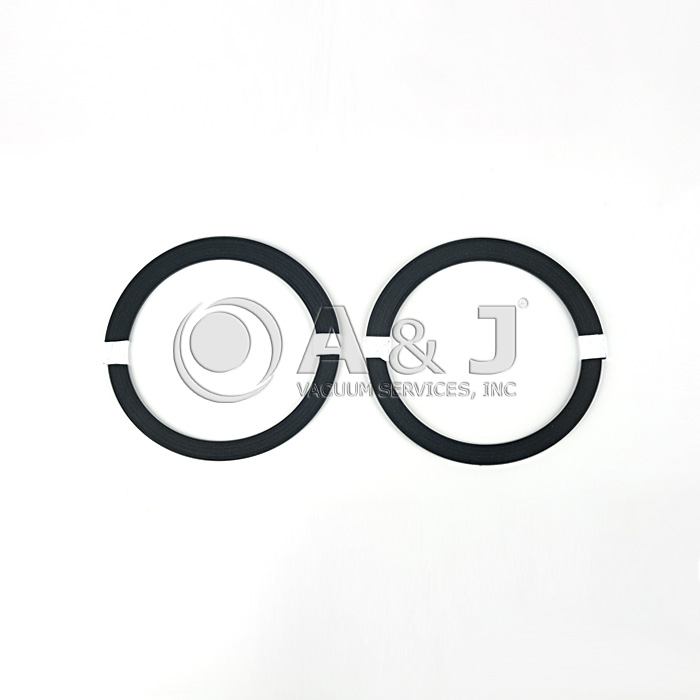

XDS30 Tip Seal
|
2
|
|
O-Ring, 246 x 3
|
1
|
Click Here to view XDS35i Tip seals replacement instructions Kit A73001801
Click Here to view Edwards XDS 35i Instruction Manual
A&J Vacuum Repair / Rebuild and Service EDWARDS XDS35i Scroll Pumps models A73001983 and A73005983, we specialize with all Edwards Vacuum Scroll pump repair, AJVS provides all types or service on XDS35i, Tip seal replacement, XDS35 Major bearing replacement, Electronic s replacement, scroll bellows replacement, along with new line of nXDS Scroll Pumps, Edwards RV series Vacuum Pumps, Edwards Turbo Pumps repair, Edwards Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

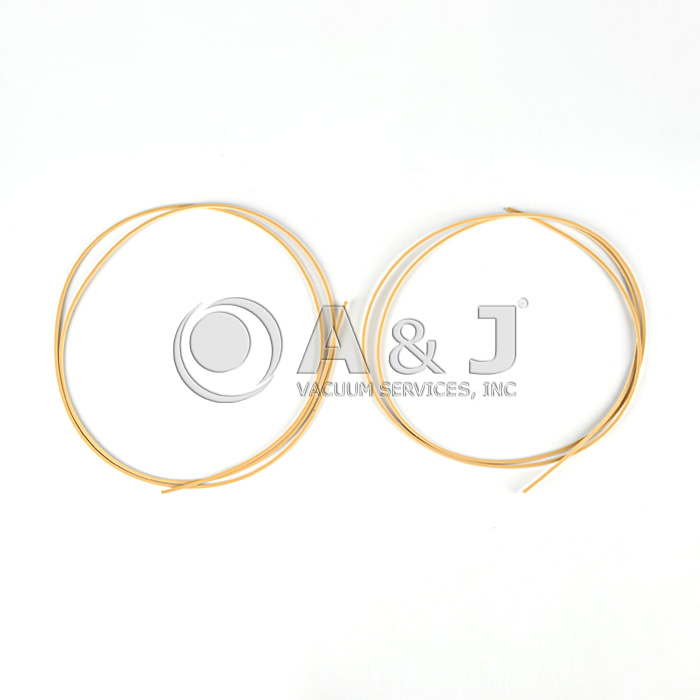

Edwards XDS5, XDS10 Tip Seal Kit and Exhaust Kit for Dry Scroll Vacuum Pump, A72601805

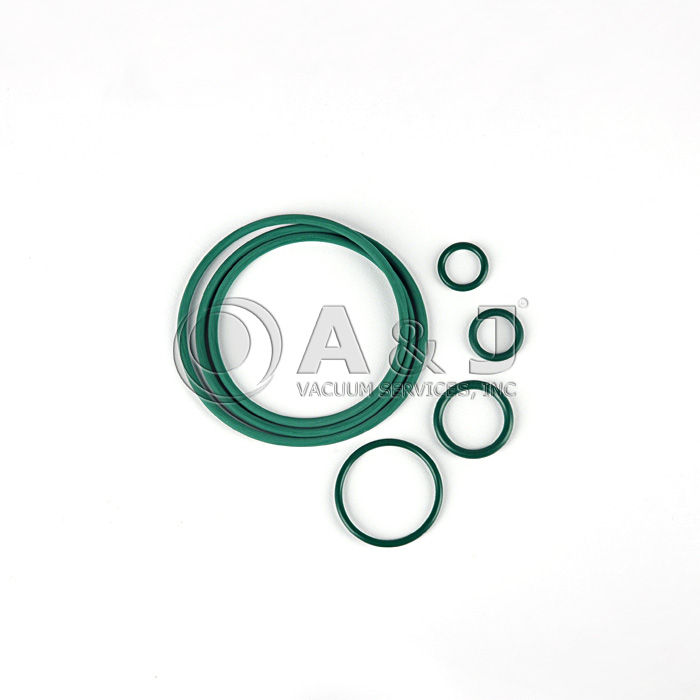

The Edwards XDS5 Tip seal Kit and XDS10 Tip Seals and Exhaust Kit includes O-Rings, Tip Seals and Exhaust Valve for the Edwards Vacuum XDS10 Dry Scroll Vacuum Pump.
We also do minor and major repairs for all Edwards Vacuum Dry Scroll Vacuum Pumps.
Tip Seal kit contains the following:
- 237114034 O-ring Viton 19.5 ID x 3.0

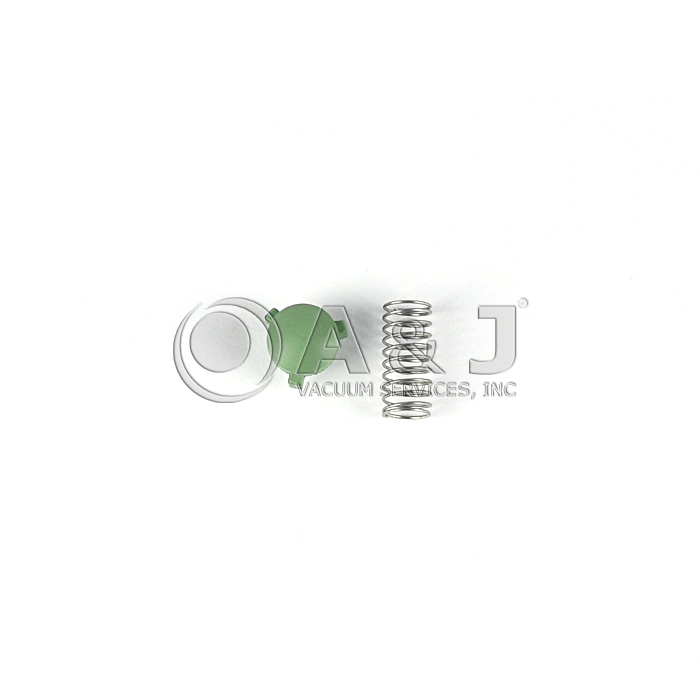

- A26501066 Exhaust Valve Pad
- A27102057 Spring 9.27 O/D x 19.5 LG
- A72601090 Tip Seal XDS5, XDS10
- H02122033 O-ring 11.6 ID x 2.4 SEC Viton
- H02122045 O-ring 29.6 ID x 2.4 SEC Viton
- H02122109 O-ring 199.5 ID x 3.0 SEC Viton
- H02126012 O-ring 0.487 ID x .103 SEC Viton
A&J Vacuum also Repair / Rebuild and Rervice all Edwards XDS5, XDS10 Scroll Pumps, Turbo Pumps Edwards Vacuum Gauges with Edwards Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards XDS5 and XDS10 Dry Scroll Pump Routine Service Kit, A72601823
Edwards Vacuum XDS5 and XDS10 Dry Scroll Pump Routine Service Kit.
This kit contains everything needed for routine maintenance on the Edwards XDS5 and XDS10 dry scroll pumps.
We also do major and minor repairs for ALL Edwards dry scroll pumps.
(Note: Tip Seal Kit is not included and must be purchased separately)

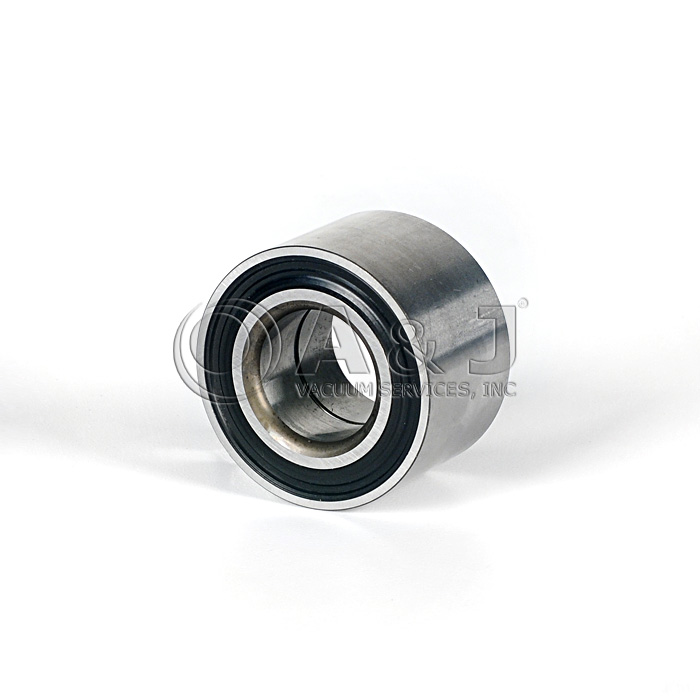

Edwards XDS5 and XDS10 Dry Scroll Pump Main Motor Bearing, Pack of 5, A72601842
Edwards Vacuum XDS5 and XDS10 Dry Scroll Pump Main Motor Bearing.
We also do major and minor repairs for ALL Edwards dry scroll pumps.
Edwards Vacuum XDS5 and XDS10 Dry Scroll Pump Main Motor Bearing.
We also do major and minor repairs for ALL Edwards dry scroll pumps.
THERE ARE NO RETURNS ON THIS PRODUCT.

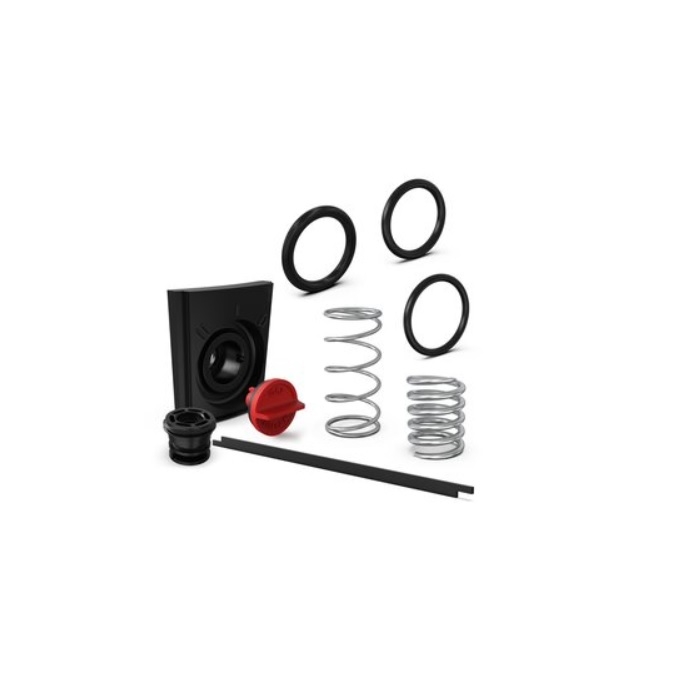

Gas Ballast Assembly Kit for Edwards XDS35i, A73001803, Kit #3

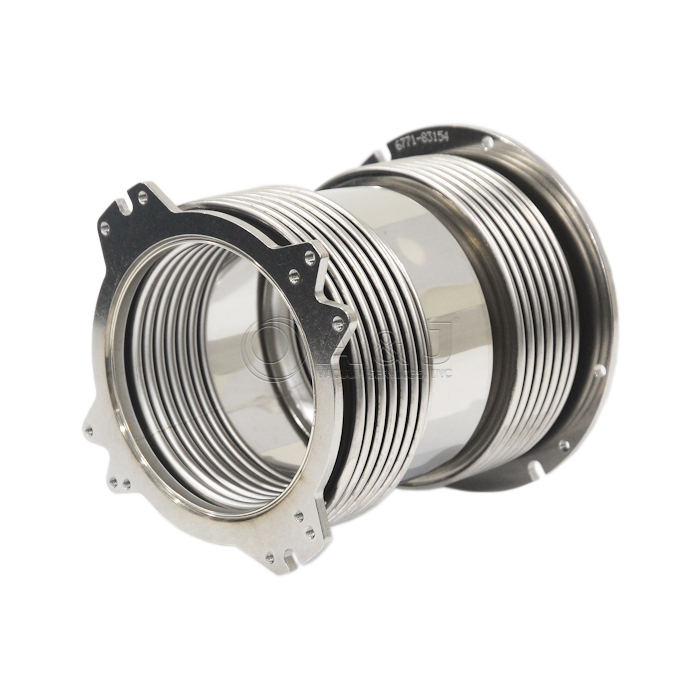

Bellows for Edwards nXDS6i Scroll Pump / A73501718 / A735-01-718
Product info:
Lenght: 134 mm
O.D. 136 mm
I.D 87 mm
Material type:
Stainless Steel

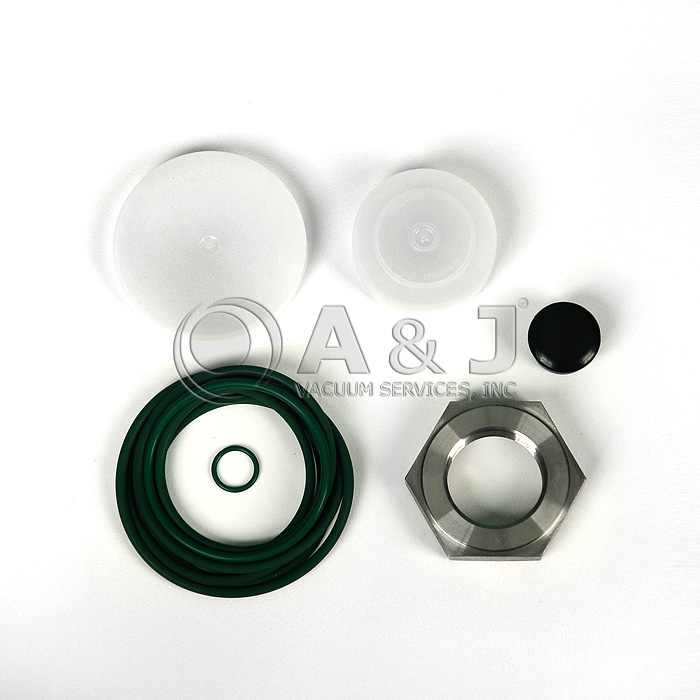

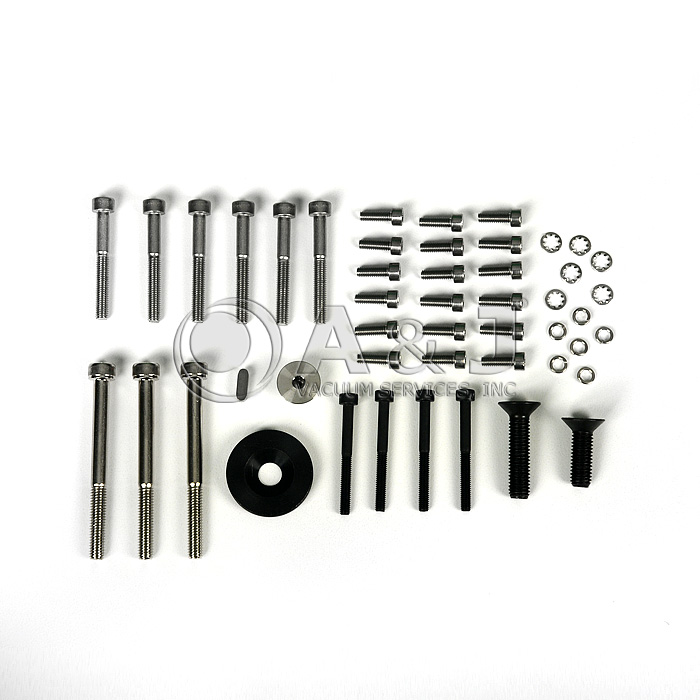

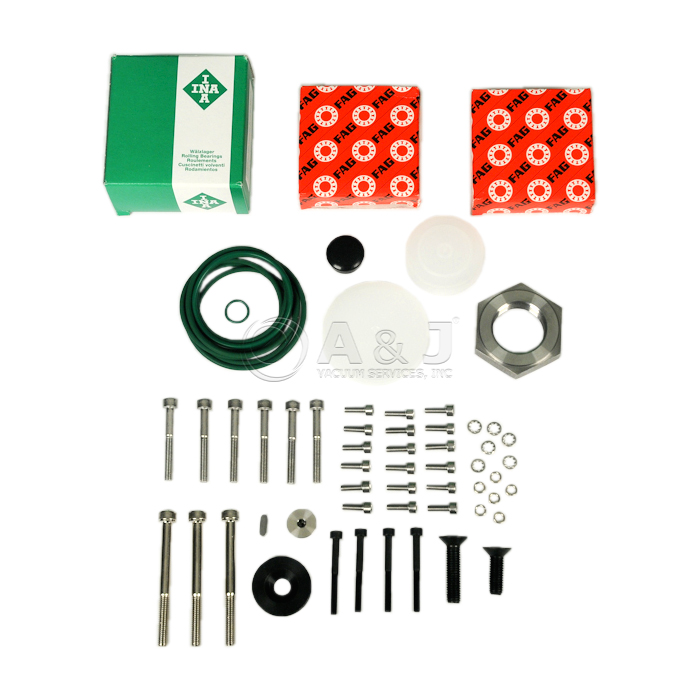

Edwards XDS 35i and XDS 46i Dry Scroll Vacuum Pump General Service Kit, A73001802
This Kit contains the following parts needed for an overhaul and repair of the XDS35i and XDS46i Dry Scroll Vacuum Pump:
|
Description
|
Qty
|
|

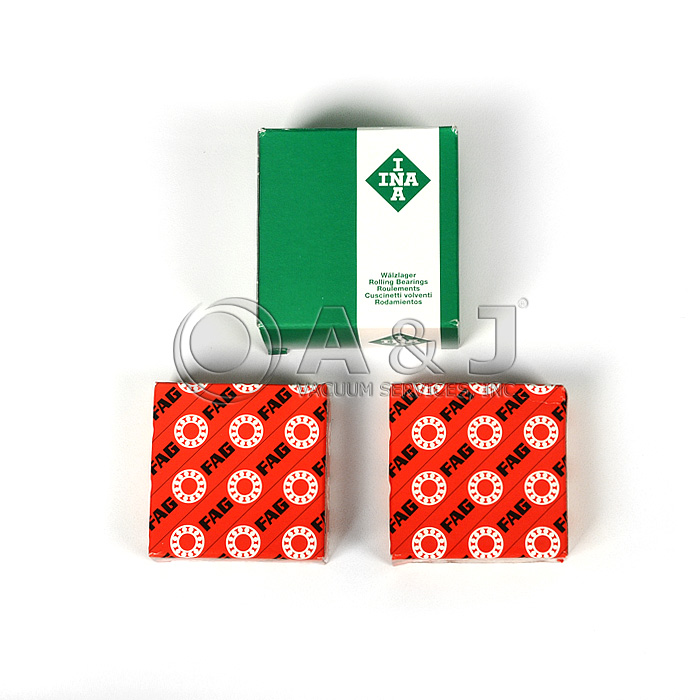

Angular Contact Bearing
|
1
|
|
M4 Washer
|
6
|
|
Shaft End Cap
|
1
|
|
M8 x 25 Screw
|
1
|
|
M8 x 35 Screw
|
1
|
|
M4 x 40 Cap Screw
|
4
|
|
4 x 4 x 12 Key Form
|
1
|
|
M5 x 40 Pan Screw
|
6
|
|
A/C Brg
|
2
|
|
M30 x 2 Thin Nut
|
1
|
|
M4 x 12 Cap Screw
|
18
|
|
M4 Washer
|
6
|
|
Orbital Scroll Plug
|
1
|
|
M6 x 65 Cap Screw
|
3
|
|
Circlip
|
1
|
|
KF25 Flange Ring Cover
|
1
|
|
O-Ring, 174.5 x 3
|
1
|
|
O-Ring, 11.1 x 1.6
|
1
|
|
O-Ring, 49.5 x 3
|
1
|
|
19mm Blanking Plug
|
1
|
|
NW40 Protective Cap
|
1
|
|
M4 Washer
|
6
|
|
O-Ring, 159.5 x 3
|
1
|
Click Here to view XDS35i Tip seals replacement instructions Kit A73001801
Click Here to view Edwards XDS 35i Instruction Manual
There are no returns on this product.
A&J Vacuum Repair / Rebuild and Service EDWARDS XDS35i Scroll Pumps models A73001983 and A73005983, we specialize with all Edwards Vacuum Scroll pump repair, AJVS provides all types or service on XDS35i, Tip seal replacement, XDS35 Major bearing replacement, Electronic s replacement, scroll bellows replacement, along with new line of nXDS Scroll Pumps, Edwards RV series Vacuum Pumps, Edwards Turbo Pumps repair, Edwards Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards XDS35i Tool Kit for XDS 35i Scroll Pump, Service Tool Kit P/N A73001750
This is original Edwards Tool Kit, contains the following parts:
|
Part # A73001750 Kit Contents |
||
|
Part # |
Description |
Qty |
|
A73001107 |
XDS BEARING INSERTION TOOL |
1 |
|
A73001108 |
MOTOR ROTOR REMOVAL LOCK |
1 |
|
A73001109 |
XDS35I BRIDGE GAUGE |
1 |
|
A73001045 |
BEARING SPACER PAIR |
1 |
|
A73001112 |
ROTOR/NUT TORQUE TOOL |
1 |
|
A73001855 |
IM,XDS35i Maintenance Manual,EN |
1 |
A&J Vacuum Repair / Rebuild and Service Edwards XDS35i SCROLL PUMPS, XDS100B and XDS46i pump service along with all other Edwards Vacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards By-pass valve Kit for XDS 35iE / A73003804
A&J Vacuum Repair / Rebuild and Service Edwards XDS35i SCROLL PUMPS, XDS100B and XDS46i pump service along with all other Edwards Vacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
