- Flange (in) DN 160 ISO-K
Pfeiffer Vacuum HiPace 700 Turbo Pump with TC 400 Controller, OPS 400 and cooling Fan Package, DN 160 ISO-K, PMP04596 / PM P04 596
Please note: Mains power cable is not included, please see accesories tab to select your cable.
Pfeiffer HiPace 700 with TC 400, OPS 400 and Cooling Fan Overview:
The Pfeiffer HiPace 700 package PM P04 596 is a complete turbo pump with Pfeiffer OPS 400 Onboard Power Supply and cooling fan. These models are cost-effective and offer flexible installation in any orientation.
The Pfeiffer HiPace 700 proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
The turbopump HiPace 700 forms a complete unit together with the electronic drive unit TC 400. This turbopump offers water as well as air cooling (optional). This pump has not integrated power supply.
Complete Operating Instruction for HiPace 700 PM P04 596 is available in PDF format below.
Pfeiffer Hipace 700 Features:
- Minimum footprint and maximum reliability
- High gas throughput and high pumping speed
- Suitable for industrial environments - Protection class IP54
- Semi S2- and UL/CSA certification
- Maximum reliability through monitoring of operating data
- Easy installation for quick application and operation
- Components optimally matched for real “plug and play”
- Compact yet powerful turbopump with a pumping speed of up to 685 l/s for N2
- Maximum vacuum performance with minimum power consumption
- For installation in any orientation
- External TCP 400 drive electronics
- Integrated, powerful cooling system
Pfeiffer HiPace 700 Characteristic:

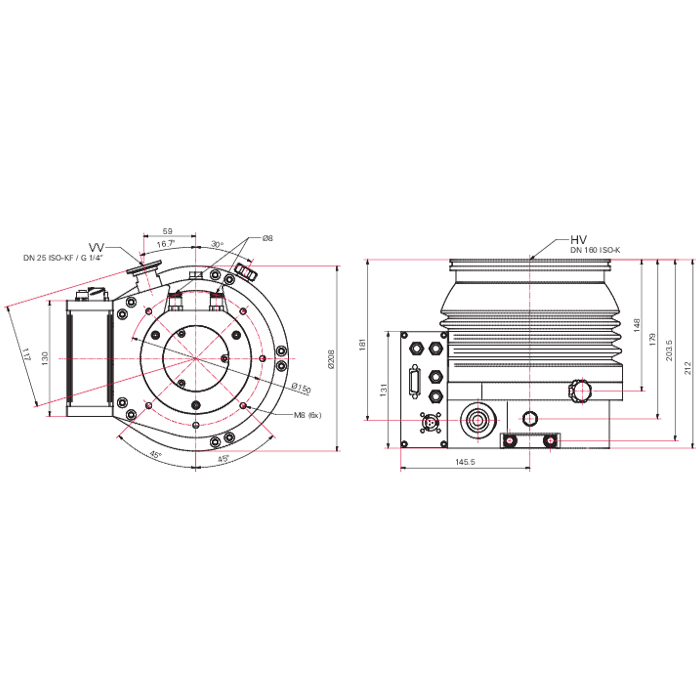

Pfeiffer HiPace 700 Dimensions:
Click Here to view Pfeiffer Vacuum HiPace 700 Turbo Pump Operating Instructions
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 700 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum HiPace 700 Turbo Pump with TC 400 Controller, OPS 400 and cooling Fan Package, DN 160 ISO-K, PMP04596 / PM P04 596
Please note: Mains power cable is not included, please see accesories tab to select your cable.
Pfeiffer HiPace 700 Turbo Package Overview:
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 1011 |
| Compression ratio for H2 | 4 · 105 |
| Compression ratio for He | 3 · 107 |
| Compression ratio for N2 | > 1 · 1011 |
| Cooling method, optional | Air |
| Cooling method, standard | Water |
| Cooling water flow | 100 l/h |
| Cooling water flow, max | 100 l/h |
| Cooling water flow, min | 100 l/h |
| Cooling water temperature | 15-35 °C | 59-95 °F | 288-308 K |
| Current max. | 8,75 A |
| Electronic drive unit | with TC 400 |
| Flange (in) | DN 160 ISO-K |
| Flange (out) | DN 25 ISO-KF/G ¼" |
| Fore-vacuum max. for N2 | 11 hPa | 8.25 Torr | 11 mbar |
| Gas throughput at full rotational speed for Ar | 3.5 hPa·l/s |
| Gas throughput at full rotational speed for H2 | > 14 hPa·l/s |
| Gas throughput at full rotational speed for He | 10 hPa·l/s |
| Gas throughput at full rotational speed for N2 | 6.5 hPa·l/s |
| I/O interfaces | RS-485, Remote, Profibus |
| Interface, extended | Profibus |
| Mounting orientation | Any |
| Operating voltage: V DC | 48 (± 5 %) V DC |
| Permissible magnetic field max. | 6 mT |
| Power consumption max. | 420 W |
| Protection category | IP54 |
| Pumping speed for Ar | 665 l/s |
| Pumping speed for H2 | 555 l/s |
| Pumping speed for He | 655 l/s |
| Pumping speed for N2 | 685 l/s |
| Rotation speed ± 2 % | 49,200 rpm | 49,200 min-1 |
| Rotation speed variable | 60 – 100 % |
| Run-up time | 2 min |
| Sound pressure level | ≤50 dB(A) |
| Ultimate pressure according to PNEUROP | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
| Ultimate pressure without gas ballast | 1 · 10-7 hPa | 7.5 · 10-8 Torr | 1 · 10-7 mbar |
| Venting connection | G 1/8" |
| Weight | 11.5 kg | 25.35 lb |
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 700 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Hipace 700 Datasheet PMP04596 / PM P04 596

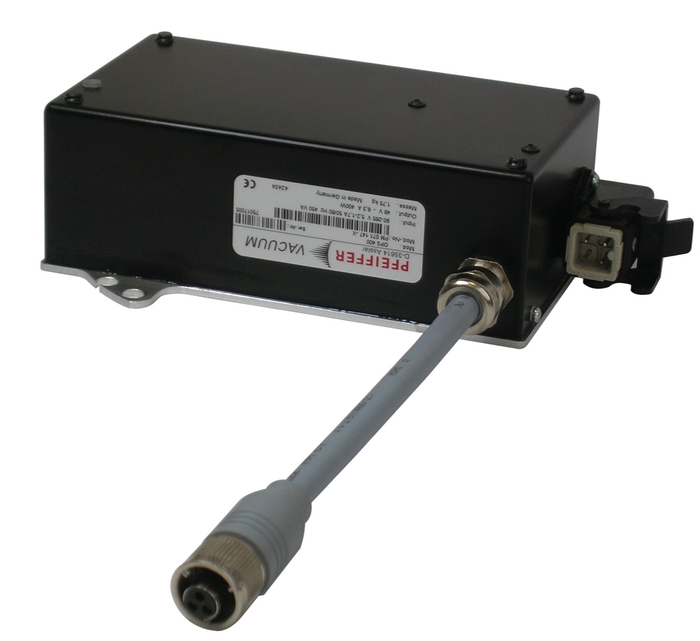

Pfeiffer OPS 400 On board power supply OPS400
Pfeiffer Vacuum TC400 Turbo Pump Controller, TC-400, TC 400, PMC01800
Pfeiffer HiPace 700 Turbo Pump Manual, Hipace700
|
