- Ulvac Ulvoil R4
- Volume: 5 Gallons
- For Ulvac Rotary Vane Pumps
- Ultimate Pressure: < 4 x 10-1 Pa
Shopping Cart ( )

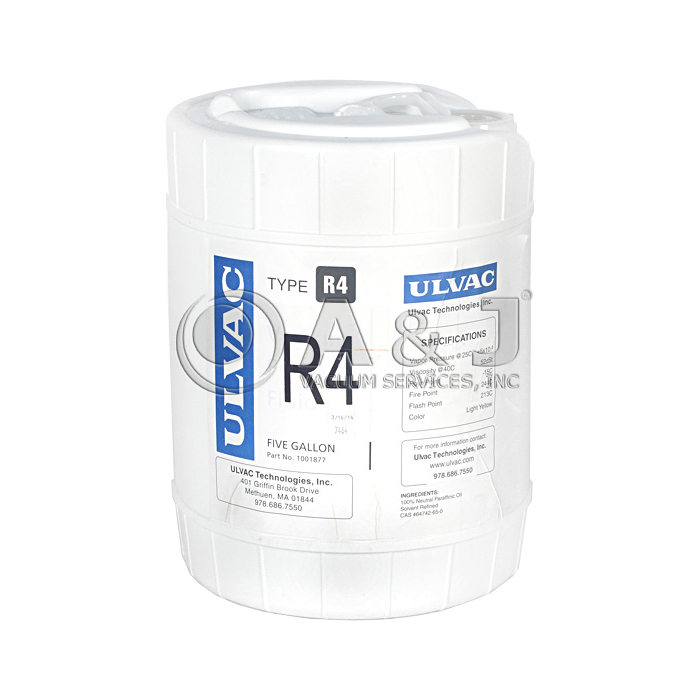

Ulvac R4 Ulvoil Rotary Vane Vacuum Pump Oil, 5 Gallons, 1001877
Condition:
New
In Stock
Item#:PN17995
Mfr Part#:1001877
Manufacturer:Ulvac
Features:
ULVAC ULVOIL R4 Rotary Vane Vacuum Pump Oil, 5 Gallons, 1001877 ULVAC R-4
Ulvac Ulvoil R 4 is a petroleum based oil for general use created for both cost effectiveness and quality through hydrogenation improvement and high vacuum rectification processing.
R-4 is a cost effective product with high general applicability. When using a pump with an extremely high gas load, chemical changes may occur in the oil due to generated heat and chemical composition of the gasses being pumped. Therefore, it is important to select oil that suits the pump type and operating conditions.
- Features low viscosity and low temperature startup
- Recommended for small model vacuum pumps
Ultimate Pressure: < 4 x 10-1 Pa
Color: Light Yellow/Transparent
Kinematic Viscosity (40 Degrees Celsius): 47 mm2/s
Kinematic Viscosity (100 Degrees Celsius): 7 mm2/s
Viscosity Index: 108
Water Content: 0.01> Percent
Total Acid Number: 0.05> mg KOH/g
Density: 0.87 g/cm3
Shipping weight: 40 lbs
HTS Code; 2710.19.3080
A&J Vacuum Repair / Rebuild and Service ULVAC Vacuum Pumps and ULVAC Vacuum Boosters Pumps along with all other Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, ULVAC Leak Detector Repair and Service. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
ULVAC ULVOIL R4 Rotary Vane Vacuum Pump Oil, 5 Gallons, 1001877 ULVAC R-4
Ultimate Pressure: < 4 x 10-1 Pa
Color: Light Yellow/Transparent
Kinematic Viscosity (40 Degrees Celsius): 47 mm2/s
Kinematic Viscosity (100 Degrees Celsius): 7 mm2/s
Viscosity Index: 108
Water Content: 0.01> Percent
Total Acid Number: 0.05> mg KOH/g
Density: 0.87 g/cm3
Shipping weight: 40 lbs
HTS Code; 2710.19.3080
A&J Vacuum Repair / Rebuild and Service ULVAC Vacuum Pumps and ULVAC Vacuum Boosters Pumps along with all other Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, ULVAC Leak Detector Repair and Service. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
