- PN 1001879
- Volume: 4 Liters
- For Ulvac Small Rotary Vane Pumps
Shopping Cart ( )

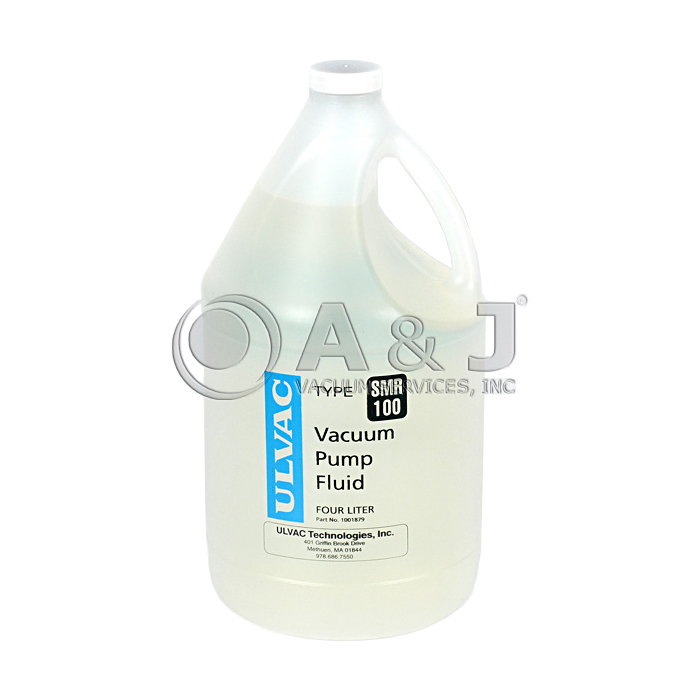

Ulvac SMR100 Vacuum Pump Oil, 4 Liters, 1001879
Condition:
New
Item#:PN18000
Mfr Part#:1001879
Manufacturer:Ulvac
Features:
Ulvac SMR100 Vacuum Pump Oil, 4 Liters, 1001879
SMR100 / 1001879 Overview:
Ulvac SMR 100 is a mineral based vacuum pump oil specially manufactured with low viscosity for smooth starting at cold temperatures. It is recommended that only SMR-100 be used on Ulvacs small oil rotary vane vacuum pumps.
Ulvac SMR-100 Pump oil is recomended for Ulvac Rotary Vane Vacuum Pumps. Please refer to Ulvac pump operation manual for proper vacuum pump oil selection.
Ulvac small rotary vane pumps models and recommended oil volumes:
- G-101D: 800mL
- GLD-051: 500-800mL
- GLD-137AA: 1000mL
- GLD-137CC: 1000mL
- GLD-202AA: 1100mL
- GLD-202BB: 1100mL
A&J Vacuum Repairs / Rebuilds and Services All Ulvac Vacuum Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Ulvac SMR100 Vacuum Pump Oil, 4 Liters, 1001879
Ulvac SMR100 Technical Data:
| Physical State | Liquid |
| Form | Clear |
| Color | straw yellow |
| Odor | Mild |
| Odor Threshold | N/D |
| Relative Density (at 25 °C) | 0.87 g/ml |
| Flammability (Solid, Gas) | N/A |
| Flash Point [Method] | 218°C (424°F) [ASTM D-93] |
| Flammable Limits (Approximate volume % in air) | LEL: N/D UEL: N/D |
| Autoignition Temperature | N/D |
| Boiling Point / Range | 112ºC @ .01 torr |
| Decomposition Temperature | N/D |
| Vapor Density (Air = 1) | N/D |
| Vapor Pressure | <.0001 Torr @25ºC |
| Evaporation Rate (n-butyl acetate = 1) | N/D |
| pH | N/A |
| Log Pow (n-Octanol/Water Partition Coefficient) | N/D |
| Solubility in Water | Negligible |
| Viscosity | 48 cSt (48 mm2/sec) at 40 °C | 7.3 cSt (7.3 mm2/sec) at 100°C |
| Freezing Point | N/D |
| Melting Point | N/D |
| Pour Point | < -17°C (1.4°F) |
A&J Vacuum Repairs / Rebuilds and Services All Ulvac Vacuum Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
