- Ceramic Diaphragm
- Lower Measuring Limit mbar/torr 1 / 1
- Ambient Temperature Range (Storage) °C -10 - 60
- Degree of Protection IP 40
Shopping Cart ( )
Vacuubrand DVR 2 Pro Vacuum Gauge, Range from Atmosphere Down to 1 Mbar, 20682906
Condition:
New
Item#:PN23275
Mfr Part#:20682906
Manufacturer:BRANDTECH / Vacuubrand
Features:
Vacuubrand DVR 2 Pro Vacuum Gauge, Range from Atmosphere Down to 1 Mbar, 20682906
Vacuubrand DVR 2 Pro Vacuum Gauge Features:
- Improved functionality within the navigation menu helps to save energy and to increase the life cycle of the battery
- Large, graphical analog display with digital measuring values alows to detect tendencies and makes it easier to readout precisely
- Pressure unit user-selectable in mbar, hPa or Torr prevents unnecessary conversions
- Different vacuum connections and the additional support rod allow the use in almost every laboratory application
- Chemical resistant materials for wetted parts together with the capacitive ceramic diaphragm pressure sensor provide excellent long-term stability and accuracy
DVR 2 Pro Vacuum Gauge / 20682906 Overview:
The DVR 2 pro is a fully electronic, versatile vacuum gauge for the measuring range from atmospheric pressure to 1 mbar. All wetted parts are made from enhanced chemical resistant material which allows the use under very rough laboratory conditions.
The high accuracy and the large graphical display from the DVR 2 have also been carried forward for the “pro” version. One of the main enhancements is the power supply with a normal 9 V Alkaline battery.
The new battery slot at the back of the Vacuubrand DVR 2 Pro gauge allows for easy replacement of the battery. A wider range of connection parts provide a great range of connection flexibility for laboratory use.
A&J Vacuum Services offers full repair/service of Vacuubrand , along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Vacuubrand DVR 2 Pro Vacuum Gauge, Range from Atmosphere Down to 1 Mbar, 20682906
Vacuubrand DVR 2 Pro Vacuum Gauge Technical Data:
| Upper measuring limit in mbar/hPa | 1060 mbar |
| Upper measuring limit in torr | 795 torr |
| Lower measuring limit in mbar/hPa | 1 |
| Lower measuring limit in torr | 1 torr |
| Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure |
| Accuracy of measurement | < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) mbar/hPa/torr |
| Temperature coefficient | < 0.15 mbar/hPa/0.11 torr /K mbar/hPa/torr /K |

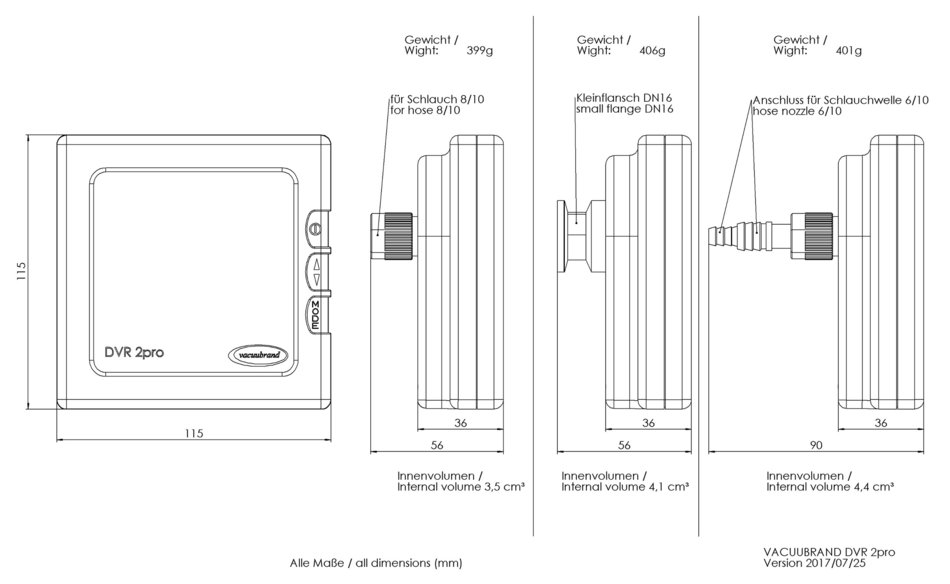

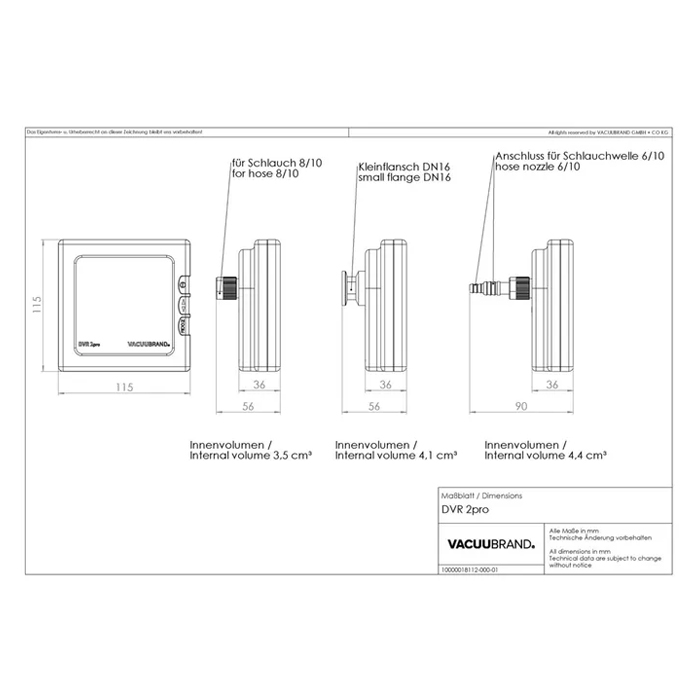

| Vacum connection | Small flange KF DN 16, PTFE tubing connection 10/8 mm, hose nozzle DN 6/10 mm |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Max. media temperature for continuous operation | 40 °C |
| Max. media temperature short term | 80 °C |
| Automatic switch-off | User-selectable: 1-600 min (default 5 min) or continuous operation min |
| Measurement cycle | User-selectable: Automatic or 1 x per 3s, 1 x per 1s, 3 x per 1s |
| Material of outer housing | Robust plastic housing with good chemical resistance |
| Protection class IEC 60529 | IP 40 |
| Protection class front side IEC 60529 | 6 |
| Power supply | 9 V battery |
| Weight | 0.4 kg | 0.9 lb |
| Dimension L in mm | 115 mm |
| Dimension B in mm | 115 mm |
| Dimension H in mm | 90 mm |
| Vacuum sensor | Integr. |
| Typical battery lifetime | 4.000 h, stand-by: 30.000 h h |
| NRTL certification | No |
| Items supplied | Vacuum gauge complete with integrated vacuum sensor, including battery 9 V alkali-manganese, support rod, connecting parts and manual. |
