- PN 683170
- VSK 3000 Sensor Included
- Fully Automatic
Shopping Cart ( )
Vacuubrand DCP 3000 Vacuum Gauge with VSK 3000 Vacuum Sensor, 100-230V/50-60Hz, 683170
Condition:
New
Item#:PN19321
Mfr Part#:683170
Manufacturer:BRANDTECH / Vacuubrand
Features:
Vacuubrand DCP3000 Vacuum Gauge with VSK3000 Vacuum Sensor, 100-230V/50-60Hz, 683170
Vacuubrand DCP 3000 Overview:
The Vacuubrand DCP 3000 Vacuum Gauge is an outstanding product to be used for Rough and fine vacuum. A large and user friendly illuminated display shows the measured values of all vacuum sensors by a simple turn of a button.

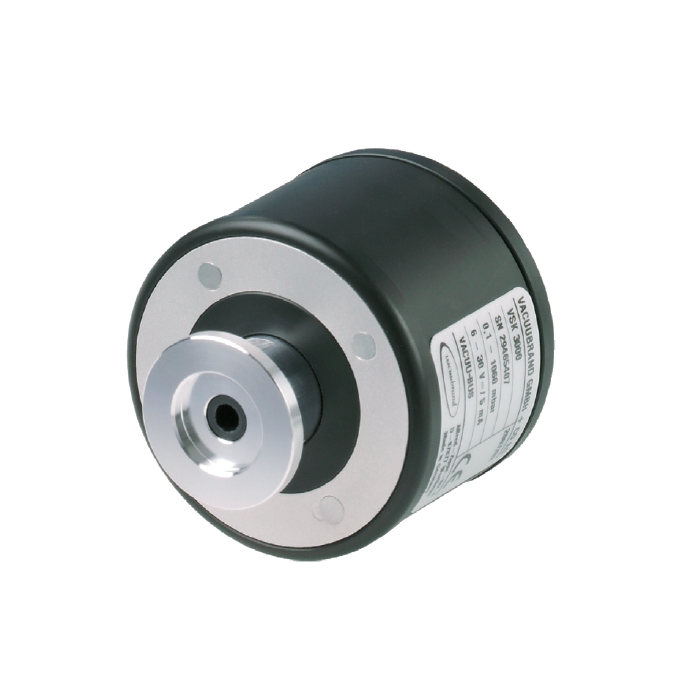

The Vacuubrand VSK 3000 (636657) vacuum sensor with unique ceramic diaphragm measures from atmospheric pressure down to 0.1 mbar. VSK3000 displays absolute pressure independent of gas type. Vacuubrand VSK3000 sensor is very corrosion resistant and has an outstanding accuracy and longterm stability.
Vacuubrand DCP 3000 offers simultaneous connection of up to eight vacuum sensors which alloes flexable measuring on the spot.

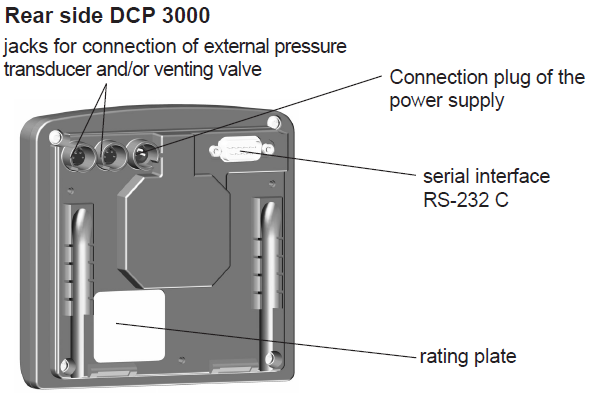

The DCP3000 is equipped with VACUU·BUS® (Digital Bus System) feature which allows the gauge to communicate with external components.
The Vacuubrand DCP 3000 / 683170 offers fully automatic configuration, unified plug connections and cable lenghts up to 30 meters
Vacuubrand DCP 3000 Features:
- VSK 3000 capacitive alumina ceramic diaphragm vacuum sensor with very high chemical resistance, offers gas-type independent absolute pressure measurement
- outstanding measuring accuracy, temperature and long term stability
- relative pressure measurement option (VSK 3000) and data logger feature (up to 32,000 values, readout via RS 232C)
- up to four gauge heads VSK 3000 (Atm. - 0.1 mbar) and four VSP 3000 (Atm. - 10-3 mbar) can be simultaneously connected
A&J Vacuum Services offers full repair/service of Vacuubrand , along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Vacuubrand DCP3000 Vacuum Gauge with VSK3000 Vacuum Sensor, 100-230V/50-60Hz, 683170
Vacuubrand DCP 3000 Technical Data:
| Technical data | Unit | Set DCP 3000 + VSK 3000 |
|---|---|---|
| Vacuum sensor | VSK 3000 | |
| Cable length of vacuum sensor | m | 2 |
| Upper measuring limit | mbar/torr | 1080 / 810 |
| Lower measuring limit | mbar/torr | 0.1 / 0.1 |
| Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure | |
| Accuracy of measurement | < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) | |
| Temperature coefficient | < 0.07 mbar/hPa/0.05 torr /K | |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. media temp. for continuous operation / short times | °C | 40 / 80 |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Degree of protection | IP 20 | |
| Degree of protection of front side (also built-in version) | IP 42 | |
| Max. power for VACUU·BUS® (24V DC) | 4 A | |
| Cable length of external power supply | m | 2 |
| Interface | RS 232C | |
| Dimensions (L x W x H) | mm | 144 x 124 x 114 |
| Weight | kg | 0.44 |
| NRTL certification | Canada and the USA | |
| ATEX-approval | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Vacuum gauge with external vacuum sensor VSK 3000, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual. |
A&J Vacuum Services offers full repair/service of Vacuubrand , along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Vacuubrand DCP3000, Brandtech DCP 3000 Vacuum Gauge with VSK 3000, VSK3000 Vacuum Sensor
Vacuubrand VSK3000, VSP3000 Vacuum Sensor, VSK 3000, VSP 3000 Brandtech vacuum Gauge,636657, 636163
