- PN 743303
- Low Operating Vibrations
- Very Quiet Operation
- Pumping Speed: 12 m3/h
Shopping Cart ( )

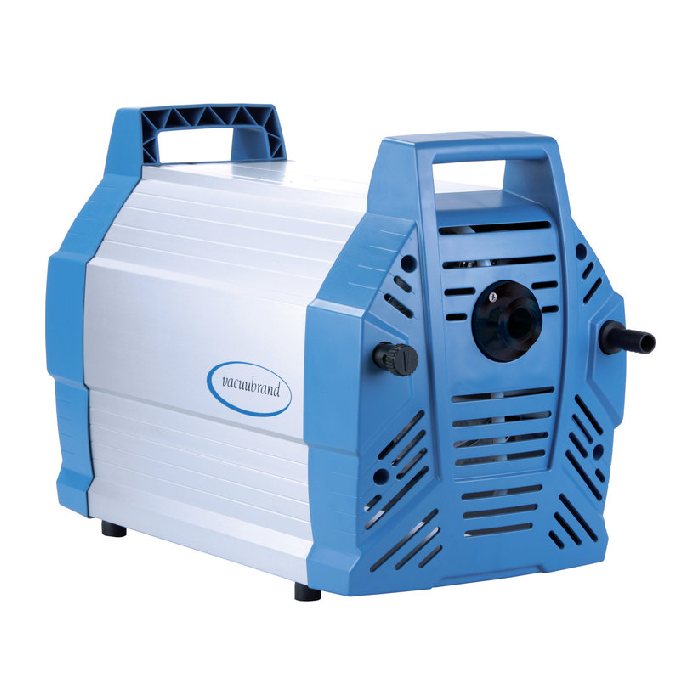

Vacuubrand MD 12C NT Chemistry Diaphragm Pump, 100-120V / 50-60Hz, US Power Cord, 7.0 CFM, 2 mbar, 743303 / 20743303
Condition:
New
Item#:PN19563
Mfr Part#:743303 / 20743303
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Vacuubrand MD 12C NT Chemistry Diaphragm Pump, 100-120V / 50-60Hz, US Power Cord, 7.0 CFM, 2 mbar, 743303 / 20743303
Vacuubrand MD 12C NT Features:
- Super quiet
- Ultra low vibration
- High chemical resistance
- Space saver
- Simple to use
- Maintenance free drive system
MD 12C NT / 20743303 Overview:
The Vacuubrand MD 12C NT is a three stage new technology chemistry resistant diaphragm pump. MD 12C offers superior solution for continious dry oil free vacuum pumping of corrosive gases and vapors.
The three stage design of eight cylinder MD 12C NT provides the advantageous combination of high pumping speed and very low ultimate vacuum. All parts of the Vacuubrand MD 12C NT in contact with pumped media are made of chemically resistant fluoroplastics.
Superior design of PTFE sandwich diaphragms provide increased reliability and extended operating life. Due to the gas ballast valve and its very good ultimate vacuum (even with gas ballast) the Vacuubrand MD12C NT is also suitable for pumping condensable vapors of high-boiling solvents.
The new MD 12NT diaphragm pump series features improved performance data, user friendly service and excellent vapor tolerance.
MD12CNT Scope of Delivery:
- Pump completely mounted
- Manual
MD12CNT Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Vacuubrand MD 12C NT Chemistry Diaphragm Pump, 100-120V / 50-60Hz, US Power Cord, 7.0 CFM, 2 mbar, 743303 / 20743303
Vacuubrand MD 12C NT Technical Data:
- Max. pumping speed 50 Hz: 12 m3/h
- Max. pumping speed 60 Hz: 7.0 cfm
- Ultimate vacuum: 2 mbar / 1.5 torr
- Ultimate vacuum with gas ballast: 4 mbar / 3 torr
- Number of heads: 8
- Number of stages: 3
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: small flange KF DN 25
- Outlet connection: Hose nozzle DN 15 mm
- Rated motor power: 0.53 kW
- Rated motor speed at 50/60 Hz: 1650 min-1
- Protection class IEC 60529: IP 40

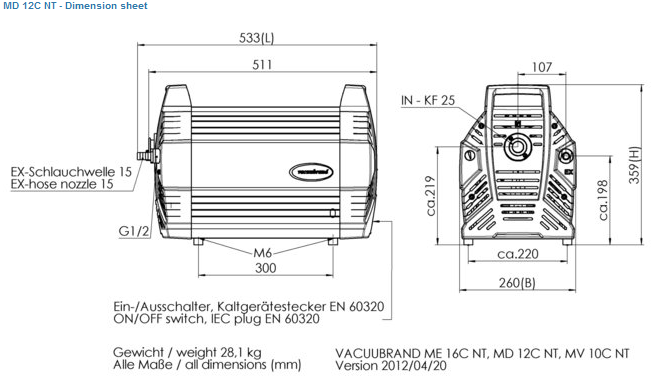

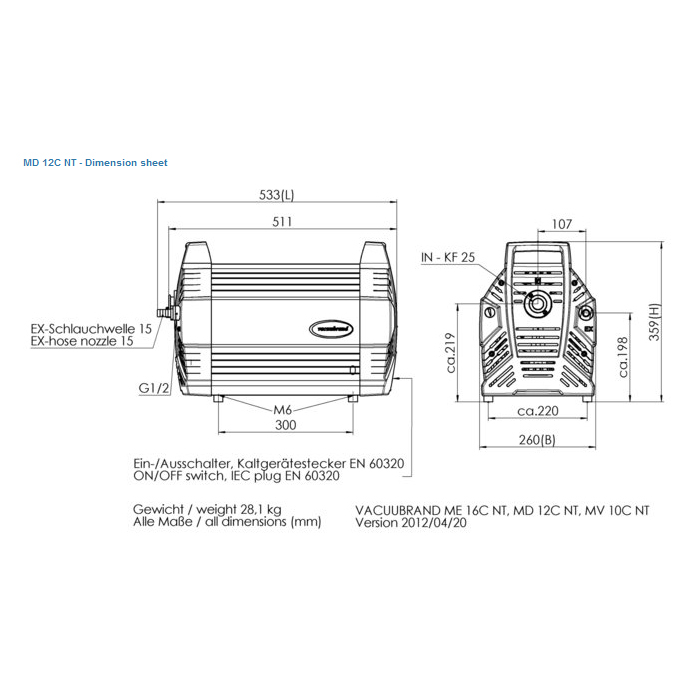

- Dimension L in mm: 533 mm
- Dimension B in mm: 260 mm
- Dimension H in mm: 359 mm
- Weight: 27.5 kg | 12 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 50 dBA
- NRTL certification: No
- Rated mains voltage range 1: 100-120 V
- Mains frequency 1: 50-60 Hz
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
