- Final Pressure: 2 mbar
- Maximum Pumping Speed (50 Hz): 6.5 m3/h
- Inlet: DN 25 KF
- Outlet: 10 mm hose nozzle
Shopping Cart ( )
Vacuubrand MD 8 T Diaphragm Pump, 220 V Only, 50/60 Hz, 696424
Condition:
Discontinued
Item#:PN16037
Mfr Part#:696424
Manufacturer:Vacuubrand
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:

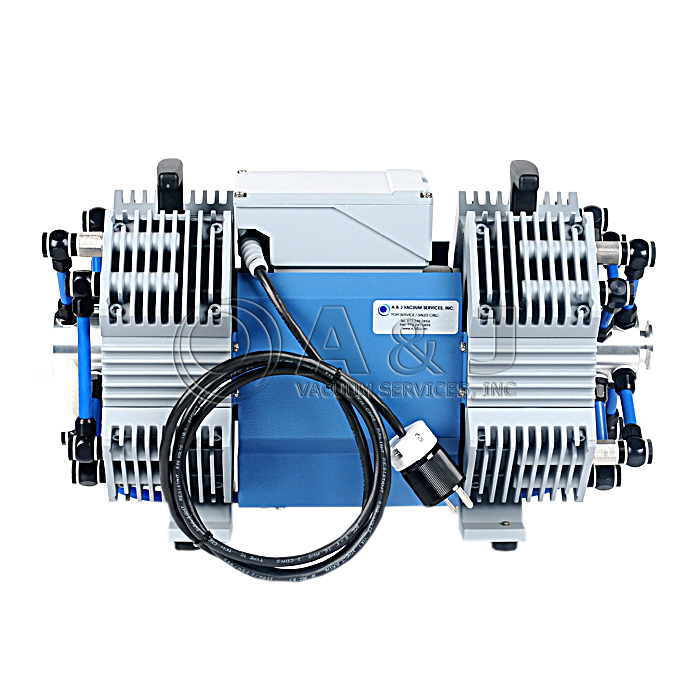

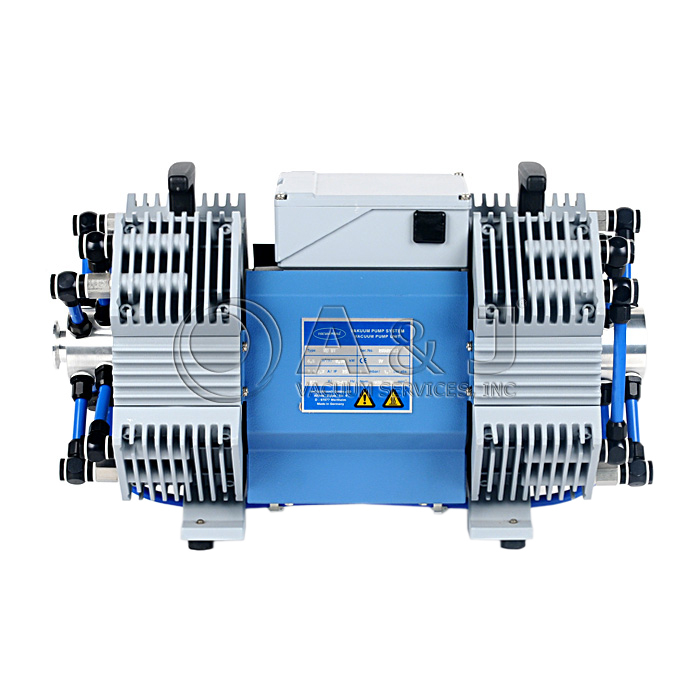

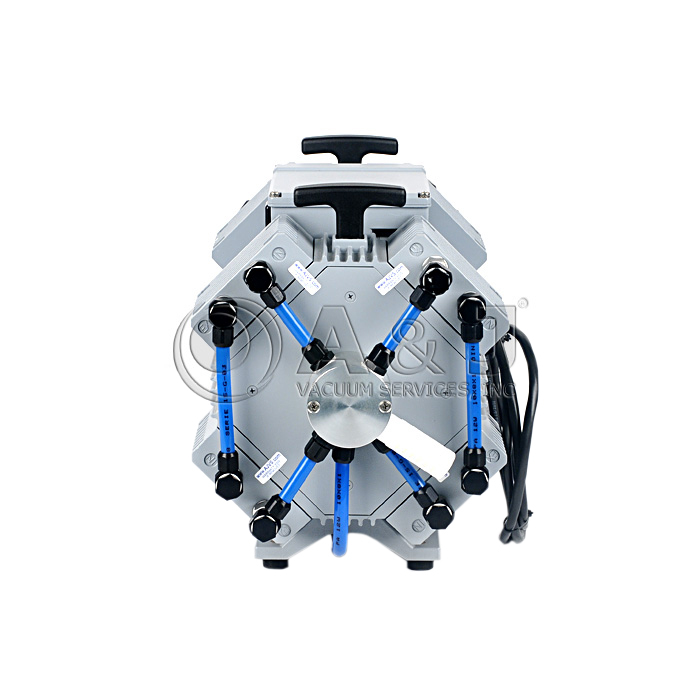

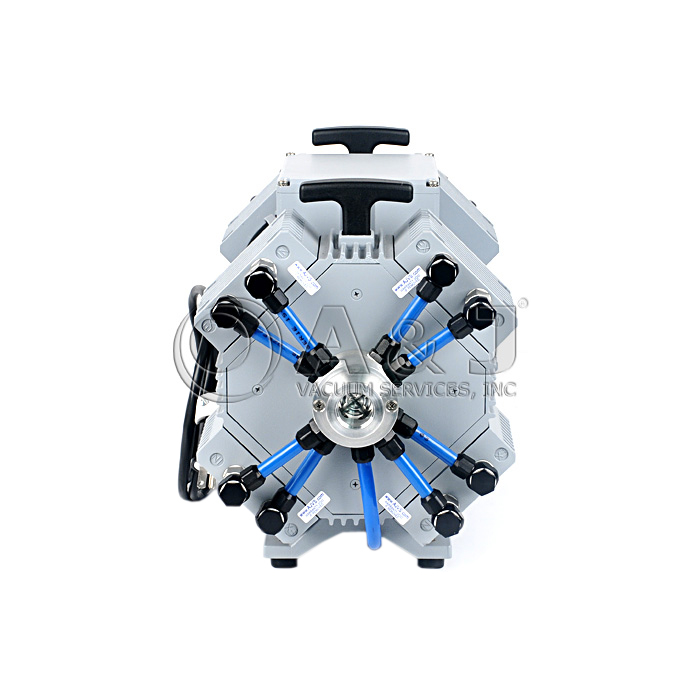

Vacuubrand MD8T Diaphragm Dry Vacuum Pump, 220 V Only, 50/60 Hz, 696424
*THIS PRODUCT IS NEW - OPENED, OUT OF THE BOX*
Vacuubrand MD8T Overview:
Vacuubrand Diaphragm Pumps are perfect for many applications. They are oil-free, whisper quiet, and require little service. Diaphragms have especially long lives and hermetically seal the drive space from the pumping chamber to protect mechanical parts from corrosion.
The pumps achieve their distinctively high performance from high pumping chamber volume relavtive to the minimal dead space. The pumps operate absolutely oil free and do not have any sliding components in the gas path.

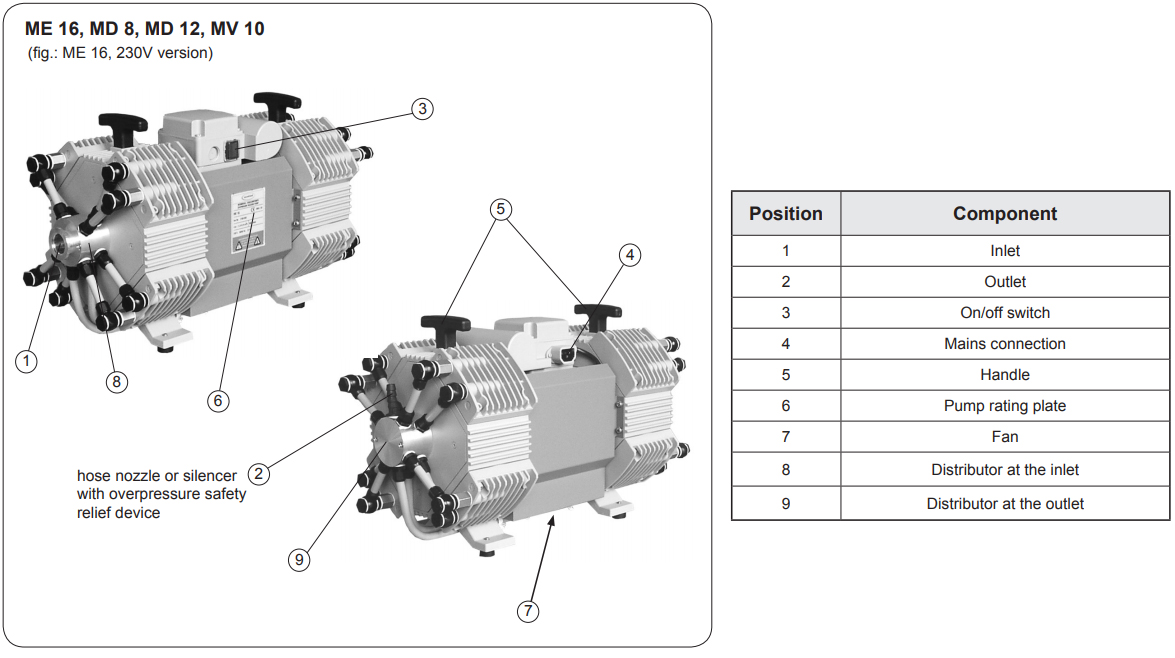

Vacuubrand MD8T Graph:
Click Here for Vacuubrand MD 8T Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand MD8T Diaphragm Dry Vacuum Pump, 220 V Only, 50/60 Hz, 696424
*THIS PRODUCT IS NEW - OPENED, OUT OF THE BOX*

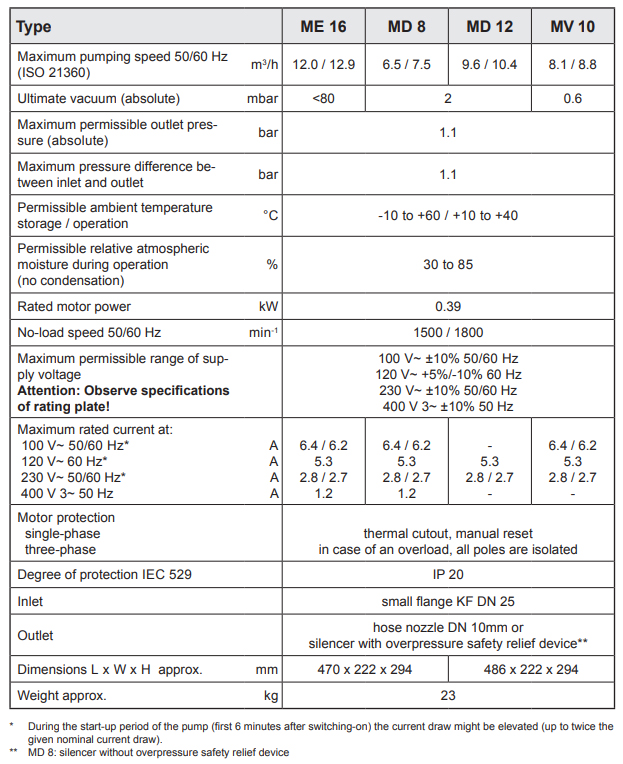

Vacuubrand MD8T Technical Data:
Click Here for Vacuubrand MD 8T Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
AJVS_Vacuubrand_MD_8_T_Diaphragm_Pump_Sales_and_Service.pdf
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
