- Final Pressure: 1.5 mbar
- Pumping Speed: 0.7 cfm (50 Hz)
- Max. Back Pressure: 1.1 bar
- Rated Motor Speed: 1500 min-1 (50 Hz)
Shopping Cart ( )
Vacuubrand MD1 Diaphragm Vacuum Pump, Ultimate Pressure 1.5 mbar, Pumping Speed 0.7 cfm, 120 V, 60 Hz, Vacuubrand MD 1 696073
Condition:
Remanufactured
Call us for Availability
Item#:PN16460
Mfr Part#:696073
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Vacuubrand MD1 Diaphragm Vacuum Pump, Ultimate Pressure 1.5 mbar, Pumping Speed 0.7 cfm, 120 V, 60 Hz, Vacuubrand MD 1 696073
Vacuubrand MD1 Overview:
The Vacuubrand MD1 diaphragm pump is an excellent choice for oil-free evacuation and pumping of non-corrosive gases down to 1.5 mbar ultimate vacuum.
The three-stage Vacuubrand MD1 design with precisely guided flat diaphragms provides outstanding pumping speed even close to the ultimate vacuum, especially when compared with similarly rated two-stage diaphragm pumps.
The Vacuubrand MD1 is an ultra-low vibration pump with very long diaphragm lilfetimes and stable ultimate vacuum documented with years of testing.
With a flow path consisting of aluminum and selected plastics (diaphragms and valves made of PTFE/FKM and FKM, respectively) the pumps are suitable for a wide range of applications with non-corrosive gases.
Vacuubrand MD1 Features:
- Contamination-free pumping and evacuation
- High flow rate even near ultimate vacuum
- Excellent ultimate vacuum
- Whisper quiet and ultra-low vibration
- Proven long diaphragm life, maintenance-free drive system

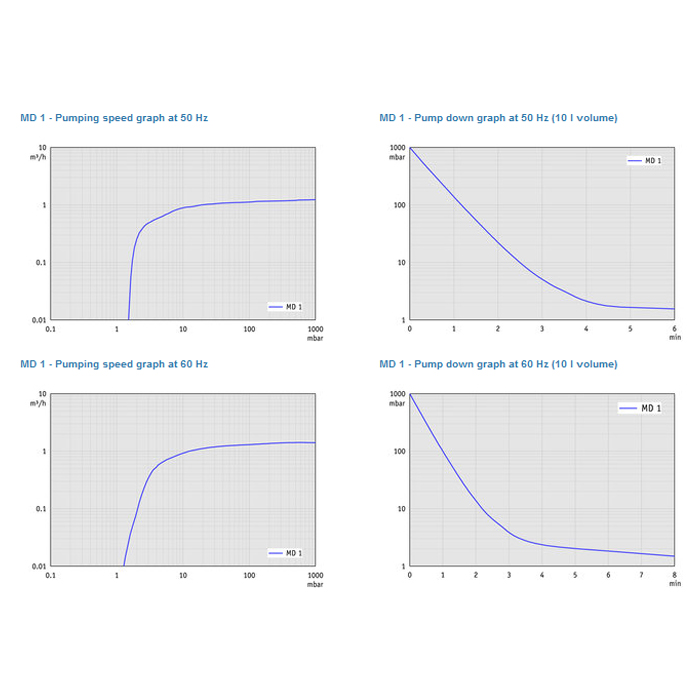

Vacuubrand MD 1 Pumping Speed

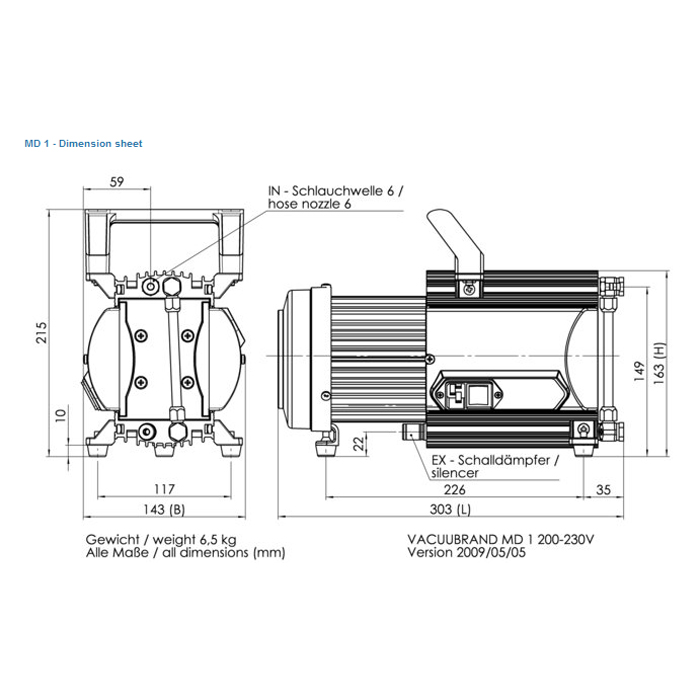

Vacuubrand MD 1 Dimensions
Click Here for Vacuubrand MD 1 Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Vacuubrand MD1 Diaphragm Vacuum Pump, Ultimate Pressure 1.5 mbar, Pumping Speed 0.7 cfm, 120 V, 60 Hz, Vacuubrand MD 1 696073
Vacuubrand MD1 Technical Data:
| Technical data | Unit | MD 1 |
|---|---|---|
| Number of heads / stages | 4 / 3 | |
| Max. pumping speed at 50/60 Hz | m3/h | 1.2 / 1.4 |
| Max. pumping speed at 50/60 Hz | cfm | 0.7 / 0.8 |
| Ultimate vacuum (abs.) | mbar/torr | 1.5 / 1.1 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Hose nozzle DN 6 mm | |
| Outlet connection | Silencer / G1/8" | |
| Rated motor power | kW | 0.08 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 42 | |
| Dimensions (L x W x H) | mm | 303 x 143 x 163 |
| Weight | kg | 6.5 |
| Noise level at 50 Hz, typ. | dBA | 40 |
| ATEX conformity (only 230V) | II 3/- G IIC T3 X Internal Atm. only | |
| Items supplied | Pump completely mounted, ready for use, with manual. | |
| Accessories | Rubber vacuum tubing DN 6 mm (20686000) Small flange KF DN 16 / G1/8" (20637425) |
Click Here for Vacuubrand MD 1 Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
