Vacuubrand ME 4C NT +2AK Chemistry Diaphragm Pump, 100-120V / 50-60Hz, US Power Cord, 2.3 CFM, 70 mbar, 2614080
Condition:
New
Item#:PN19589
Mfr Part#:2614080
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Vacuubrand ME 4C NT +2AK Chemistry Diaphragm Pump, 100-120V / 50-60Hz, US Power Cord, 2.3 CFM, 70 mbar, 2614080
Vacuubrand ME 4C NT +2AK Features:
- Laboratory quiet with very low vibration
- Excelent for parallel operations of several vacuum ports
- High performance
- High chemical resistance
- Long diaphragm life
- Perfect for lab vacuum
ME 4C NT +2AK / 2614080 Overview:
Vacuubrand ME 4C NT is the one stage chemical resistant version diaphragm pump with exellent performance and continuous dry vacuum pumping of gases and vapors at low vacuum requirement.
The separator at the inlet (AK) is made of glass with protective coating and retains particles and liquid droplets. The separator at the outlet collects condensate, avoids condensate backflow towards the pump and makes the pump whisper-quiet.
ME 4C NT New Technology pumps are ideal for pumping vacuum ovens, several vacuum manifolds, filtration process.
One Stage design provides the combination of low ultimate vacuum and high pumping speed.
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Vacuubrand ME 4C NT +2AK Chemistry Diaphragm Pump, 100-120V / 50-60Hz, US Power Cord, 2.3 CFM, 70 mbar, 2614080
Vacuubrand ME 4C NT +2AK Technical Data:
| Number of heads / stages | 2 / 1 | |
| Max. pumping speed at 50/60 Hz | m3/h | 3.9 / 4.3 |
| Max. pumping speed at 50/60 Hz | cfm | 2.3 / 2.5 |
| Ultimate vacuum (abs.) | mbar/torr | 70 / 52 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Rated motor power | kW | 0.18 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |

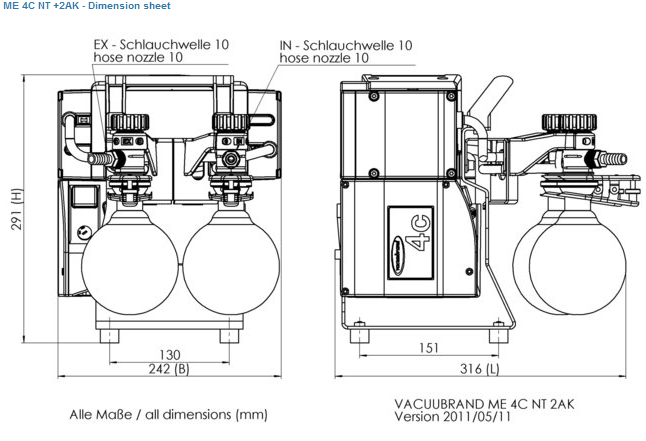

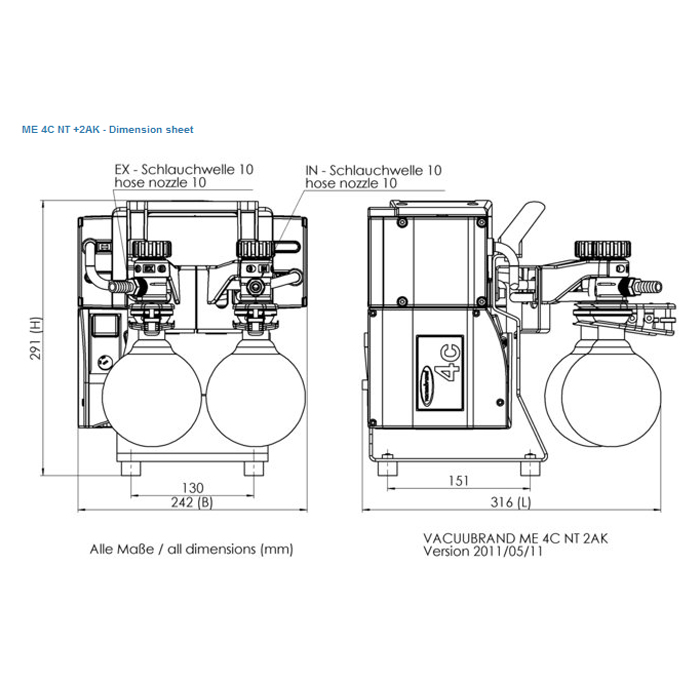

| Dimensions (L x W x H) | mm | 254 x 243 x 198 |
| Weight | kg | 11.1 |
| Noise level at 50 Hz, typ. | dBA | 45 |
| NRTL certification | Canada and the USA | |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pump completely mounted, ready for use, with manual. |
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
