- Pumping Speed: 2.5 m3/h (60 Hz)
- Ultimate pressure: 3 x 10-1 mbar
- Inlet flange: DN 16 ISO-KF
- Outlet flange: Hose nozzle
Shopping Cart ( )
Vacuubrand RE2.5 Single Stage High Performance Vacuum Pump, 1.6 CFM, RE2.5, 100-115 VAC / 200-230 VAC, 697153 / 20697153
Condition:
New
Item#:PN19744
Mfr Part#:697153 / 20697153
Manufacturer:BRANDTECH / Vacuubrand
Features:
Vacuubrand RE2.5 Single Stage High Performance Vacuum Pump, 1.6 CFM, RE2.5, 100-115 VAC / 200-230 VAC, 697153 / 20697153
Vacuubrand RE 2.5 Overview:
The Vacuubrand RE 2.5 dry vacuum rotary vane pumps. The max pumping speed up to 1.6 CFM at 60 Hz. Vacuubrand (20697153) has the nominal rotation speed 1800 min-1 at 60 Hz. The weight of Vacuubrand RE 2.5 is 10.2 kg. Noise level Vacuubrand RE 2.5 is 43 dB at 50 Hz.
The one-stage pumps RE 2.5 are high-performance rotary vane pumps with extra compact design and low weight. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium gas flow rate.
Vacuubrand RE 2.5 Features:
- Single Stage, High Performance Rotary Vane Pump
- High flow rates even at vacuum levels approching ultimate vacuum
- High water vapor tolerance due to efficient gas ballast
- Very good ultimate pressure even with gass ballast
- Vacuum tight at switch off; external andi-suckback valve not needed
- Large oil volume: long intervals between oil changes
- Ease of maintenance due to telescopic design
Vacuubrand RE 2.5 Applications:
Typical applications for Vacuubrand RE 2.5 include lypohilization, vacuum distilation and evacuation of small valumes, u-focus, xray tubes or filling with purge gases. Vacuubrand RE 2.5 with PC 3 is a perfect choice for applications requiring special protectionof pump and enviroment.

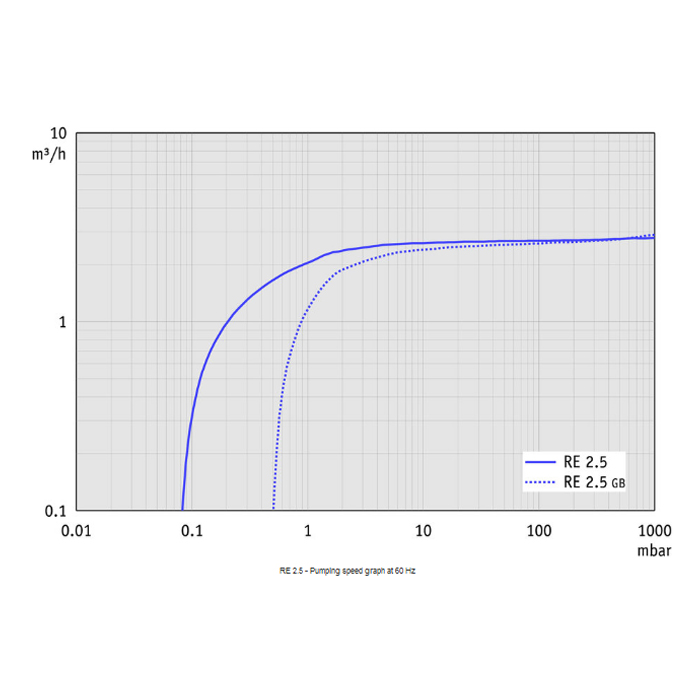

Vacuubrand RE 2.5 Pumping Speed:

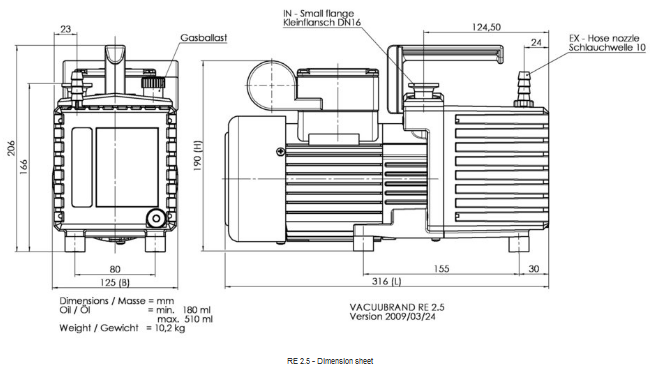

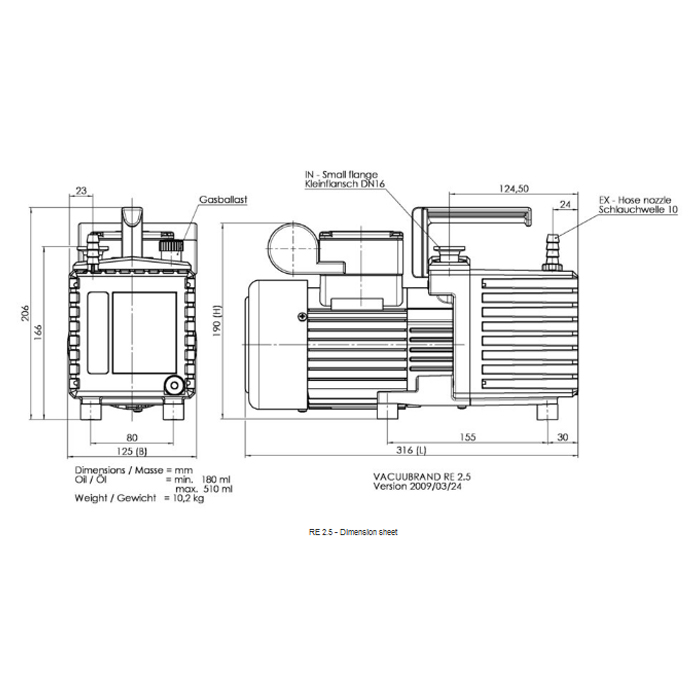

Vacuubrand RE 2.5 Dimensions:
Click Here for Vacuubrand RE Series Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Vacuubrand RE2.5 Single Stage High Performance Vacuum Pump, 1.6 CFM, RE2.5, 100-115 VAC / 200-230 VAC, 697153 / 20697153
Vacuubrand RE 2.5 Technical Data:
| Technical data | Unit | RE 2.5 |
|---|---|---|
| Number of stages | 1 | |
| Max. pumping speed at 50/60 Hz | m3/h | 2.3 / 2.8 |
| Max. pumping speed at 50/60 Hz | cfm | 1.4 / 1.6 |
| Ultimate partial vacuum (abs.) | mbar | 3 x 10-1 |
| Ultimate vacuum (abs.) | mbar/torr | 3 x 10-1 / 2.3 x 10-1 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 8 x 10-1 / 6 x 10-1 |
| Water vapor tolerance with gas ballast | mbar | 40 |
| Ambient temperature range (operation) | °C | 12 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Oil capacity (B-Oil) min./max. | l | 0.18 / 0.51 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Small flange KF DN 16 | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Rated motor power | kW | 0.18 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |
| Dimensions (L x W x H) | mm | 316 x 125 x 190 |
| Weight | kg | 10.2 |
| Noise level at 50 Hz, typ. | dBA | 43 |
| Items supplied | Pump oil filled and completely mounted, ready for use, with manual. |
Click Here for Vacuubrand RE Series Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
