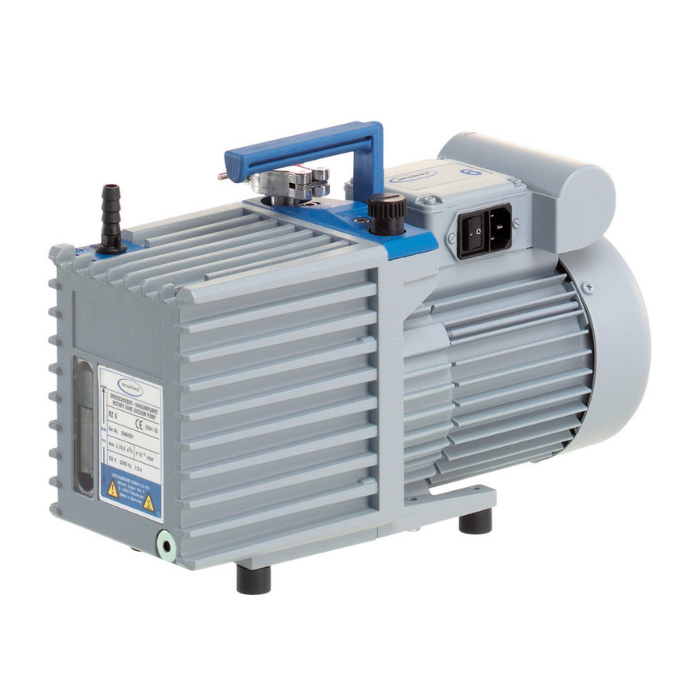

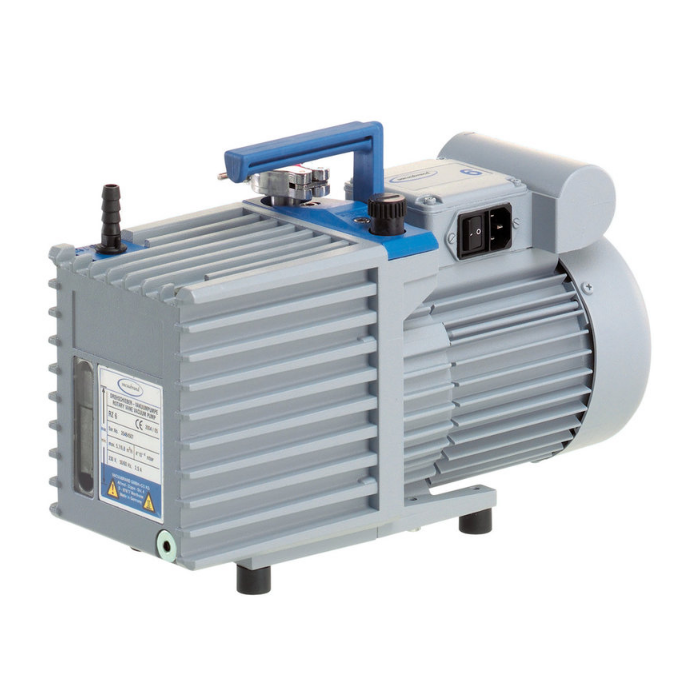

RE 6 / RZ 6 - Vacuubrand Rotary Vane Pumps

The Vacuubrand RE 6 dry vacuum rotary vane pumps. The max pumping speed up to 4 CFM at 60 Hz. Vacuubrand (20697163) has the nominal rotation speed 1800 min-1 at 60 Hz. The weight of Vacuubrand RE 6 is 15.4 kg. Noise level Vacuubrand RE 6 is 50 dB at 50 Hz.

These powerful rotary vane pumps feature an unusually compact design and low weight for pumps of this capacity. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium to increased gas flow rate.

Vacuubrand RE 6 Features:

Dual Stage, High Performance Rotary Vane Pump
High flow rates even at vacuum levels approching ultimate vacuum
High water vapor tolerance due to efficient gas ballast
Very good ultimate pressure even with gass ballast
Vacuum tight at switch off; external andi-suckback valve not needed
Large oil volume: long intervals between oil changes
Ease of maintenance due to telescopic design

Vacuubrand RE 6 Applications:

Typical applications for Vacuubrand RE6 include lypohilization, vacuum distilation and evacuation of small valumes, u-focus, xray tubes or filling with purge gases. Vacuubrand RE6 with PC 3 is a perfect choice for applications requiring special protectionof pump and enviroment.

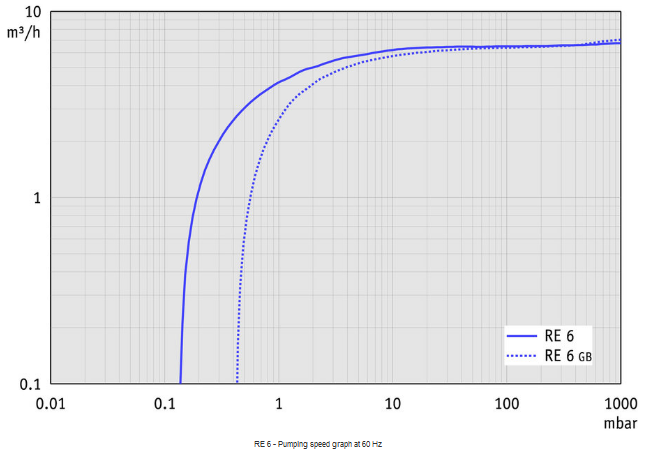

Vacuubrand RE 6 Pumping Speed:

Vacuubrand RE 6 Pumping speed, 697163, 20697163

Vacuubrand RE 6 Dimensions:

Vacuubrand RE 6 dimensions, 697163, 20697163

Click Here for Vacuubrand RE Series Manual

A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Condition: New

Vacuubrand RZ6 Dual Stage High Performance Vacuum Pump, 4 CFM, RZ6, 100-120 VAC / 200-230 VAC, 20698136

Item#: PN19747 Mfr Part#: 20698136 Manufacturer: Vacuubrand

PRICE: $4,300.00

WEB SAVINGS: $644.01

YOU PAY: $3,655.99

Vacuubrand RZ6 Dual Stage High Performance Vacuum Pump, 4 CFM, RZ6, 100-120 VAC / 200-230 VAC, 20698136

Vacuubrand RZ 6 Overview:

The Vacuubrand RZ 6 dry vacuum rotary vane pumps. The max pumping speed up to 4 CFM at 60 Hz. Vacuubrand (20698136) has the nominal rotation speed 1800 min-1 at 60 Hz. The weight of Vacuubrand RZ 6 is 16.4 kg. Noise level Vacuubrand RZ 6 is 50 dB at 50 Hz.

These powerful rotary vane pumps feature a particularly compact design and low weight for pumps of this capacity. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium to increased gas flow rate. The PC 3 rotary vane pumping unit, with GKF 1000i cold trap at the inlet, helps the pump to handle large amounts of condensable vapors. The PC 3 pumping unit is compact, user-friendly and well-arranged, with an oil mist filter at the outlet, a valve and a T-connection for a gauge. Various packages including pump, oil mist filter, etc. are available.

Vacuubrand RZ 6 Features:

Dual Stage, High Performance Rotary Vane Pump
High flow rates even at vacuum levels approching ultimate vacuum
High water vapor tolerance due to efficient gas ballast
Very good ultimate pressure even with gass ballast
Vacuum tight at switch off; external andi-suckback valve not needed
Large oil volume: long intervals between oil changes
Ease of maintenance due to telescopic design

Vacuubrand RZ 6 Applications:

Typical applications for Vacuubrand RZ6 include lypohilization, vacuum distilation and evacuation of small valumes, u-focus, xray tubes or filling with purge gases. Vacuubrand RZ6 with PC 3 is a perfect choice for applications requiring special protectionof pump and enviroment.
