Vacuubrand RC6 Chemistry Hybrid Vacuum Pump, 4.1 CFM,  RC 6, 120 VAC - 60Hz, 20798563  / 698563 / 20698563

Vacuubrand RC 6 Overview:

The Vacuubrand RC 6 dry vacuum rotary vane pumps. The max pumping speed up to 4.1 CFM at 60 Hz. Vacuubrand (20698563) has the nominal rotation speed 1800 min-1 at 60 Hz. The weight of Vacuubrand RC 6 is 24.2 kg. Noise level Vacuubrand RC 6 is 50 dB at 50 Hz.

RC 6 is a four stage vacuum pump consisting of an oil sealed two stage rotary vane vacuum pump with a series connected two stage diaphragm dry pump. The two units are mounted on a common shaft are connected directly to the drive motor. The dry running compressor type diaphragm pump evacuates the headspace of the oil reservoir of the rotary vane pump, thus considerably increasing the latter's maximum vapor inlet pressure and chemical resistance.

Vacuubrand RC 6 Features:

• Dual Stage, High Performance Rotary Vane Pump
• High flow rates even at vacuum levels approching ultimate vacuum
• High water vapor tolerance due to efficient gas ballast
• Very good ultimate pressure even with gass ballast
• Vacuum tight at switch off; external andi-suckback valve not needed
• Large oil volume: long intervals between oil changes
• Ease of maintenance due to telescopic design

Vacuubrand RC 6 Applications:

Typical applications for Vacuubrand RC6 include lypohilization, vacuum distilation and evacuation of small valumes, u-focus, xray tubes or filling with purge gases. Vacuubrand RC6 with PC 3 is a perfect choice for applications requiring special protectionof pump and enviroment.

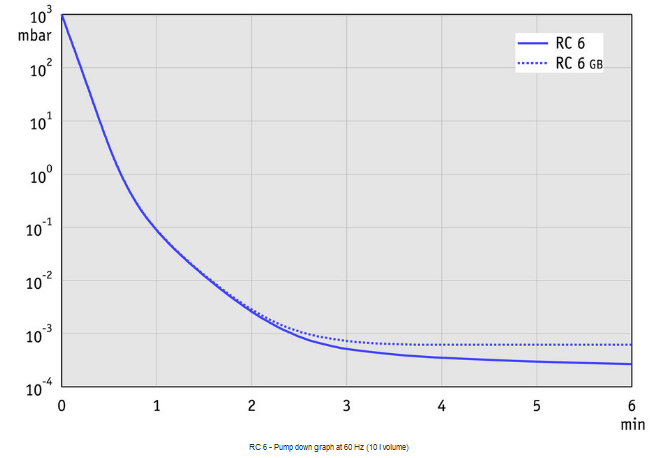

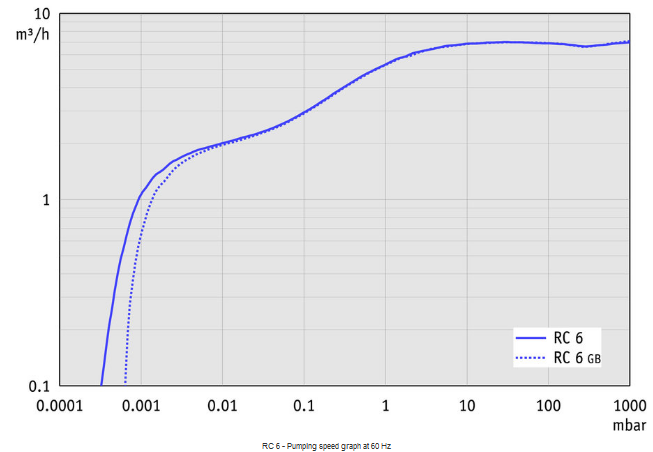

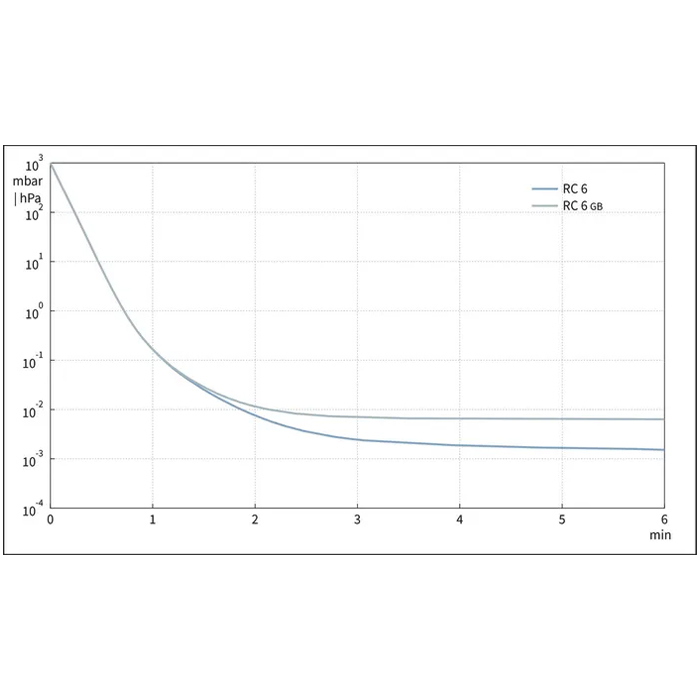

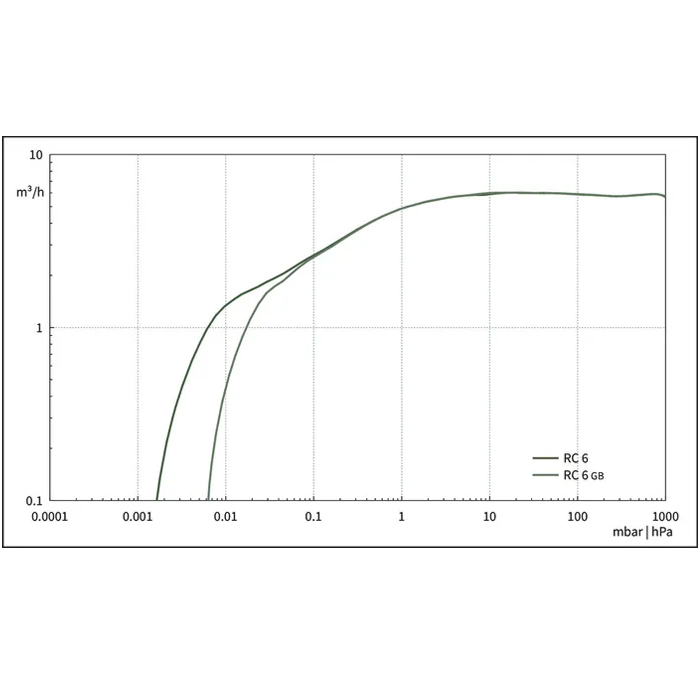

Vacuubrand RC 6 Pumping Speed:

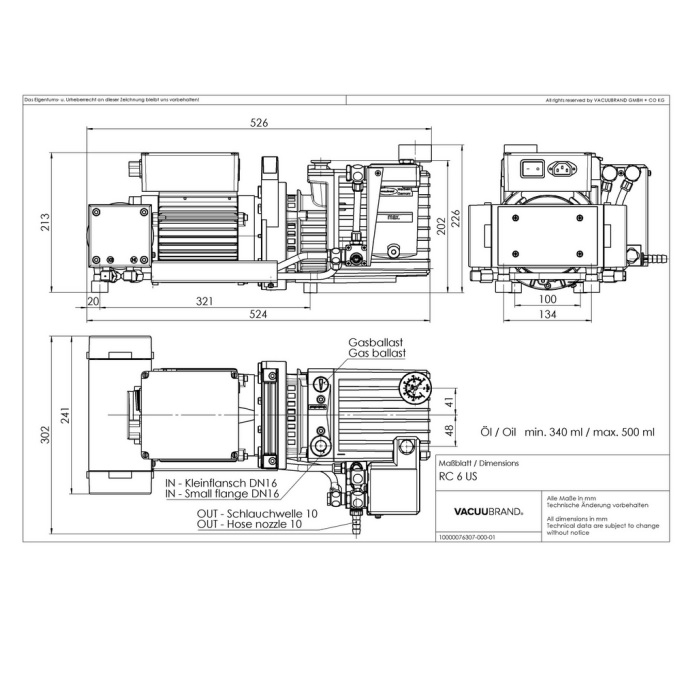

Vacuubrand RC 6 Dimensions:

Click Here for Vacuubrand RC Series Manual

A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
