Found 2 products
Item#: PN19744 Mfr Part#: 697153 / 20697153 Manufacturer: Vacuubrand
PRICE: $2,825.00
WEB SAVINGS: $535.00
YOU PAY: $2,290.00

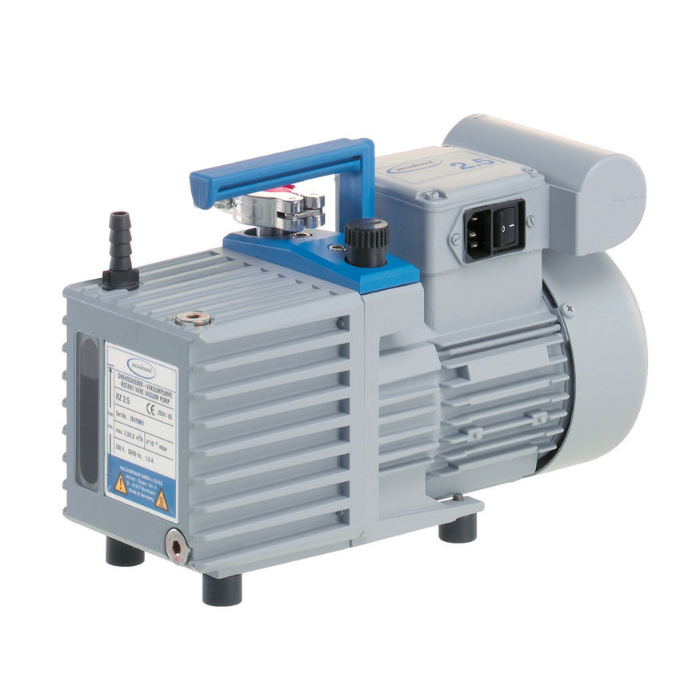

Vacuubrand RE2.5 Single Stage High Performance Vacuum Pump, 1.6 CFM,  RE2.5, 100-115 VAC / 200-230 VAC, 697153 / 20697153



Vacuubrand RE 2.5 Overview:


The Vacuubrand RE 2.5 dry vacuum rotary vane pumps. The max pumping speed up to 1.6 CFM at 60 Hz. Vacuubrand (20697153) has the nominal rotation speed 1800 min-1 at 60 Hz. The weight of Vacuubrand RE 2.5 is 10.2 kg. Noise level Vacuubrand RE 2.5 is 43 dB at 50 Hz.

The one-stage pumps RE 2.5 are high-performance rotary vane pumps with extra compact design and low weight. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium gas flow rate.



Vacuubrand RE 2.5 Features:


  • Single Stage, High Performance Rotary Vane Pump
  • High flow rates even at vacuum levels approching ultimate vacuum
  • High water vapor tolerance due to efficient gas ballast
  • Very good ultimate pressure even with gass ballast
  • Vacuum tight at switch off; external andi-suckback valve not needed
  • Large oil volume: long intervals between oil changes
  • Ease of maintenance due to telescopic design



Vacuubrand RE 2.5 Applications:


Typical applications for Vacuubrand RE 2.5 include lypohilization, vacuum distilation and evacuation of small valumes, u-focus, xray tubes or filling with purge gases. Vacuubrand RE 2.5 with PC 3 is a perfect choice for applications requiring special protectionof pump and enviroment.



Vacuubrand RE 2.5 Pumping Speed:


Vacuubrand RE 2.5 Pumping speed, 697153, 20697153



Vacuubrand RE 2.5 Dimensions:


Vacuubrand RE 2.5 dimensions, 697153, 20697153


Click Here for Vacuubrand RE Series Manual


A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New
Item#: PN19745 Mfr Part#: 20798126 Manufacturer: Vacuubrand
PRICE: $3,500.00
WEB SAVINGS: $270.00
YOU PAY: $3,230.00

Vacuubrand RZ 2.5 Dual Stage, Dual Voltage High Performance Vacuum Pump, 1.7 CFM  RZ 2.5, 120 VAC - 60Hz, 20798126



This is the current revision of the previous version p/n 20698126



Vacuubrand RZ 2.5 Overview:


The Vacuubrand RZ 2.5 dry vacuum rotary vane pumps. The max pumping speed up to 1.6 CFM at 60 Hz. Vacuubrand (20698126) has the nominal rotation speed 1800 min-1 at 60 Hz. The weight of Vacuubrand RZ 2.5 is 11.4 kg. Noise level Vacuubrand RZ 2.5 is 43 dB at 50 Hz.

The one-stage RE 2.5 and two-stage RZ 2.5 are high-performance rotary vane pumps with extra compact design and low weight. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium gas flow rate. The rotary vane pumping unit PC 3 with cold trap (GKF 1000i) at the inlet helps the pump to handle larger volumes of condensable vapors. The pumping unit is compact, user-friendly, and well-arranged, with oil mist filter at the outlet, a valve, and a T-connection for a gauge. The RZ 2.5 is also available combined with the oil mist filter (FO) and the VS 16 valve as a package.



Vacuubrand RZ 2.5 Features:


  • Single Stage, High Performance Rotary Vane Pump
  • High flow rates even at vacuum levels approching ultimate vacuum
  • High water vapor tolerance due to efficient gas ballast
  • Very good ultimate pressure even with gass ballast
  • Vacuum tight at switch off; external andi-suckback valve not needed
  • Large oil volume: long intervals between oil changes
  • Ease of maintenance due to telescopic design



Vacuubrand RZ 2.5 Applications:


Typical applications for Vacuubrand RZ 2.5 include lypohilization, vacuum distilation and evacuation of small valumes, u-focus, xray tubes or filling with purge gases. Vacuubrand RE 2.5 with PC 3 is a perfect choice for applications requiring special protectionof pump and enviroment.



Vacuubrand RZ 2.5 Pumping Speed:


Vacuubrand RZ 2.5 Pumping speed, 698126, 20698126



Vacuubrand RZ 2.5 Dimensions:


Vacuubrand RZ 2.5 dimensions, 698126, 20698126


Click Here for Vacuubrand RZ Series Manual


A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New
