- Inlet flange: DN 100 CF
- Outlet flange: DN25NW
- Mass: 6.5kg
- B75312000
Shopping Cart ( )

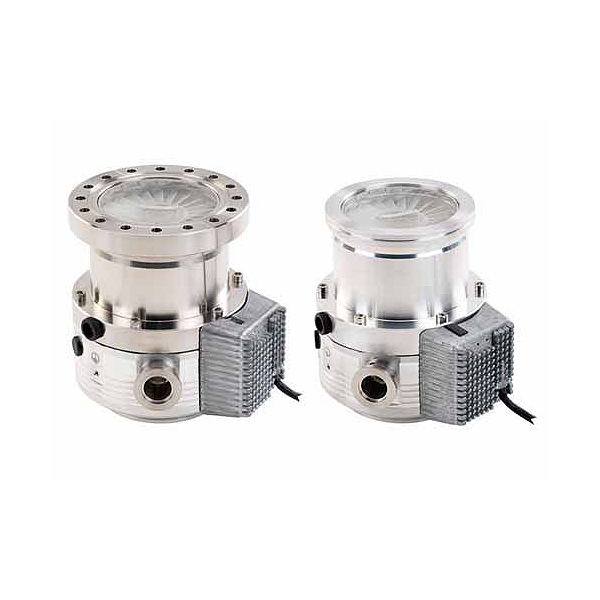

Edwards EXT255DX Turbo Pump, DN100CF, B75312000
Condition:
Remanufactured
Call us for Availability
Item#:PN00366
Mfr Part#:B75312000
Manufacturer:Edwards Vacuum
Price upon request
CONTACT US
Features:
Edwards EXT255DX Turbo Pump, DN100CF, B75312000
Edwards EXT255DX Features:
- Compatible with TIC turbo instrument controller
- Multiple communication modes available including parallel mode, which allows traditional control signal interface and serial mode, which allows RS232 interface
- Numerous user configurable parameters via RS232 interface including vent valve control settings, normal speed indication, stand-by running speed, programmable power settings, power consumption and pump temperature
- Enhanced monitoring capabiltiy including pump speed, power and temperature
- Power and limit setting: you can select the maximum power that will be generated by the pump
- Standby Speed: the pump otational speed is lower than the full rotational speed
- Timer: automatically started once the pump is turned on; operates within the drive electronics
- Analogue output: used by the Podule to monitor the following parameters:
- pump rotational speed
- motor power
- motor temperature
- controller temperature
- Automatic Vent Options, such as:
- hard vent (rotational speed drops below 50%)
- controlled vent (hard vent below 50%)
- hard vent immediately
- Normal Speed Setting: anywhere from 50%-100% of full rotational speed
- Electronic Braking: disabled by default, may be enabled in order to reduce the deceleration time and recover energy.
EXT255DX / B75312000 Overview:
The Edward EXT225DX Turbo Pump offers the technology of a ceramic mechanical lower bearing, as well as a permanent dry mangnetic upper bearing and Holweck drag stage. The EXT225DX is equipped with an on-board 24V controller which allows parallel and serial connection compatible with Edwards TAG and TIC controllers.
A&J Vacuum Services, Inc. repairs, rebuilds and services all Edwards Turbo Pumps along with all other vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Edwards EXT255DX Turbo Pump, DN100CF, B75312000

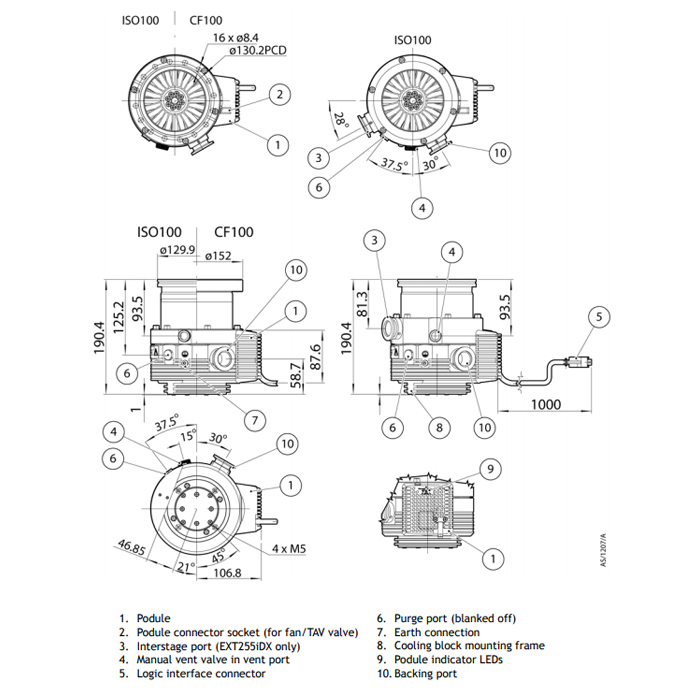

Edwards EXT255DX Technical Data:
A&J Vacuum Services, Inc. repairs, rebuilds and services all Edwards Turbo Pumps along with all other vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
Item#:PN18664
Mfr Part#:B58051001
Condition: In Stock
Demo
In Stock
$235.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
