- Input Power: 1200 VA
- Output Power: 420 W maximum
- Operating Temperature; 0 to +40 *C
- Weight: 12 kg
Shopping Cart ( )
Varian V 700 ICE Turbo Pump Controller, 120 VAC, 9699546, (V700)
Condition:
Remanufactured
In Stock
Item#:PN07173
Mfr Part#:9699546
Manufacturer:Agilent Technologies / Varian
Features:
Varian V 700 ICE Turbo Pump Controller, 120 VAC, 9699546, (V700)
Varian V 700 ICE Overview:
The Varian Turbo-V 700 ICE series controllers are microprocessor-controlled, solid-state, frequency converters with self-diagnostic and self-protection features.
The controllers drive (within ten steps) the Turbo-V 700 ICE pump during the starting phase by controlling the voltage and current respect to the speed reached by the pump. They incorporate all the facilities required for the automatic operation of the Turbo-V 700 ICE pump series.
Remote start/stop commands, pump status signals, forepump start/stop commands, interlock control signals (for pressure switch, water flow switch), heater jacket control signals, flow meter control signals and purge valve management signals are provided via auxiliary connectors.
The controller is available in two versions:
- Model 969-9447 (220 Vac, 50-60 Hz)
- Model 969-9547 (120 Vac, 50-60 Hz)

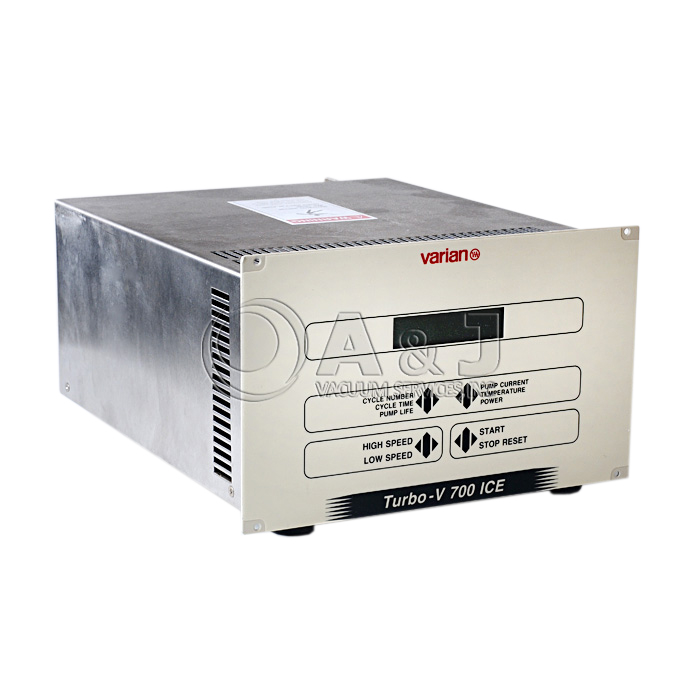

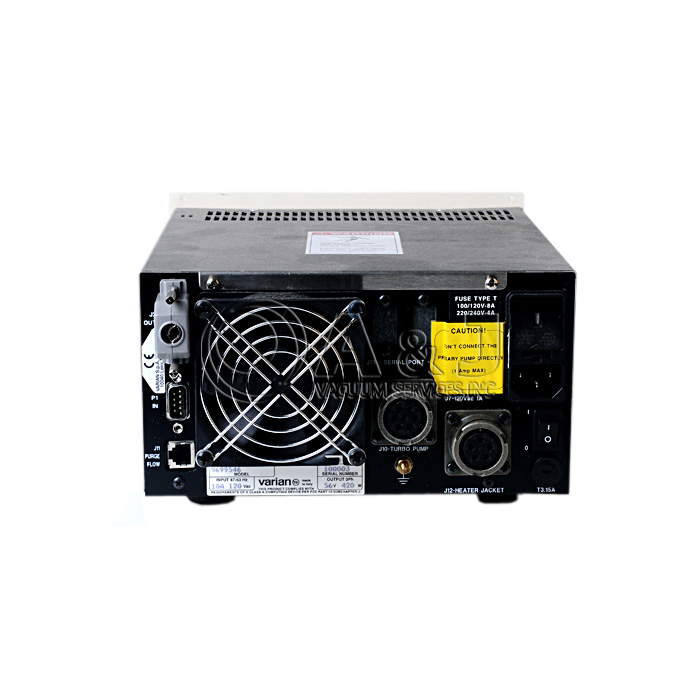

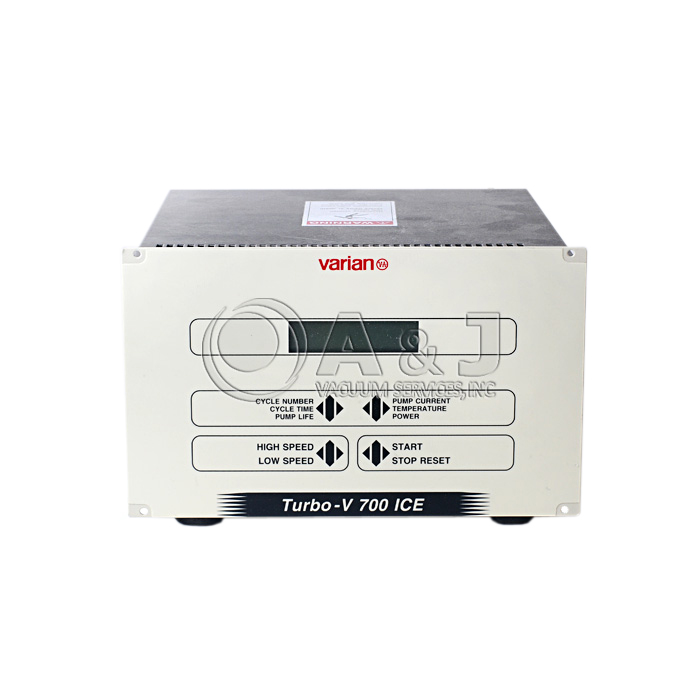

The models are provided with a front panel with an LCD alphanumeric display to indicate the operating conditions/parameters of the Turbo-V pump and a keyboard, and a rear panel with input/output connectors.
The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:
- Power transformer
- Front panel display and keyboard
- Rear panel with input/output connectors
- PCB including: power supply analog and input/output section, microprocessor and digital section, display and keyboard circuits. The power supply converts the single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump.
The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.
Moreover, it manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation. The heater jacket and flow meter are also handled.
An EEPROM internal to the microprocessor is used to store pump operating parameters and the input/output programmed information.
The controller can be operated via:
- Front panel switches
- Remote signals via rear panel connectors
- RS 232/485/422 serial link (option)
Varian V 700 ICE Dimensions:
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Click Here for Varian V 700 ICE Manual
A&J Vacuum Services offers full repair/service of Varian Pumps, along with all other brands offered on our website. AJVS also services Varian Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Varian V 700 ICE Turbo Pump Controller, 120 VAC, 9699546, (V700)
Varian V 700 ICE Technical Data:
Click Here for Varian V 700 ICE Manual
A&J Vacuum Services offers full repair/service of Varian Pumps, along with all other brands offered on our website. AJVS also services Varian Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Item#:PN07172
Mfr Part#:9699952
Condition: Out of Stock
New
$669.50
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
