- High Maximum Pumping Speed of 560 Cubic Meters/Hour
- Frictionless Interior Surface Acts to Prevent Particle Contamination
- High Performance and Reliability Relative to Power Consumption
- Utilizes DN 100 ISO-KF Inlet Flange; DN 40 ISO-KF Outlet Flange
Shopping Cart ( )
Adixen Pfeiffer ACG 600 G Dry Vacuum Pump, 200 V to 480 V, 50/60 Hz, with Integrated Gas Ballast, 2000035808 / ACG600GSP11111
Condition:
New
Item#:PN20080
Mfr Part#:2000035808 / ACG600GSP11111
Manufacturer:Adixen / Alcatel
Features:
Adixen Pfeiffer ACG 600 G Dry Vacuum Pump, 200 V to 480 V, 50/60 Hz, with Integrated Gas Ballast, 2000035808 / ACG600GSP11111
Pfeiffer ACG 600G Industrial Dry Vacuum Pump - Product Overview:
Based on the multi-stage Roots technology, the Pfeiffer Vacuum ACG 600 G Dry Vacuum Pump is the result of over twenty years of experience in manufacturing dry vacuum pumping solutions. ACG 600 G pumping groups provide all the benefits of clean and dry vacuum whenever particulate or oil contamination is an issue. A specific version is also available for the pump down of large chamber volumes > 1 m3.
Pfeiffer ACG 600G Features:
- For higher pumping speed requirement, the ACG 600 G pumping group combines the ACP 120 G dry pump with a Roots pump 600 m3/h
- High Maximum Pumping Speed of 560 Cubic Meters/Hour (560 m^3/h)
- Equipped with a purge gas port for slightly corrosive processes or for pumping down condensable media
- Includes Optional Large Volume Option
- Cleanliness: No risk of particulate contamination due to frictionless and oil-free pumping module
- High Performance: High pumping speed, low power consumption, low ultimate pressure, resistant to harsh cycling
- High Reliability: Based on multi-stage Roots technology, resulting in optimum up-time
- Extended life time between maintenance: Typical four years interval between complete overhaul on clean applications, simple bearing replacement

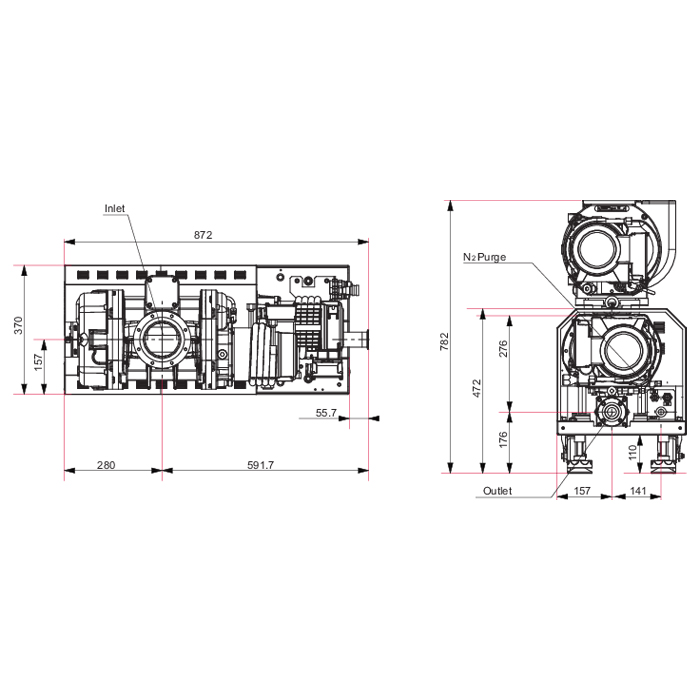

Pfeiffer ACG 600G Dimensions:
Click Here for Pfeiffer ACG 600G Manual
A&J Vacuum services and repairs Pfeiffer ACG 600 G Industrial Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Dry Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Adixen Pfeiffer ACG 600 G Dry Vacuum Pump, 200 V to 480 V, 50/60 Hz, with Integrated Gas Ballast, 2000035808 / ACG600GSP11111
Pfeiffer ACG 600G Technical Data:
| Ambient Temperature | 5-40 °C | 41-104 °F | 278-313 K |
| Continuous Inlet Flow, Maximum | 60 slpm (0 °C) |
| Cooling Method | Water |
| Cooling Water Flow | Minimum: 60 l/h |
| Cooling Water Flow, Minimum | 1 l/min |
| Dimensions (L x W x H) | 872 x 370 x 779 mm | 34.33 x 14.57 x 30.67 inch |
| Exhaust Pressure, Maximum | 1,200 hPa | 900 Torr | 1,200 mbar |
| Flange Model (Inlet) | DN 100 ISO-KF |
| Flange Model (Outlet) | DN 40 ISO-KF |
| Frequency | 50/60 Hz |
| Noise Level, Maximum | 68 dB(A) |
| Power Consumption at Ultimate Pressure, 50 Hz | 1.8 kW |
| Power Consumption at Ultimate Pressure, 60 Hz | 2 kW |
| Power Supply Voltage, 3 Phases | 200 – 230 V |
| Processes | Light Duty Applications |

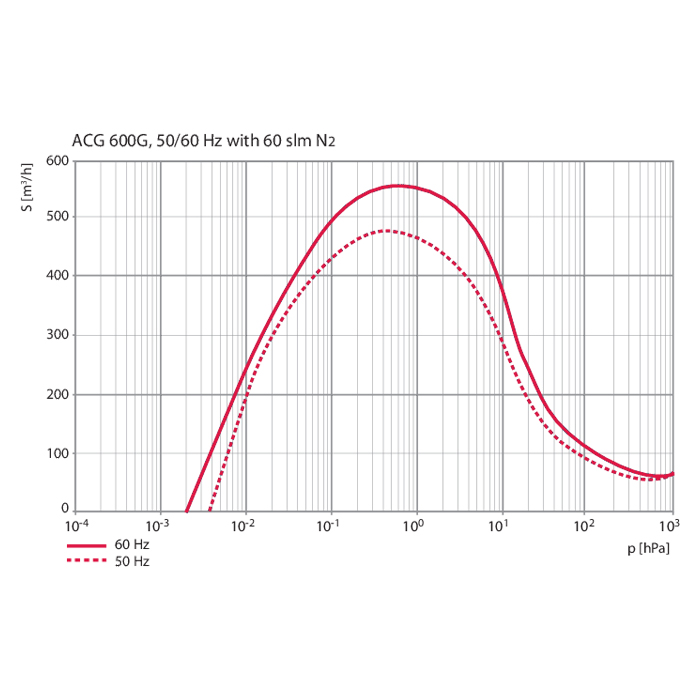

| Pumping Speed at 50 Hz | 480 m³/h | 282.53 cfm | 8,000 l/min |
| Pumping Speed at 60 Hz | 560 m³/h | 329.62 cfm | 9,333.33 l/min |
| Sound Pressure Level | 68 dB(A) |
| Typical Ultimate Pressure, with N2 Purge, 50 Hz | 0.01 hPa | 0.0075 Torr | 0.01 mbar |
| Typical Ultimate Pressure, with N2 Purge, 60 Hz | 6 * 10^[-3] hPa | 4.5 * 10^[-3] Torr | 6 * 10^[-3] mbar |
| Version | Corrosive Gas Version |
| Volume Size, Maximum | 1 m³ |
| Weight | 320 kg | 705.47 lb |
Click Here for Pfeiffer ACG 600G Manual
A&J Vacuum services and repairs Pfeiffer ACG 600 G Industrial Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Dry Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
