- High Maximum Pumping Speed of 560 Cubic Meters/Hour
- Frictionless Interior Surface Acts to Prevent Particle Contamination
- High Performance and Reliability Relative to Power Consumption
- Utilizes DN 50 ISO-KF Inlet Flange; DN 40 ISO-KF Outlet Flange
Shopping Cart ( )
Adixen Pfieffer ACP 120G Dry Vacuum Pump, 200 V to 480 V, 50/60 Hz, with Integrated Gas Ballast, 2000035816 / ACP120GSP11111
Condition:
New
Item#:PN23198
Mfr Part#:2000035816 / ACP120GSP11111
Manufacturer:Adixen / Alcatel
Features:
Adixen Pfieffer ACP 120G Dry Vacuum Pump, 200 V to 480 V, 50/60 Hz, with Integrated Gas Ballast, 2000035816 / ACP120GSP11111
Pfeiffer ACP 120G Industrial Dry Vacuum Pump - Product Overview:
Based on the multi-stage Roots technology, the ACP 120 G is the result of over 20 years of experience in manufacturing dry vacuum pumping solutions. ACP 120 G pumps provide all the benefits of clean and dry vacuum whenever particulate or oil contamination is an issue. A specific version is also available for the pump down of large chamber volumes > 1 m3.
Pfeiffer ACP 120G Features:
- Industrial Dry Vacuum Pump for Many R&D and Industrial Applications

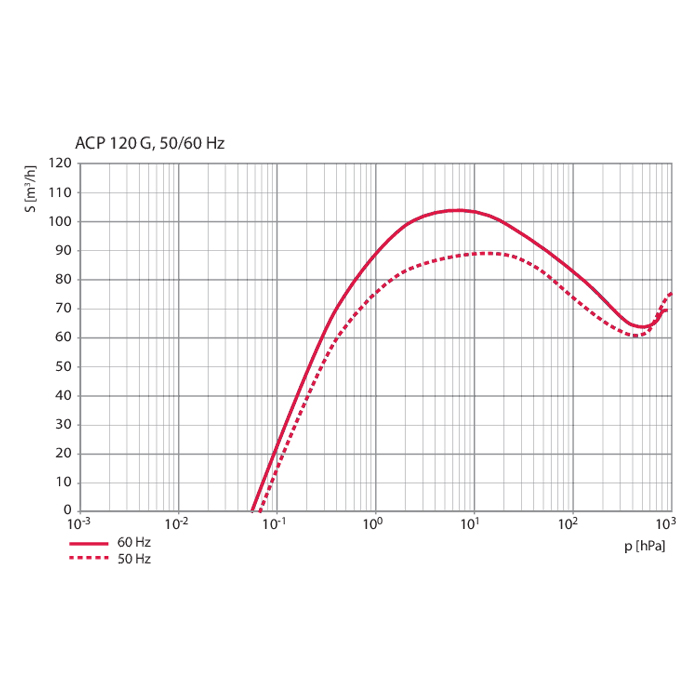

- High Maximum Pumping Speed of 110 m^3/h
- Equipped with a purge gas port for slightly corrosive processes or for pumping down condensable media
- Includes a Large Volume Option
- Cleanliness: No risk of particulate contamination due to frictionless and oil-free pumping module
- High performance: High pumping speed, low power consumption, low ultimate pressure, resistant to harsh cycling
- High reliability: Based on multi-stage Roots technology, resulting in optimum up-time
- Extended life time between maintenance: Typical four years interval between complete overhaul on clean applications, simple bearing replacement
- Water cooled
- Integrated Nitrogen gas ballast to protect the pump from corrosive or condensable gases
- Optional version with 5–40 ISO-K inlet pipe
- Optional large volume version

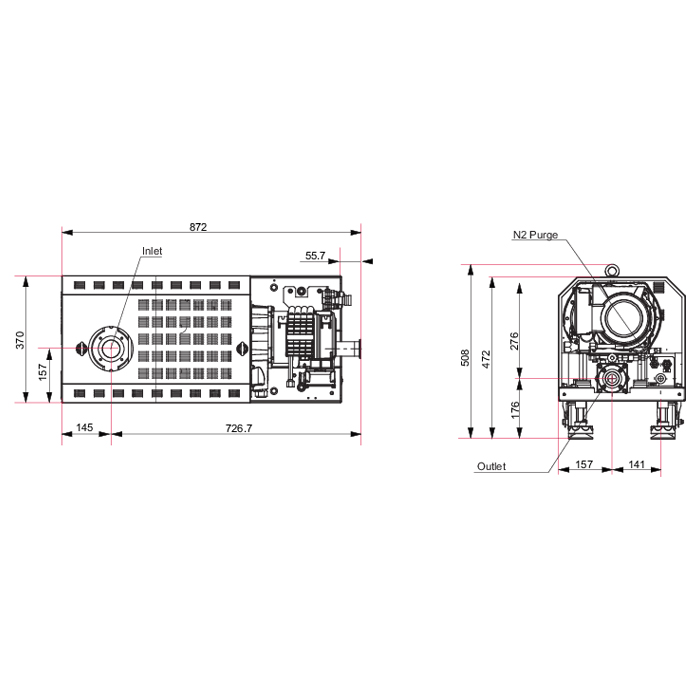

Pfeiffer ACP 120G Dimensions:
Click Here for Pfeiffer ACP 120G Manual
A&J Vacuum services and repairs Pfeiffer ACG 600 G Industrial Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Dry Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Adixen Pfieffer ACP 120G Dry Vacuum Pump, 200 V to 480 V, 50/60 Hz, with Integrated Gas Ballast, 2000035816 / ACP120GSP11111
Pfeiffer ACG 120P Technical Data:
| Ambient Temperature | 5-40 °C | 41-104 °F | 278-313 K |
| Continuous Inlet Flow, Maximum | 80 slpm (0 °C) |
| Cooling Method | Water |
| Cooling Water Flow | Minimum: 60 l/h |
| Cooling Water Flow, Minimum | 1 l/min |
| Dimensions (L x W x H) | 872 x 370 x 469 mm | 34.33 x 14.57 x 18.46 inch |
| Exhaust Pressure, Max. | 1,200 hPa | 900 Torr | 1,200 mbar |
| Flange Model (Inlet) | DN 50 ISO-KF |
| Flange Model (Outlet) | DN 40 ISO-KF |
| Frequency | 50/60 Hz |
| Noise Level, Maximum | 65 dB(A) |
| Power Consumption at Ultimate Pressure, 50 Hz | 1.3 kW |
| Power Consumption at Ultimate Pressure, 60 Hz | 1.5 kW |
| Power Supply Voltage, 3 Phases | 200 – 230 V |
| Processes | Light Duty Applications |
| Pumping Speed at 50 Hz | 95 m³/h | 55.92 cfm | 1,583.33 l/min |
| Pumping Speed at 60 Hz | 112 m³/h | 65.92 cfm | 1,866.67 l/min |
| Sound Pressure Level | 65 dB(A) |
| Typical Ultimate Pressure, with N2 Purge, 50 Hz | 0.3 hPa | 0.225 Torr | 0.3 mbar |
| Typical Ultimate Pressure, with N2 Purge, 60 Hz | 0.1 hPa | 0.075 Torr | 0.1 mbar |
| Version | Corrosive Gas Version |
| Volume Size, Maximum | 1 m³ |
| Weight | 213 kg | 469.58 lb |
Click Here for Pfeiffer ACP 120G Manual
A&J Vacuum services and repairs Pfeiffer ACG 600 G Industrial Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Dry Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
