- Peak pumping speed (60 Hz): 15.2 LPeak pumping speed 10.2 m³/hr, 6 cfm/m, 9.1 m³/hr, 5.5 cfm
- Water Vapor Handling 120 g/hr
- Light weight of 75 lbs
- Ultimate pressure: 2.0 × 10-2 mbar / 1.5 x10-2 Torr
Shopping Cart ( )
Agilent IDP 15 Dry Scroll Pump 15.4 m3/h at 60Hz, Single Phase, 100-127 / 200-240 VAC, 50/60 Hz, X3815-64000, Agilent IDP15, IDP-15
Condition:
New
Item#:PN22503
Mfr Part#:X3815-64000
Manufacturer:Agilent Technologies / Varian
Price upon request
CONTACT US
Features:
Agilent IDP 15 Scroll Dry Pump 15.4 m3/h at 60Hz, Single Phase, 100-127 / 200-240 VAC, 50/60 Hz, X3815-64000, Agilent IDP15, IDP-15

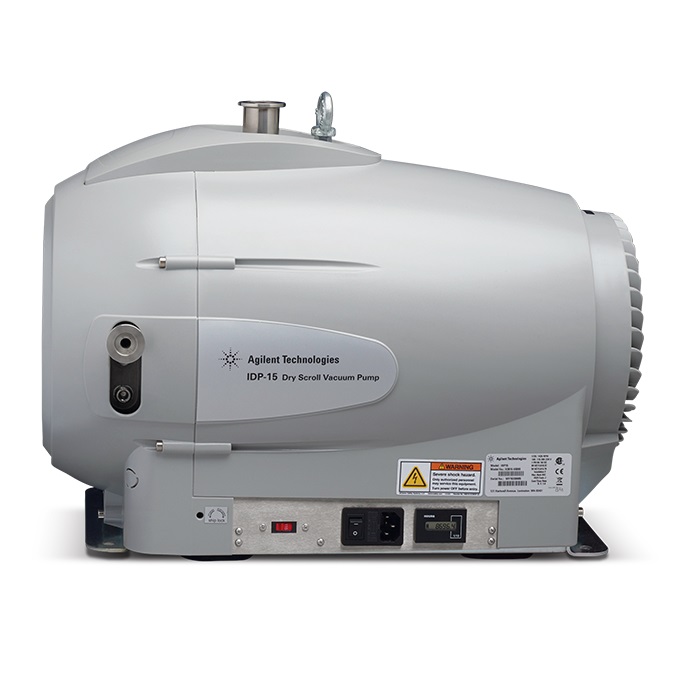

The Agilent IDP 15 Dry Scroll Vacuum Pump is an innovative, compact, high-performance, oil-free vacuum pump that is suitable for a wide variety of applications.
IDP-15 Scroll Pump made by Agilent Technologies has a Innovative hermetic design, which fully isolate the bearing and motor from the vacuum space, which prevents leakage and allows recovery of process gases.
Agilent IDP15 pump offers easy installation and vacuum system integration
Small footprint and lighter weight makes this scroll pump a trully portable pump.
IDP-15 pump innovative scroll design reduces noise and vibration without using additional sound enclosures.
Agilent Scroll Pump has no hydrocarbon exhaust and oil mist filter is required.
Scroll Pump Features:
- IDP15 is Oil-free, for no contamination of the vacuum system
- Hermetic design with fully isolated motor and bearings
- Single sided scroll design
- Lower base pressure than diaphragm pumps
- Light weight of 54 lbs
- Low noise and vibration
- IDP-15 pump is design for easy Tip Seal Service, avrage IDP7 tip seal replacement may take between 15-30 minutes
Agilent IDP Scroll Pump Applications Include:
- General Labolatories
- Gas Chromatography (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- Vacuum Systems
- Agilent Turbo Pump Bavking Pump
- ICP-MS Mass Spectrometry
- Time of Flight (TOF Systems)
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
IDP Scroll Pumps in Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development
A&J Vacuum also repair / rebuild and service Agilent IDP15 / X3815-64000 Dry Scroll pumps along with all other Agilent Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Agilent IDP 15 Scroll Dry Pump 15.4 m3/h at 60Hz, Single Phase, 100-127 / 200-240 VAC, 50/60 Hz, X3815-64000, Agilent IDP15, IDP-15

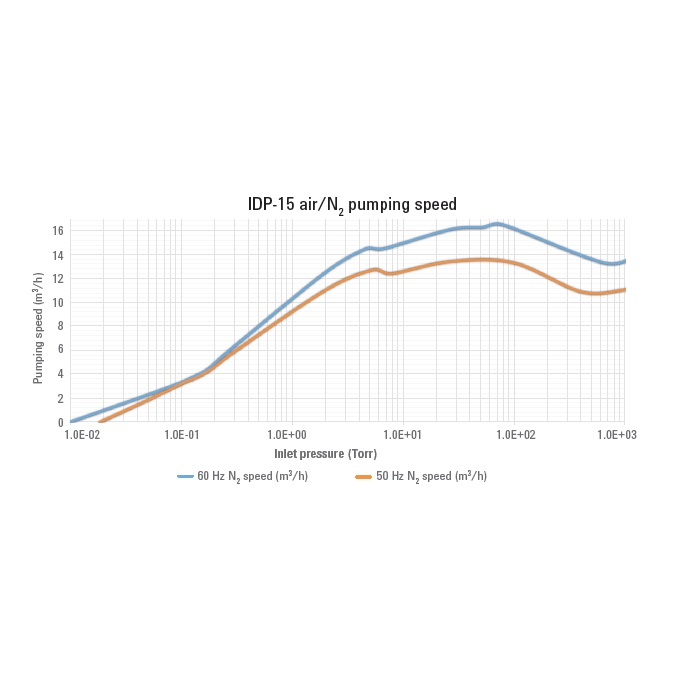

Peak pumping speed 15.4 m³/hr, at 60Hz
Ultimate pressure: 2.0 × 10-2 mbar / 1.5 x10-2 Torr
Inlet Connection: NW 25 KF
Exhaust Connection: NW 16 KF
Gas Ballast Connection: 1⁄8-in. female nat’l pipe thread
Maximum inlet pressure at nominal voltage 1.0 atmosphere (0 psig)
Maximum recommended continuous inlet pressure 300 Torr (400 mbar)
Ambient operating temperature 5 °C to 40 °C (41 °F to 104 °F)
Storage temperature –20 °C to 60 °C (–4 °F to 140 °F)
Motor rating 3/4 HP (560 W)
Cooling system Air-cooled
Water Vapor Handling 120 g/hr
Leak rate (with exhaust sealed) <1 x 10 -7 sccs helium
Noise Level (per ISO 11201) 50 +/- 2 dB(A)
Pump Weight: 75 lbs
Shipping weight: 100 lbs
A&J Vacuum also repair / rebuild and service Agilent IDP15 / X3815-64000 Dry Scroll pumps along with all other Agilent Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
