- DN 160 ISO-F Inlet Flange
- DN 25 ISO-KF Outlet Flange
Shopping Cart ( )
Agilent TV 903 Turbo Pump System, DN 160 ISO-F, Varian 9698811, TV903
Condition:
Remanufactured
In Stock
Item#:PN19758
Mfr Part#:9698811
Manufacturer:Agilent Technologies / Varian
Features:
Agilent TV903 Turbo Pump, DN 160 ISO-F, 9698811, TV-903Turbo-V 903 Pumping
System Pumping System model: 969-8811, Controller model: 969-6500, Power Supply model: 969-6501
Agilent Varian TV903 Overview:

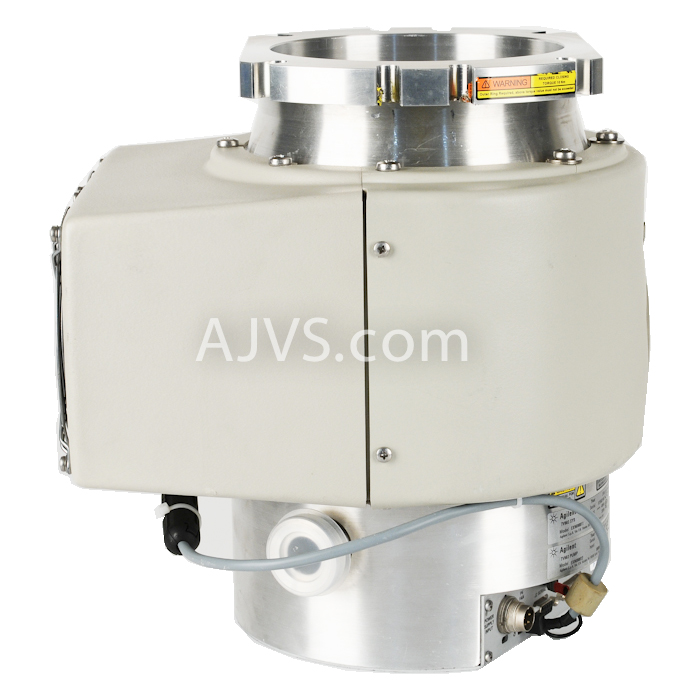

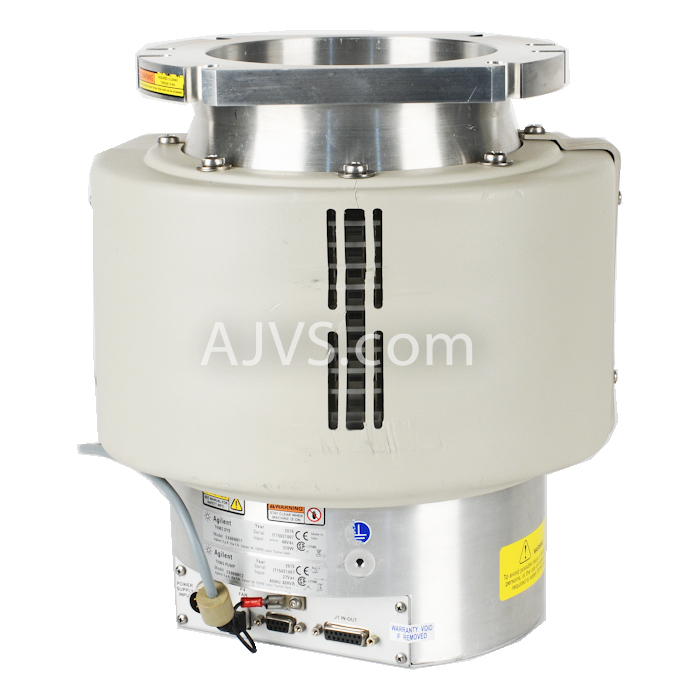

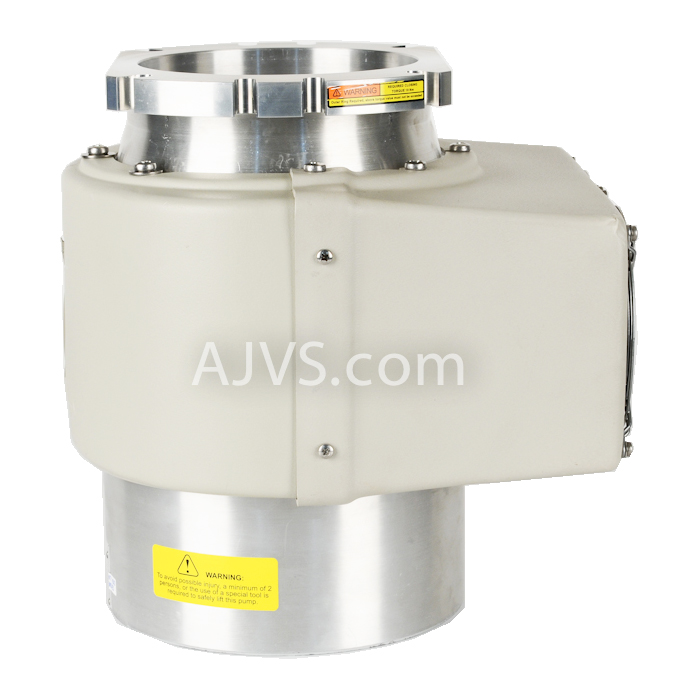

Fully Re-manufactured Varian Agilent TV 903 9698811 Turbo Pump coupled with a DN 160 ISO-F Inlet Flange and DN 25 ISO-KF Outlet Flange.
This Agilent TV903 Turbo Pump has a pumping velocity of 680 liters per second and a final pressure of 1 x 10-9. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
DESCRIPTION OF THE TV 903 NAVIGATOR BOLTED FLANGE

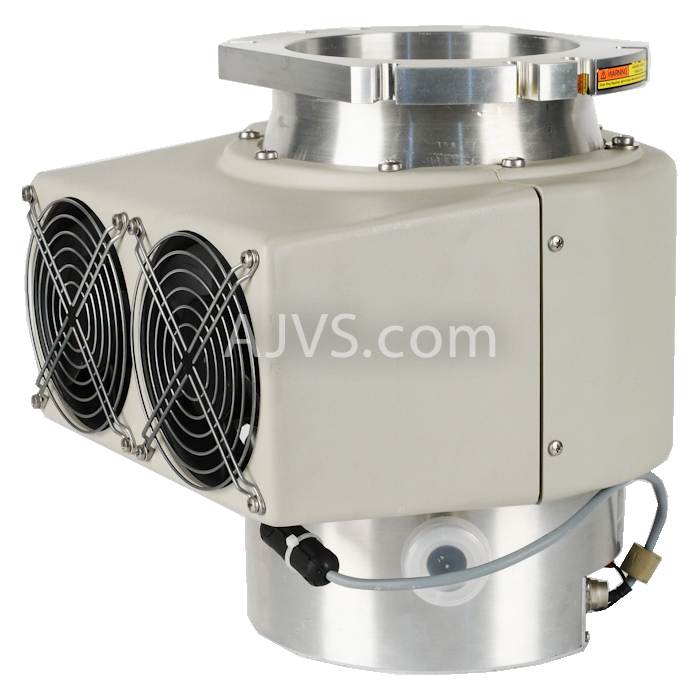

The TV 903 Turbo System Bolted Flange is composed by a pump (869-8811) with an envelope with fins and a shroud with two fans and a dedicated TV903 controller 9696500 (SQ 337).
The pump is equipped with a ISO160-F high vacuum flange.

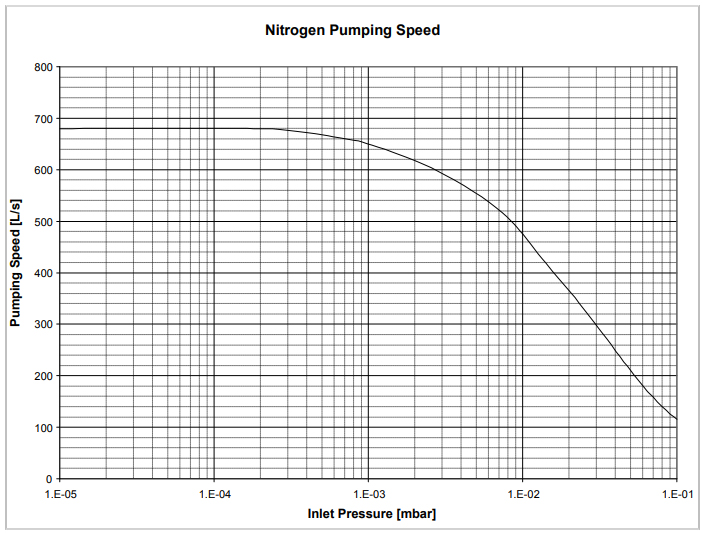

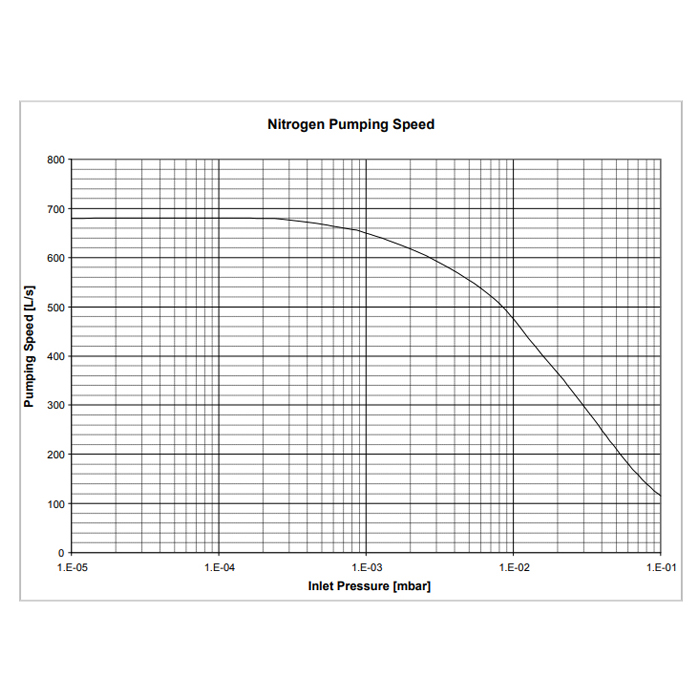

Agilent TV903 Pumping Speed:

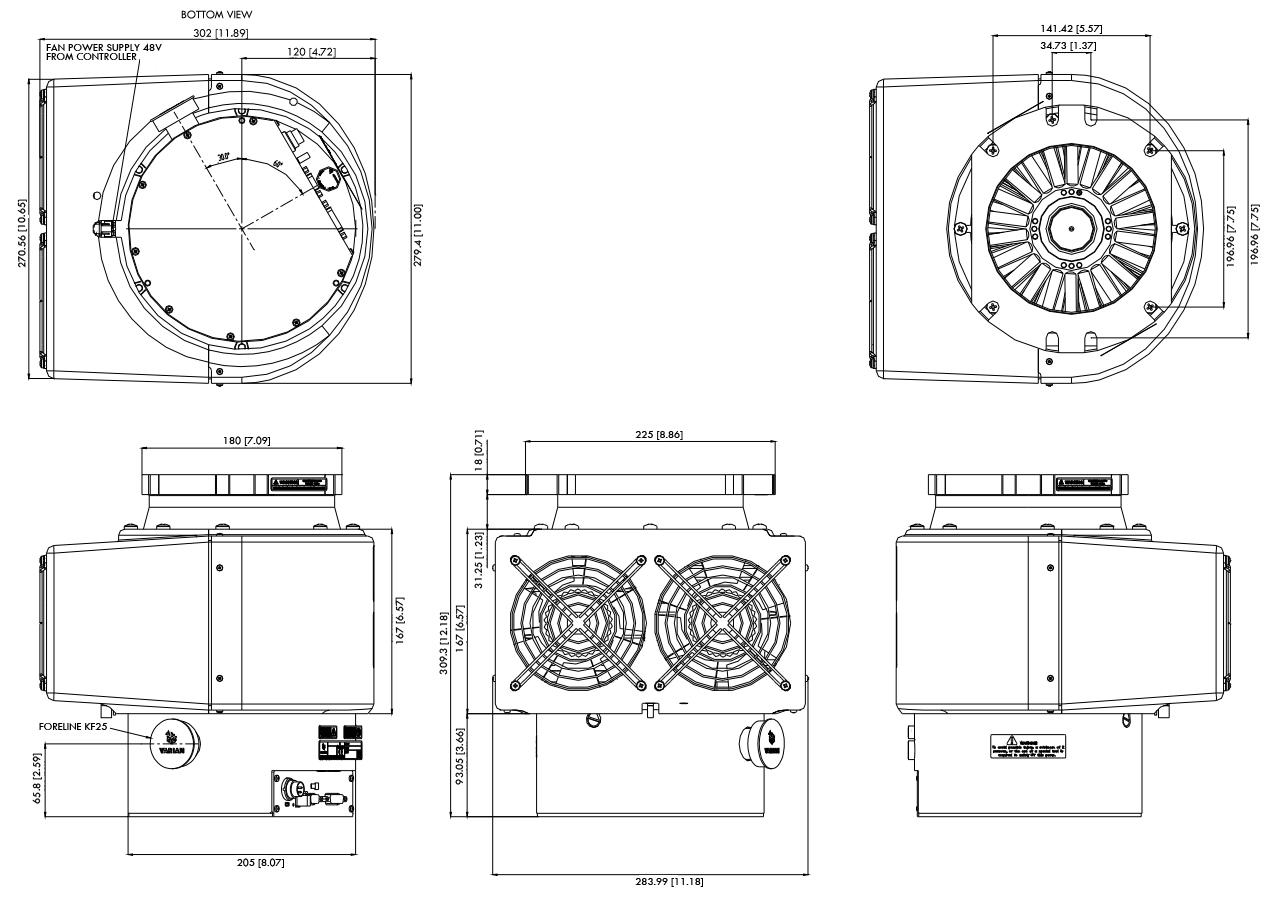

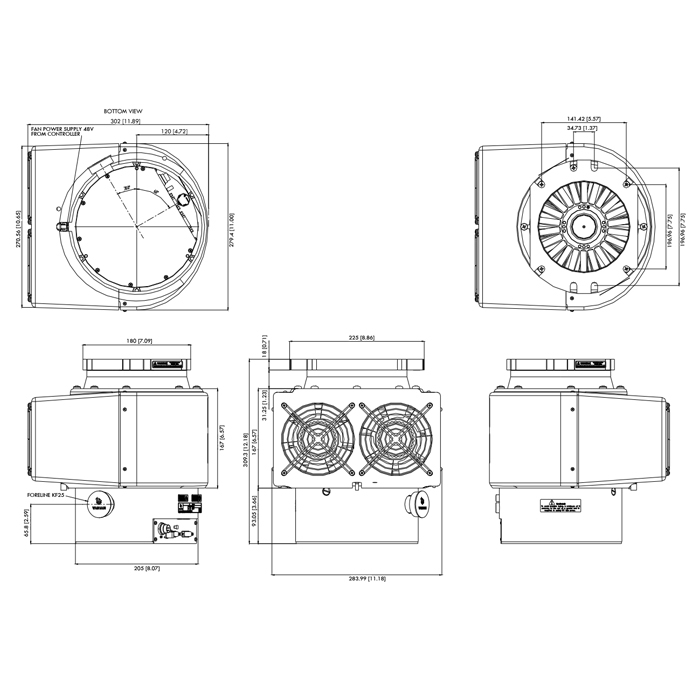

Agilent TV903 Dimensions:
A&J Vacuum repair / rebuild and service all Varian TV903, Agilent TV902 8698912 Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Agilent TV903 Turbo Pump, DN 160 ISO-F, 9698811, TV-903Turbo-V 903 Pumping
System Pumping System model: 969-8811, Controller model: 969-6500, Power Supply model: 969-6501

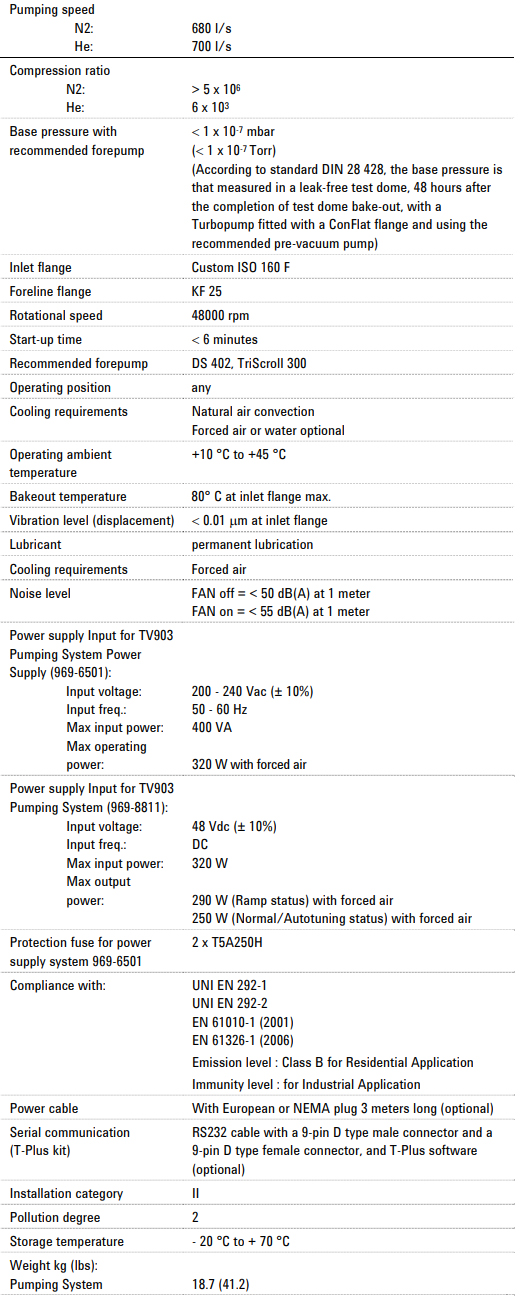

Agilent Varian TV903 Technical Data:
A&J Vacuum repair / rebuild and service all Varian TV903, Agilent TV902 8698912 Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Item#:PN15861
Mfr Part#:969-9883
Condition: Out of Stock
New
Price upon request
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
