The Varian V 60 9699001S009 Turbo pump is designed for a wide range of applications in the research and industrial industries. The Varian V-60 Turbo Pump controller is needed to operate the Varian V60 Turbo Pump.
A&J Vacuum repair / rebuild and service all Varian V60 / 969-9001S009, V-60 Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The Varian/Agilent V 70D turbo pump. The pumping speed up to 60 l/s N2. Varian V 70D (969-9361) has the compression ratio 5 x 107. The weight of Agilent V 70D is 1.7 kg. Rotational speed is about 75000 rpm.
The Agilent Technologies / Varian Turbo V70D / 969-9361 Turbo Pump consists of a high frequency motor driving a turbine fitted with 7 bladed stages and 4 Macrotorr stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength, light aluminum alloy, and is machined from a single block of aluminum. The turbine blades have five different angles, while the Macrotorr stages are in the form of discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearing installed on the forevacuum side of the pump.
Click Here for Varian V 70D Manual
A&J Vacuum repair / rebuild and service all Varian V70D, Agilent V 70 D, V-70 D Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The Varian/Agilent V 70 turbo pump. The pumping speed up to 68 l/s N2. Varian V 70 (9699357) has the compression ratio 5 x 108. The weight of Agilent V 70 is 1.7 kg. Rotational speed is about 75000 rpm.
The Varian Turbo V70 9699357S002 pump consists of a high frequency motor driving a turbine fitted with 11 bladed stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end.
The Varian V70 969-9357S002 turbine is made of high-strength, light aluminium alloy, and is machined from a single block of aluminium. The turbine blades have five different angles, from 42° to 12°. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are fabricated in stainless steel. These are supported and accurately positioned by spacer rings.
During normal operation, the motor functions with a power feed at 54 Vac three-phase at 1250 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
The external body of the TV301 pump is fitted with fins which allow the pump itself to function with natural convection air cooling. Kits are available for water cooling or forced air cooling to cool the pump in the cases where it is used under heavy load or when natural convection is insufficient for cooling purposes. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The thermistor sensor, the motor stator windings and the earth are connected to a Turbo-V controller through a 6 pin socket on the side of the pump. The pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange or on its base. The connection of the forevacuum on the side of the pump is a KF 16 NW flange.
Click Here for Varian V 70 Manual
A&J Vacuum repair / rebuild and service all Varian V70, Agilent V 70, V-70 Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The Varian/Agilent TV 70 LP turbo pump. The pumping speed up to 68 l/s N2. Varian TV 70 LP(969-9367S0004) has the compression ratio 5 x 108. The weight of Agilent TV 70 LP is 1.7 kg. Rotational speed is about 75000 rpm.
The Turbo-V70LP pump consists of a high frequency motor driving a turbine fitted with 10 bladed stages and 4 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end.
The turbine is made of high-strength, light aluminium alloy, and is machined from a single block of aluminium. The turbine blades have five different angles, from 44° to 12°, while the Macrotorr stages are in the form of discs.
The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are fabricated in stainless steel. These are supported and accurately positioned by spacer rings.
During normal operation, the motor functions with a power feed at 54 Vac three-phase at 1250 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Click Here for Varian TV 70 LP Manual
A&J Vacuum repair / rebuild and service all Varian TV70LP, Agilent TV 70LP, V-70LP Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The Varian/Agilent V 70 turbo pump. The pumping speed up to 68 l/s N2. Varian V 70 (9699357S002) has the compression ratio 5 x 108. The weight of Agilent V 70 is 1.7 kg. Rotational speed is about 75000 rpm.
The Varian Turbo V70 9699357S002 pump consists of a high frequency motor driving a turbine fitted with 11 bladed stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end.
The Varian V70 969-9357S002 turbine is made of high-strength, light aluminium alloy, and is machined from a single block of aluminium. The turbine blades have five different angles, from 42° to 12°. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are fabricated in stainless steel. These are supported and accurately positioned by spacer rings.
During normal operation, the motor functions with a power feed at 54 Vac three-phase at 1250 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
The external body of the TV301 pump is fitted with fins which allow the pump itself to function with natural convection air cooling. Kits are available for water cooling or forced air cooling to cool the pump in the cases where it is used under heavy load or when natural convection is insufficient for cooling purposes. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The thermistor sensor, the motor stator windings and the earth are connected to a Turbo-V controller through a 6 pin socket on the side of the pump. The pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange or on its base. The connection of the forevacuum on the side of the pump is a KF 16 NW flange.
Click Here for Varian V 70 Manual
A&J Vacuum repair / rebuild and service all Varian V70, Agilent V 70, V-70 Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The Varian/Agilent TV 70 LP turbo pump. The pumping speed up to 68 l/s N2. Varian TV 70 LP(9699365) has the compression ratio 5 x 108. The weight of Agilent TV 70 LP is 1.7 kg. Rotational speed is about 75000 rpm.
The Varian V70LP pump consists of a high frequency motor driving a turbine fitted with 10 bladed stages and 4 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end.
The TV70LP / 969-9365 turbine is made of high-strength, light aluminium alloy, and is machined from a single block of aluminium. The turbine blades have five different angles, from 44° to 12°, while the Macrotorr stages are in the form of discs.
The V-70LP turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are fabricated in stainless steel. These are supported and accurately positioned by spacer rings.
During normal operation, the V-70lp motor functions with a power feed at 54 Vac three-phase at 1250 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Click Here for Varian TV 70 LP Manual
A&J Vacuum repair / rebuild and service all Varian TV70LP, Agilent TV 70LP, V-70LP Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

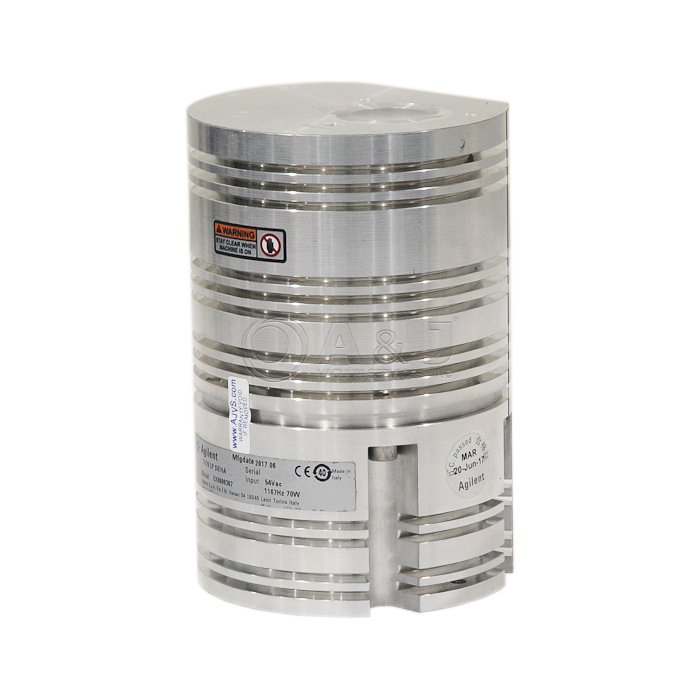

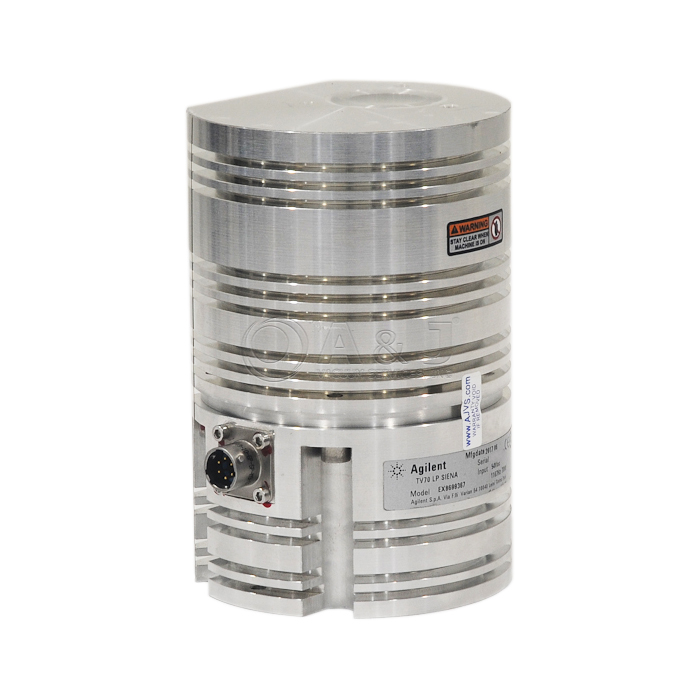

Agilent/Varian TV 70 SIENA LP Overview:
The Varian/Agilent TV 70 LP SIENA turbo pump. The pumping speed up to 68 l/s N2. Varian TV 70 LP SIENA (9699367) has the compression ratio 5 x 10-8. The Agilent TV 70 SIENA LP pump has been designed to fit Agilent helium leak detectors. Rotational speed is about 75000 rpm.
The Varian V70LP SIENA pump consists of a high frequency motor driving a turbine fitted with bladed stages and 4 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end.
The TV70LP SIENA / 969-9367 turbine is made of high-strength, light aluminium alloy, and is machined from a single block of aluminium. The turbine blades have five different angles, from 44° to 12°, while the Macrotorr stages are in the form of discs.
The V-70LP SIENA turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are fabricated in stainless steel. These are supported and accurately positioned by spacer rings.
During normal operation, the V-70lp motor functions with a power feed at 54 Vac three-phase at 1167 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Click Here for Varian TV 70 LP Manual
A&J Vacuum repair / rebuild and service all Varian TV70LP SIENA , Agilent TV 70LP SIENA, V-70LP Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The Varian/Agilent V 70 turbo pump. The pumping speed up to 68 l/s N2. Varian V 70 (9699357S004) has the compression ratio 5 x 107. The weight of Agilent V 70 is 1.7 kg. Rotational speed is about 75000 rpm.
The Varian Turbo V70 pump consists of a high frequency motor driving a turbine fitted with 11 bladed stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end.
The Varian V70 turbine is made of high-strength, light aluminium alloy, and is machined from a single block of aluminium. The turbine blades have five different angles, from 42° to 12°. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are fabricated in stainless steel. These are supported and accurately positioned by spacer rings.
During normal operation, the motor functions with a power feed at 54 Vac three-phase at 1250 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
The external body of the TV301 pump is fitted with fins which allow the pump itself to function with natural convection air cooling. Kits are available for water cooling or forced air cooling to cool the pump in the cases where it is used under heavy load or when natural convection is insufficient for cooling purposes. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The thermistor sensor, the motor stator windings and the earth are connected to a Turbo-V controller through a 6 pin socket on the side of the pump. The pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange or on its base. The connection of the forevacuum on the side of the pump is a KF 16 NW flange.
Click Here for Varian V 70 Manual
A&J Vacuum repair / rebuild and service all Varian V70, Agilent V 70, V-70 Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The Varian V 60 9699001S010 Turbo pump is designed for a wide range of applications in the research and industrial industries. The Varian V-60 Turbo Pump controller is needed to operate the Varian V60 Turbo Pump.
A&J Vacuum repair / rebuild and service all Varian V60 / 969-9001S010, V-60 Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The Varian/Agilent TV 70 LP turbo pump. The pumping speed up to 68 l/s N2. Varian TV 70 LP(9699366) has the compression ratio 5 x 108. The weight of Agilent TV 70 LP is 1.7 kg. Rotational speed is about 75000 rpm.
The Varian V70LP pump consists of a high frequency motor driving a turbine fitted with 10 bladed stages and 4 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end.
The TV70LP / 969-9366 turbine is made of high-strength, light aluminium alloy, and is machined from a single block of aluminium. The turbine blades have five different angles, from 44° to 12°, while the Macrotorr stages are in the form of discs.
The V-70LP turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are fabricated in stainless steel. These are supported and accurately positioned by spacer rings.
During normal operation, the V-70lp motor functions with a power feed at 54 Vac three-phase at 1250 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Click Here for Varian TV 70 LP Manual
A&J Vacuum repair / rebuild and service all Varian TV70LP, Agilent TV 70LP, V-70LP Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
