Found 5 products
Item#: PN15616 Mfr Part#: 8698928R001 Manufacturer: Agilent Technologies / Varian
PRICE: $7,994.00
WEB SAVINGS: $244.00
YOU PAY: $7,750.00

*This Pump Is NEW Opened Out Of The Box.

The Agilent Technologies TV 401/301/21 NSF Turbo Pump consists of a high frequency motor driving a turbine with three pumping ports and 3 Macrotorr stages. The turbine rotates in an counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The Macrotorr stages are in the form of 3 discs. The turbine rotor is supported by permanently lu-bricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of self-positioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy.

The nominal rotational speed is 60 krpm. The pump can be water cooled or air cooled: in the first case the customer can use the dedicated channels on the pump body, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The pump can operate in any position and must be supported on the flange. The connection of the forevacuum on the side of the pump is a KF16 flange.



There are no returns, refunds or exchanges on this product.






Condition: Demo In Stock
Item#: PN15625 Mfr Part#: 8698928R003 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Technologies / Varian TV 401/301/21 NSF Turbo Vacuum Pump, 8698928R003



Agilent/Varian TV 401/301 Overview:


The Agilent Technologies TV 401/301/21 NSF Turbo Pump consists of a high frequency motor driving a turbine with three pumping ports and 3 Macrotorr stages.

The turbine of TV401/301/21 NSF pump rotates in an counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block.

TheTV-401 301 21 Macrotorr stages are in the form of 3 discs. The turbine rotor is supported by permanently lu-bricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of self-positioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy.

The pump can be water cooled or air cooled: in the first case the customer can use the dedicated channels on the pump body, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The pump can operate in any position and must be supported on the flange. The connection of the forevacuum on the side of the pump is a KF16 flange.



There are no returns, refunds or exchanges on this product.





Agilent/Varian TV 401/301 Compression Ratio:


Agilent TV401/301, 8698928R003, 8698928 R003 Compression Ratio



Agilent/Varian TV 401/301 Dimensions:


Agilent TV401/301, 8698928, 8698928R003 Dimensions


A&J Vacuum also repair / rebuild and service all Varian Agilent TV401/301 8698928R003 Turbo Pumps along with all Varian Dry Scroll Vacuum pumps and Varian Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.


Condition: Remanufactured In Stock
Item#: PN18647 Mfr Part#: 9698928M002 Manufacturer: Agilent Technologies / Varian
PRICE: $8,925.00
WEB SAVINGS: $1,000.00
YOU PAY: $7,925.00

Agilent / Varian TV401/301 NSF Turbo Vacuum Pump, 969-8928M002, 9698928M002



Agilent/Varian TV 401/301 Overview:


The Agilent Technologies TV401/301 969-8928M002 Turbo Pump consists of a high frequency motor driving a turbine with three pumping ports and 3 Macrotorr stages. The TV401/301 NSF 9698928 turbine rotates in an counterclockwise direction when viewed from the high vacuum flange end.


The TV401/301 NSF 969-8928 pump was designed for LC/MS-10-0605 Liquid chromatography / mass spectrometry or alternatively HPLC-MS) is an analytical chemistry technique that combines the physical separation capabilities of liquid chromatography (or HPLC) with the mass analysis capabilities of mass spectrometry (MS).


Agilent TV401/301 9698928M002 turbine is made of high-strength aluminium alloy, machined from a single block. The Macrotorr stages are in the form of 3 discs. The turbine rotor is supported by permanently lu-bricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of self-positioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy.


The nominal rotational speed is 60 krpm. The pump can be water cooled or air cooled: in the first case the customer can use the dedicated channels on the pump body, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The pump can operate in any position and must be supported on the flange.


A barb fitting of 1/2 inches outer diameter is available to connect the TV 401/301 NSF pump to the fore-vacuum pump.

NOTE: The TV 401/301 NSF pump is characterized by its high compression ratio also for oil vapors. When using a mechanical oil-sealed pump, it is advisable to install a suitable trap between the turbopump and the fore-vacuum pump in order to prevent oil backstreaming.

Please refer to operation manual for additional information.

The TV401/301 NSF is designed to be used with Turbo Controller model : 9698979



There are no returns, refunds or exchanges on this product.



Agilent/Varian TV 401/301 Compression Ratio:


Agilent TV401/301, 9698928, 9698928M002 Compression Ratio



Agilent/Varian TV 401/301 Dimensions:


Agilent TV401/301, 9698928, 9698928M002 Dimensions


A&J Vacuum also repair / rebuild and service all Varian Agilent TV401/301 9698928M002 Turbo Pumps along with all Varian Dry Scroll Vacuum pumps and Varian Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.


Condition: Remanufactured In Stock

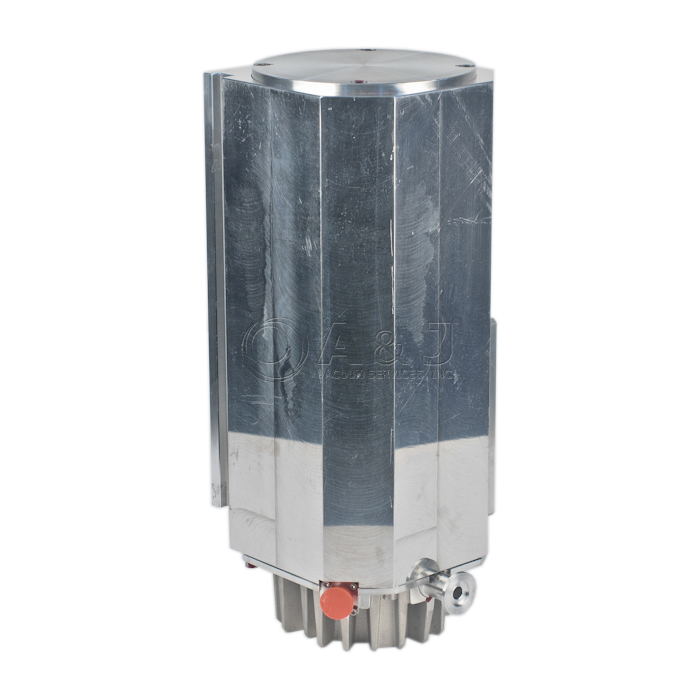

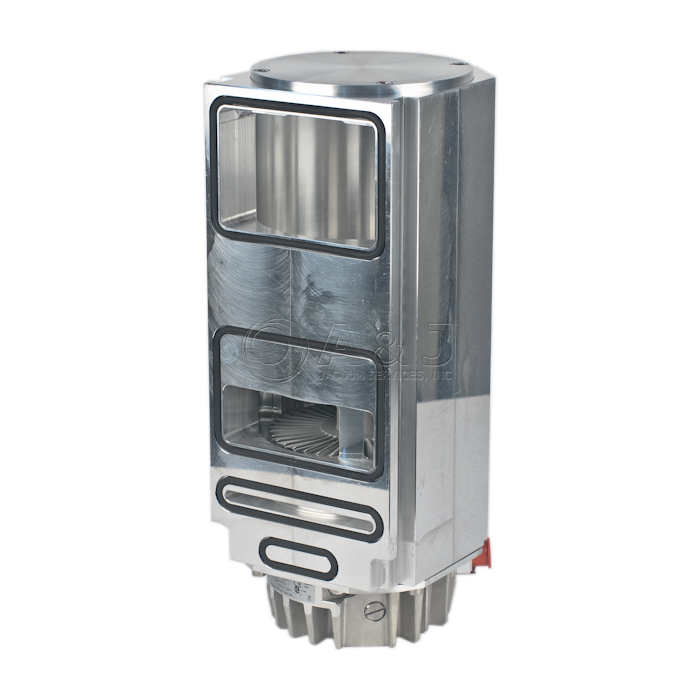

Item#: PN18648 Mfr Part#: 7698928 Manufacturer: Agilent Technologies / Varian
Price upon request

Fully Remanufactured Agilent TV401/301 / Varian TV401/301 Turbo Vacuum Pump, 7698928, EX7698928 for Brucker Amazon SL LC-MS



Agilent TV401/301 Overview:


The Agilent Technologies TV401/301 769-8928 Turbo Pump consists of a high frequency motor driving a turbine with three pumping ports and 3 Macrotorr stages.This TV 401/301 Turbo pump was designed for Bruker Amazon mass spectrometer.

The Agilent TV 401 301 turbine rotates in an counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block.

The Varian TV401 Macrotorr stages are in the form of 3 discs. The turbine rotor is supported by permanently lu-bricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of self-positioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy.

The TV401/301 turbo pump can be water cooled or air cooled: in the first case the customer can use the dedicated channels on the pump body, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The pump can operate in any position and must be supported on the flange. The connection of the forevacuum on the side of the pump is a KF16 flange.

There are no returns, refunds or exchanges on this product.


A&J Vacuum repair / rebuild and service Agilent TV401/301 769892 Turbo Pumps, Vacuum Pumps along with all other  Agilent Varian  Vacuum Pumps and all other Agilent Leak Detector  Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Out of Stock
Item#: PN20883 Mfr Part#: 8698928R004 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Technologies / Varian TV 401/301/21 NSF Turbo Vacuum Pump, 8698928R004



Agilent/Varian TV 401/301 Overview:


The Agilent Technologies TV 401/301/21 NSF Turbo Pump consists of a high frequency motor driving a turbine with three pumping ports and 3 Macrotorr stages.

The turbine of TV401/301/21 NSF pump rotates in an counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block.

TheTV-401 301 21 Macrotorr stages are in the form of 3 discs. The turbine rotor is supported by permanently lu-bricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of self-positioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy.

The pump can be water cooled or air cooled: in the first case the customer can use the dedicated channels on the pump body, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The pump can operate in any position and must be supported on the flange. The connection of the forevacuum on the side of the pump is a KF16 flange.



There are no returns, refunds or exchanges on this product.





Agilent/Varian TV 401/301 Compression Ratio:


Agilent TV401/301, 8698928R004, 8698928 R004 Compression Ratio



Agilent/Varian TV 401/301 Dimensions:


Agilent TV401/301, 8698928, 8698928R004 Dimensions


A&J Vacuum also repair / rebuild and service all Varian Agilent TV401/301 8698928R003 Turbo Pumps along with all Varian Dry Scroll Vacuum pumps and Varian Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.


Condition: Remanufactured Out of Stock
