Found 10 products
Item#: PN07838 Mfr Part#: 8698933R001 Manufacturer: Agilent Technologies / Varian
PRICE: $9,300.00
WEB SAVINGS: $3,650.00
YOU PAY: $5,650.00

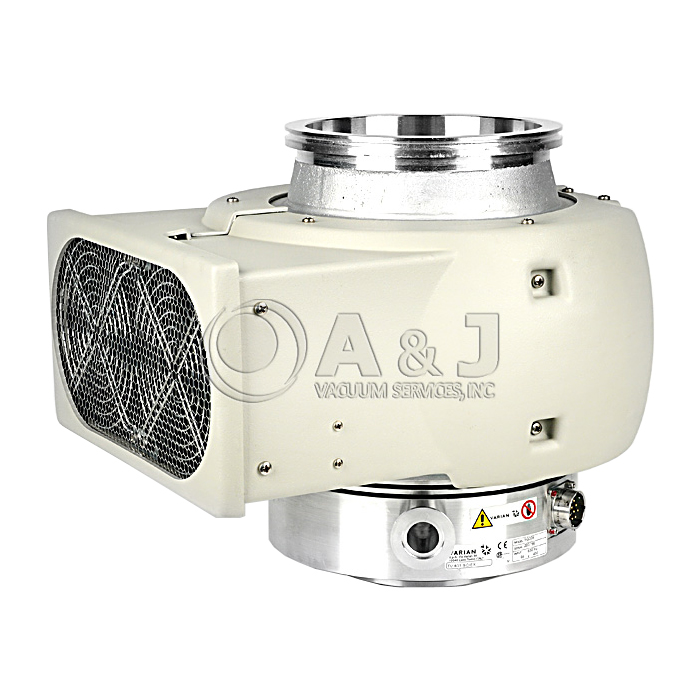

Agilent TV 801 also know as Varian TV801 SCIEX Turbo Vacuum Pump, DN 160 ISO-K, 8698933R001 (Advanced Exchange)



Agilent TV801 Overview:


Fully Re-manufactured Varian Agilent TV 801 8698933R001 Turbo Pump coupled with a DN 160 ISO-K Inlet Flange and DN 25 ISO-KF Outlet Flange.

This Agilent TV801 Turbo Pump has a pumping velocity of 680 liters per second and a final pressure of 1 x 10-10. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

DESCRIPTION OF THE TV 801 NAVIGATOR BOLTED FLANGE



The TV 801 Navigator Bolted Flange is composed by a pump (869-8933) with an envelope with fins and a shroud with two fans and a dedicated navigator controller (SQ 337).

The pump is equipped with a ISO160-K high vacuum flange.


The pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 4 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block.

Proceeding from the high vacuum to the for vacuum region, the turbine stages sequence is:
  • 1st stage with a blade angle of 40°
  • 2nd stage with a blade angle of 34°
  • 3rd stage with a blade angle of 28°
  • 4th and
  • 5th stages with a blade angle of 24°
  • 6th stage with a blade angle of 20°
  • 7th and 8th stages with a blade angle of 16°.

The Macrotorr stages are in the form of four discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 646 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.



Agilent TV801 Pumping Speed:


Agilent TV801 Pumping Speed, 8698933, 8698933R001



Agilent TV801 Dimensions:


Agilent TV801 Dimensions, 8698933, 8698933R001


Click Here for TV801 Turbo Pump Operation Manual


A&J Vacuum repair / rebuild and service all Varian TV801, Agilent TV801 8698933R001 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN15847 Mfr Part#: 8698933R001 Manufacturer: Agilent Technologies / Varian
PRICE: $9,850.00
WEB SAVINGS: $550.00
YOU PAY: $9,300.00

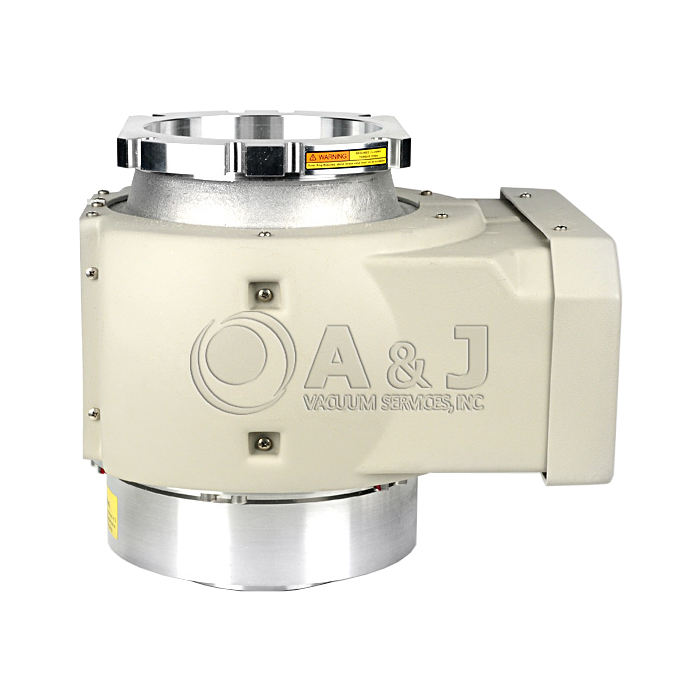

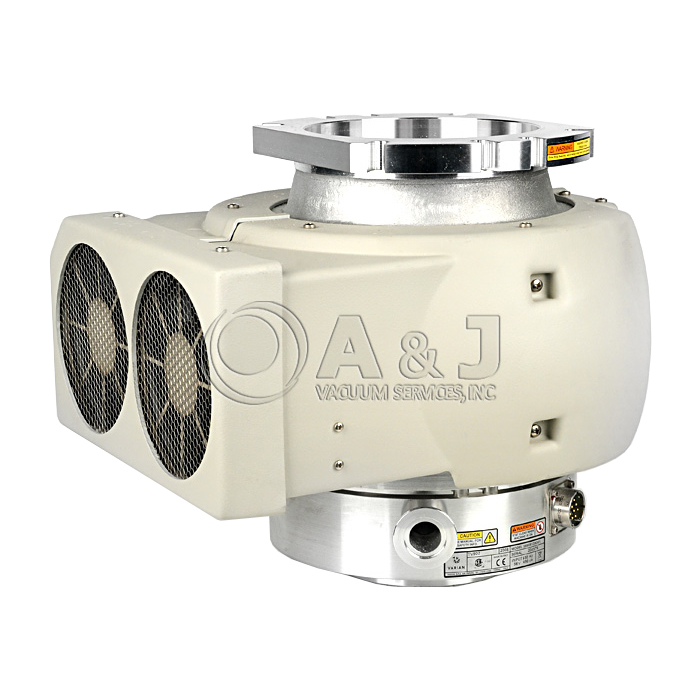

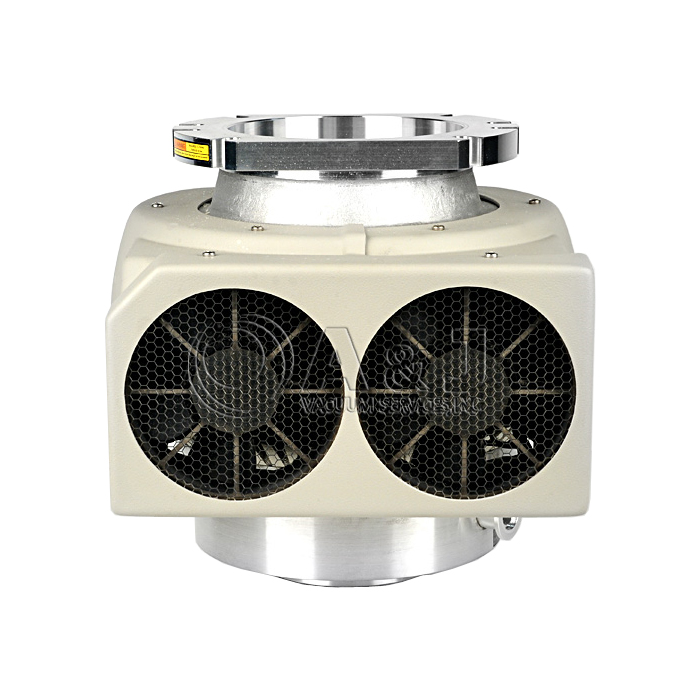

Agilent TV 801 also know as Varian TV801 SCIEX Turbo Vacuum Pump, DN 160 ISO-F, 8698933R001



Agilent TV801 Overview:


Fully Re-manufactured Varian Agilent TV 801 8698933R001 Turbo Pump coupled with a DN 160 ISO-F Inlet Flange and DN 25 ISO-KF Outlet Flange.

This Agilent TV801 Turbo Pump has a pumping velocity of 680 liters per second and a final pressure of 1 x 10-10. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

DESCRIPTION OF THE TV 801 NAVIGATOR BOLTED FLANGE

The TV 801 Navigator Bolted Flange is composed by a pump (869-8933) with an envelope with fins and a shroud with two fans and a dedicated navigator controller (SQ 337).
The pump is equipped with a ISO160-F high vacuum flange.

The pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 4 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block.

Proceeding from the high vacuum to the for vacuum region, the turbine stages sequence is:
  • 1st stage with a blade angle of 40°
  • 2nd stage with a blade angle of 34°
  • 3rd stage with a blade angle of 28°
  • 4th and
  • 5th stages with a blade angle of 24°
  • 6th stage with a blade angle of 20°
  • 7th and 8th stages with a blade angle of 16°.

The Macrotorr stages are in the form of four discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 646 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.



Agilent TV801 Pumping Speed:


Agilent TV801 Pumping Speed, 8698933, 8698933R001



Agilent TV801 Dimensions:


Agilent TV801 Dimensions, 8698933, 8698933R001


Click Here for TV801 Turbo Pump Operation Manual


A&J Vacuum repair / rebuild and service all Varian TV801, Agilent TV801 8698933R001 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: In Stock
Item#: PN15849 Mfr Part#: 8698933R001 Manufacturer: Agilent Technologies / Varian
PRICE: $27,500.00
WEB SAVINGS: $10,800.00
YOU PAY: $16,700.00

Agilent Technologies / Varian TV902 Turbo Vacuum Pump, DN 160 ISO-F, 869-8933R001, SCIEX 1028005



Agilent TV902 Overview:


Fully Re-manufactured Varian Agilent TV 902 8698933R001 Turbo Pump coupled with a DN 160 ISO-F Inlet Flange and DN 25 ISO-KF Outlet Flange.

This Agilent TV902 Turbo Pump has a pumping velocity of 680 liters per second and a final pressure of 1 x 10-10. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

DESCRIPTION OF THE TV 902 NAVIGATOR BOLTED FLANGE



The TV 902 Navigator Bolted Flange is composed by a pump (869-8933) with an envelope with fins and a shroud with two fans and a dedicated navigator controller (SQ 337).

The pump is equipped with a ISO160-F high vacuum flange.


The pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 4 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block.

Proceeding from the high vacuum to the for vacuum region, the turbine stages sequence is:
  • 1st stage with a blade angle of 40°
  • 2nd stage with a blade angle of 34°
  • 3rd stage with a blade angle of 28°
  • 4th and
  • 5th stages with a blade angle of 24°
  • 6th stage with a blade angle of 20°
  • 7th and 8th stages with a blade angle of 16°.

The Macrotorr stages are in the form of four discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 646 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.



Agilent TV902 Pumping Speed:


Agilent TV902 Pumping Speed, 8698933, 8698933R001



Agilent TV902 Dimensions:


Agilent TV902 Dimensions, 8698933, 8698933R001


Click Here for TV902 Turbo Pump Operation Manual


A&J Vacuum repair / rebuild and service all Varian TV902, Agilent TV801 8698933R001 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN19758 Mfr Part#: 9698811 Manufacturer: Agilent Technologies / Varian
PRICE: $26,900.00
WEB SAVINGS: $7,000.00
YOU PAY: $19,900.00

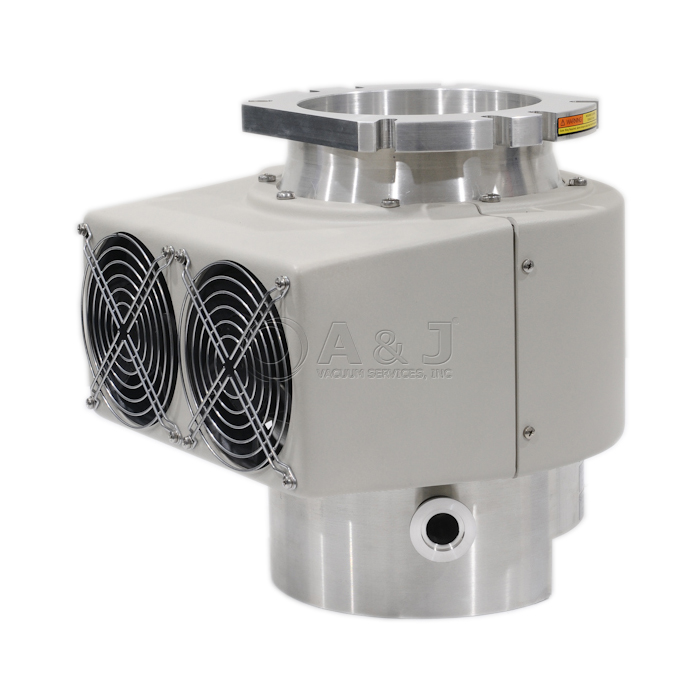

Agilent TV903 Turbo Pump, DN 160 ISO-F, 9698811, TV-903Turbo-V 903 Pumping
System Pumping System model: 969-8811, Controller model: 969-6500, Power Supply model: 969-6501



Agilent Varian TV903 Overview:


Fully Re-manufactured Varian Agilent TV 903 9698811 Turbo Pump coupled with a DN 160 ISO-F Inlet Flange and DN 25 ISO-KF Outlet Flange.

This Agilent TV903 Turbo Pump has a pumping velocity of 680 liters per second and a final pressure of 1 x 10-9. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

DESCRIPTION OF THE TV 903 NAVIGATOR BOLTED FLANGE



The TV 903 Turbo System Bolted Flange is composed by a pump (869-8811) with an envelope with fins and a shroud with two fans and a dedicated TV903 controller 9696500 (SQ 337).

The pump is equipped with a ISO160-F high vacuum flange.



Agilent TV903 Pumping Speed:


Agilent TV903 Pumping Speed, 969-8811, 9698811



Agilent TV903 Dimensions:


Agilent TV903 Dimensions, 969-8811, 9698811



A&J Vacuum repair / rebuild and service all Varian TV903, Agilent TV902 8698912 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN22511 Mfr Part#: 9698811 EXCHANGE Manufacturer: Agilent Technologies / Varian
PRICE: $19,500.00
WEB SAVINGS: $6,000.00
YOU PAY: $13,500.00

Advanced Exchange of Agilent Varian TV903 Turbo Pump, DN 160 ISO-F, 8698811, TV-903 Turbo-V 903 Pumping System Pumping System model: 969-8811, Controller model: 969-6500, Power Supply model: 969-6501



Agilent Varian TV903 Overview:


Customer must generate online Service Return RMA # and proceed with core return. All accesories must be removed prior return.

Fully Remanufactured Varian Agilent TV 903 9698811 Turbo Pump coupled with a DN 160 ISO-F Inlet Flange and DN 25 ISO-KF Outlet Flange.

This Agilent TV903 Turbo Pump has a pumping velocity of 680 liters per second and a final pressure of 1 x 10-9. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

DESCRIPTION OF THE TV 903 NAVIGATOR BOLTED FLANGE



The TV 903 Turbo System Bolted Flange is composed by a pump (869-8811) with an envelope with fins and a shroud with two fans and a dedicated TV903 controller 9696500 (SQ 337).

The pump is equipped with a ISO160-F high vacuum flange.



Agilent TV903 Pumping Speed:


Agilent TV903 Pumping Speed, 969-8811, 9698811



Agilent TV903 Dimensions:


Agilent TV903 Dimensions, 969-8811, 9698811



A&J Vacuum repair / rebuild and service all Varian TV903, Agilent TV902 8698912 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN00204 Mfr Part#: 8698933R001 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent TV 801 also know as Varian TV801 SCIEX Turbo Vacuum Pump, DN 160 ISO-F, 8698933R001 (Advanced Exchange) Also known as R001



Agilent TV801 Overview:


Fully Re-manufactured Varian Agilent TV 801 8698933R001 Turbo Pump coupled with a DN 160 ISO-F Inlet Flange and DN 25 ISO-KF Outlet Flange.

This Agilent TV801 Turbo Pump has a pumping velocity of 680 liters per second and a final pressure of 1 x 10-10. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

DESCRIPTION OF THE TV 801 NAVIGATOR BOLTED FLANGE

The TV 801 Navigator Bolted Flange is composed by a pump (869-8933) with an envelope with fins and a shroud with two fans and a dedicated navigator controller (SQ 337).
The pump is equipped with a ISO160-F high vacuum flange.

The pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 4 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block.

Proceeding from the high vacuum to the for vacuum region, the turbine stages sequence is:
  • 1st stage with a blade angle of 40°
  • 2nd stage with a blade angle of 34°
  • 3rd stage with a blade angle of 28°
  • 4th and
  • 5th stages with a blade angle of 24°
  • 6th stage with a blade angle of 20°
  • 7th and 8th stages with a blade angle of 16°.

The Macrotorr stages are in the form of four discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 646 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.



Agilent TV801 Pumping Speed:


Agilent TV801 Pumping Speed, 8698933, 8698933R001



Agilent TV801 Dimensions:


Agilent TV801 Dimensions, 8698933, 8698933R001


Click Here for TV801 Turbo Pump Operation Manual


A&J Vacuum repair / rebuild and service all Varian TV801, Agilent TV801 8698933R001 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Out of Stock
Item#: PN14628 Mfr Part#: 8698933R001 Manufacturer: Agilent Technologies / Varian
Price upon request

Exchange of Agilent Technologies / Varian TV902 Turbo Vacuum Pump, DN 160 ISO-F, 869-8933R001, 1028005



Agilent TV902 Overview:


Advance Exchange of Fully Re-manufactured Varian Agilent TV 902 8698933R001 Turbo Pump coupled with a DN 160 ISO-F Inlet Flange and DN 25 ISO-KF Outlet Flange.

This Agilent TV902 Turbo Pump has a pumping velocity of 680 liters per second and a final pressure of 1 x 10-10. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

DESCRIPTION OF THE TV 902 NAVIGATOR BOLTED FLANGE



The TV 902 Navigator Bolted Flange is composed by a pump (869-8933) with an envelope with fins and a shroud with two fans and a dedicated navigator controller (SQ 337).

The pump is equipped with a ISO160-F high vacuum flange.


The pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 4 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block.

Proceeding from the high vacuum to the for vacuum region, the turbine stages sequence is:
  • 1st stage with a blade angle of 40°
  • 2nd stage with a blade angle of 34°
  • 3rd stage with a blade angle of 28°
  • 4th and
  • 5th stages with a blade angle of 24°
  • 6th stage with a blade angle of 20°
  • 7th and 8th stages with a blade angle of 16°.

The Macrotorr stages are in the form of four discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 646 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.



Agilent TV902 Pumping Speed:


Agilent TV902 Pumping Speed, 8698933, 8698933R001



Agilent TV902 Dimensions:


Agilent TV902 Dimensions, 8698933, 8698933R001


Click Here for TV902 Turbo Pump Operation Manual


A&J Vacuum repair / rebuild and service all Varian TV902, Agilent TV801 8698933R001 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Out of Stock
Item#: PN15848 Mfr Part#: 8698933R001 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent TV 801 also know as Varian TV801 SCIEX Turbo Vacuum Pump, DN 160 ISO-K, 8698933R001



Agilent TV801 Overview:


Fully Re-manufactured Varian Agilent TV 801 8698933R001 Turbo Pump coupled with a DN 160 ISO-K Inlet Flange and DN 25 ISO-KF Outlet Flange.

This Agilent TV801 Turbo Pump has a pumping velocity of 680 liters per second and a final pressure of 1 x 10-10. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

DESCRIPTION OF THE TV 801 NAVIGATOR BOLTED FLANGE



The TV 801 Navigator Bolted Flange is composed by a pump (869-8933) with an envelope with fins and a shroud with two fans and a dedicated navigator controller (SQ 337).

The pump is equipped with a ISO160-K high vacuum flange.


The pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 4 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block.

Proceeding from the high vacuum to the for vacuum region, the turbine stages sequence is:
  • 1st stage with a blade angle of 40°
  • 2nd stage with a blade angle of 34°
  • 3rd stage with a blade angle of 28°
  • 4th and
  • 5th stages with a blade angle of 24°
  • 6th stage with a blade angle of 20°
  • 7th and 8th stages with a blade angle of 16°.

The Macrotorr stages are in the form of four discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 646 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.



Agilent TV801 Pumping Speed:


Agilent TV801 Pumping Speed, 8698933, 8698933R001



Agilent TV801 Dimensions:


Agilent TV801 Dimensions, 8698933, 8698933R001


Click Here for TV801 Turbo Pump Operation Manual


A&J Vacuum repair / rebuild and service all Varian TV801, Agilent TV801 8698933R001 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Out of Stock
Item#: PN20216 Mfr Part#: 8698933R001 Upgrade Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent TV 801 DOUBLE BOLT UPGRADE SCIEX Turbo Pump, DN 160 ISO-F, 8698933R001, TV801



Agilent TV801 Overview:


Fully Re-manufactured and upgraded to Two Bolt Upgrade Varian Agilent TV 801 EX8698933 Turbo Pump coupled with a DN 160 ISO-F Inlet Flange and DN 25 ISO-KF Outlet Flange.

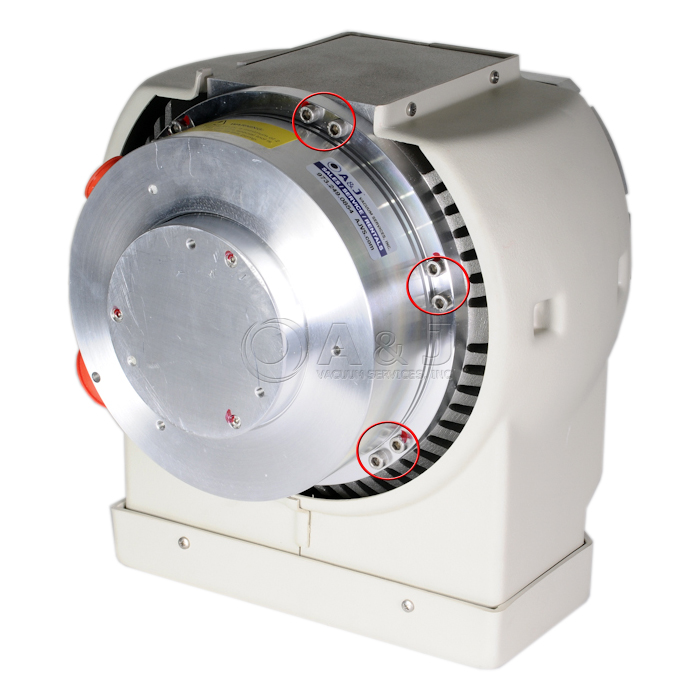

This TV801 Double Bolt upgraded pump has the same bolts fitted as TV 902 Turbo Pump with Two Bolts.

This Agilent TV801 Turbo Pump has a pumping velocity of 680 liters per second and a final pressure of 1 x 10-10. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

DESCRIPTION OF THE TV 801 NAVIGATOR BOLTED FLANGE



The TV 801 Navigator Bolted Flange is composed by a pump (EX869-8933) with an envelope with fins and a shroud with two fans and a dedicated navigator controller (SQ 337).

The pump is equipped with a ISO160-F high vacuum flange.


The pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 4 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block.

Proceeding from the high vacuum to the for vacuum region, the turbine stages sequence is:
  • 1st stage with a blade angle of 40°
  • 2nd stage with a blade angle of 34°
  • 3rd stage with a blade angle of 28°
  • 4th and
  • 5th stages with a blade angle of 24°
  • 6th stage with a blade angle of 20°
  • 7th and 8th stages with a blade angle of 16°.

The Macrotorr stages are in the form of four discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 646 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.



Agilent TV801 Pumping Speed:


Agilent TV801 Pumping Speed, 8698933, 8698933R001



Agilent TV801 Dimensions:


Agilent TV801 Dimensions, 8698933, 8698933R001


Click Here for TV801 Turbo Pump Operation Manual


A&J Vacuum repair / rebuild and service all Varian TV801, Agilent TV801 8698933R001 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Out of Stock
Item#: PN20573 Mfr Part#: 9698812 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Varian TV903 Turbo Pump, DN 160 ISO-F, 8698812, TV-903 Turbo-V 903 Pumping System Pumping System model: 969-8812.



Controller model: 969-6500 and Power Supply model: 969-6501 NOT INCLUDED



Agilent Varian TV903 Overview:


Fully Re-manufactured Varian Agilent TV 903 9698812 Turbo Pump coupled with a DN 160 ISO-F Inlet Flange and DN 25 ISO-KF Outlet Flange.

This Agilent TV903 Turbo Pump has a pumping velocity of 680 liters per second and a final pressure of 1 x 10-9. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

DESCRIPTION OF THE TV 903 NAVIGATOR BOLTED FLANGE

The TV 903 Turbo Pump has been designed as a Turbo System with Bolted Flange which is composed by a pump (869-8812) with an envelope with fins and a shroud with two fans and a dedicated TV903 controller 9696500 (SQ 337). SOLD SEPERATELY
The pump is equipped with a ISO160-F high vacuum flange.
Controller model: 969-6500 and Power Supply model: 969-6501 NOT INCLUDED



Agilent TV903 Pumping Speed:


Agilent TV903 Pumping Speed, 969-8812, 9698812



Agilent TV903 Dimensions:


Agilent TV903 Dimensions, 969-8812, 9698812



A&J Vacuum repair / rebuild and service all Varian TV903, Agilent TV902 8698912 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Out of Stock
Contact
address
A&J Vacuum Services
16 Somerset Place, Clifton, NJ 07012
customer service
Customer Service
Phone: 973-249-0854, Fax: 973-249-0855
working hours
Service Hours
8:00am to 5:00pm, Monday thru Friday EST
All trademarks, trade names or logons mentioned or used are the property of their respective owners.
