- PM P01 674
- Pumping speed: 300 l/sec for N2
- DN 100 ISO-K Inlet Flange
- Ultimate pressure with rotary vane pump <1 x 10-10 Mba
Shopping Cart ( )

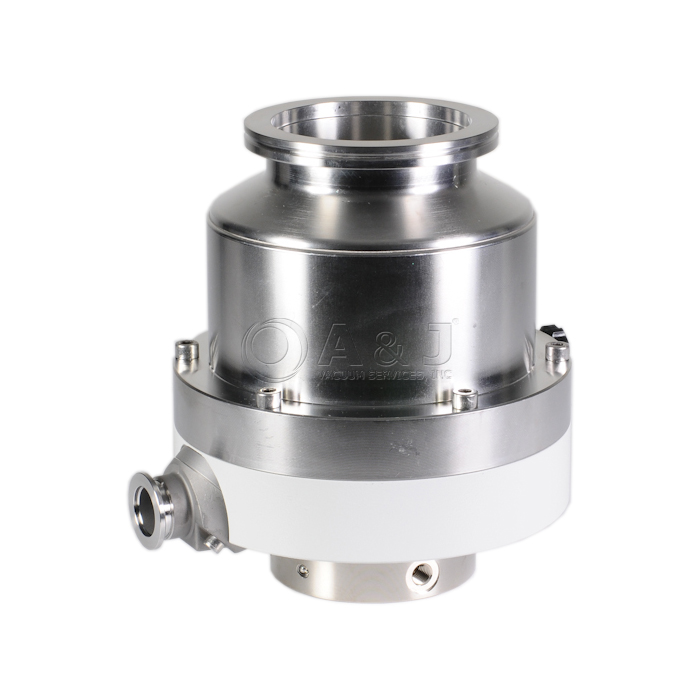

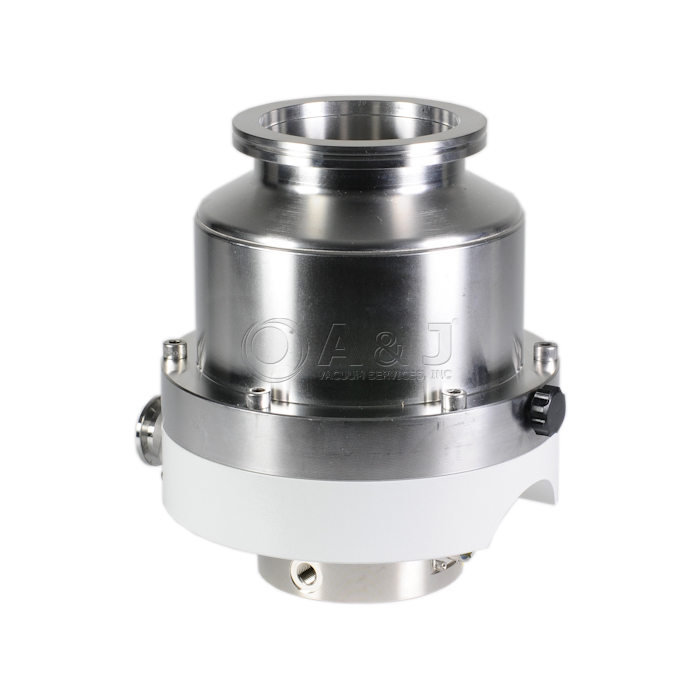

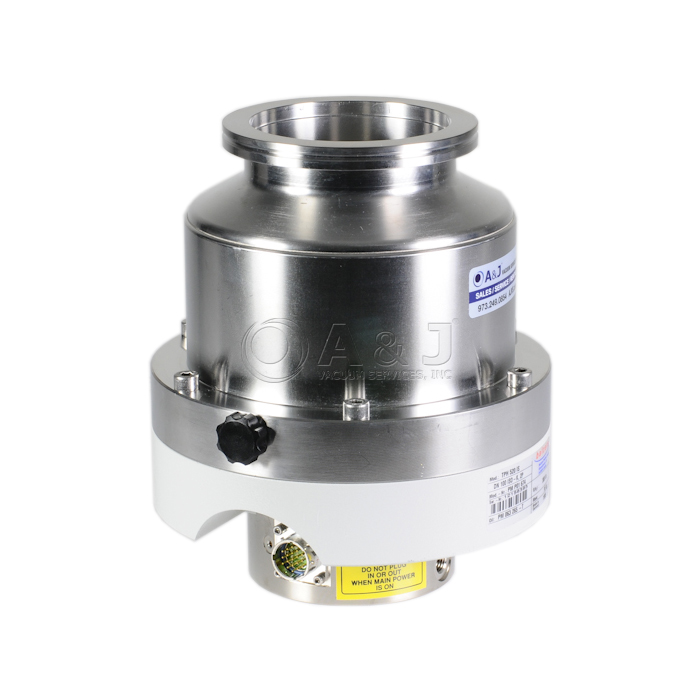

Pfeiffer Balzers TPH 520IS Turbo Pump, DN 100 ISO Inlet Flange, PMP01674 / PM P01 674
Condition:
Remanufactured
In Stock
Item#:PN20378
Mfr Part#:PMP01674 / PM P01 674
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Balzers TPH 520IS Turbo Pump, DN 100 ISO Inlet Flange, PMP01674 / PM P01 674
TPH 520IS / PMP01674 Overview:
Fully refurbished Pfeiffer TPH-520IS Pump PM P01 674 Turbo Pump coupled with a DN 100 ISO-K Inlet Flange and DN 25 ISO-KF Outlet Flange.
This TPH-520 Turbomolecular Pump has a pumping velocity of 300 liters per second and a final pressure of 1 x 10-10.
This TPH 520 IS pump has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
This Pfeiffer TPH520 Pump has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side. The Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their inlet flange.
TPH520IS Applications:
- Freeze drying - packaging industry
- Degassing, casting, dry vacuum smelting (super-pure metals)
- Electronic tubes
- Thin film deposition
- Space simulation
- Cryogenic research
- Electron microscopy
- Nuclear physics, Plasma physics, High energy physics
- Particle accelerators - Storage rings
A&J Vacuum repair / rebuild and service Pfeiffer TPH 520 IS and TPU 520 Turbo Pumps, PM P01 674 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Balzers TPH 520IS Turbo Pump, DN 100 ISO Inlet Flange, PMP01674 / PM P01 674
Pfeiffer TPH 520IS Technical Data:
A&J Vacuum repair / rebuild and service Pfeiffer TPH 520 IS and TPU 520 Turbo Pumps, PM P01 674 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN06379
Mfr Part#:PN06379
Condition: Out of Stock
New
$135.00
Item#:PN06782
Mfr Part#:2000019083 / PM063265-T / PM 063 265 -T
Condition: Out of Stock
New
$215.00
Item#:PN06128
Mfr Part#:2000020397 / PM 011 501 -T / PM011501-T
Condition: Out of Stock
Remanufactured
Out of Stock
Price upon request
Item#:PN17557
Mfr Part#:APIEZON M
Condition: In Stock
New
In Stock
$199.95
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
