- Pumping speed: for N2 500 l/s,
- Ultimate pressure < 1x10-10 mbar
- Air or Water Cooling available.
Shopping Cart ( )
Pfeiffer Vacuum TPH 510 Turbo Pump, Top Flange, DN-160 ISO-K, PMP01180 / PM P01 180
Condition:
Remanufactured
In Stock
Item#:PN00159
Mfr Part#:PMP01180 / PM P01 180
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum TPH 510 Turbo Pump, Top Flange, DN-160 ISO-K, PMP01180 / PM P01 180
TPH 510 / PMP01180 Overview:
This Pfeiffer TPH 510 Turbo Pump has two ceramic bearings at each end to support rotor. The Turbo Pumps TPU 510 and TPH510 PMP01180 models are identical in terms of design.
This Pfeiffer TPH-510 Turbo Pump is lubricated with Pfeiffer TL 011 Turbo Pump fluid PM006034 AT / PN07244
Pfeiffer TPH 510 and TPU 510 only differ in their intake flange. TPH 510 comes with DN 160 ISO-K Inlet Flange, and TPU510 comes with DN-160 CF-F Conflat Inlet Flange.
Pfeiffer TPH 510 can have three different Inlet Flange orientations.
- TPH-510 Top Flange
- TPH-510 Side Flange
- TPH-510 Bottom Flange
Pfieffer TPH 510 Turbo Pump can be operated with one of the following Electronic Turbo Pump Controllers.
- Pfeiffer TCP 121 / PMC01475 / PN06831
- Pfeiffer TCP 300 / PMC01259 / PN00341
- Pfeiffer TCP 310 / PMC01520 / PN06829
- Pfeiffer TCP 380 / PMC01490 / PN06827
Those Pfeiffer Vacuum Turbo Pump Controllers are well design to be integrated into your High Vacuum System Vacuum, and can be rack mounted for easy panel access.
TPH510 Applications:
- Freeze drying - packaging industry
- Degassing, casting, dry vacuum smelting (super-pure metals)
- Incandescent lamp manufacturing
- Electronic tubes
- Thin film deposition
- Space simulation
- Cryogenic research
- Electron microscopy
- Nuclear physics, Plasma physics, High energy physics
- Particle accelerators - Storage rings
A&J Vacuum also repair / rebuild and service Pfeiffer TPU 510 / PM P01 196 Turbo Pumps along with all other Pfeiffer Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum TPH 510 Turbo Pump, Top Flange, DN-160 ISO-K, PMP01180 / PM P01 180
Pfeiffer TPH 510 Technical Data:
| TPH 510 | ||

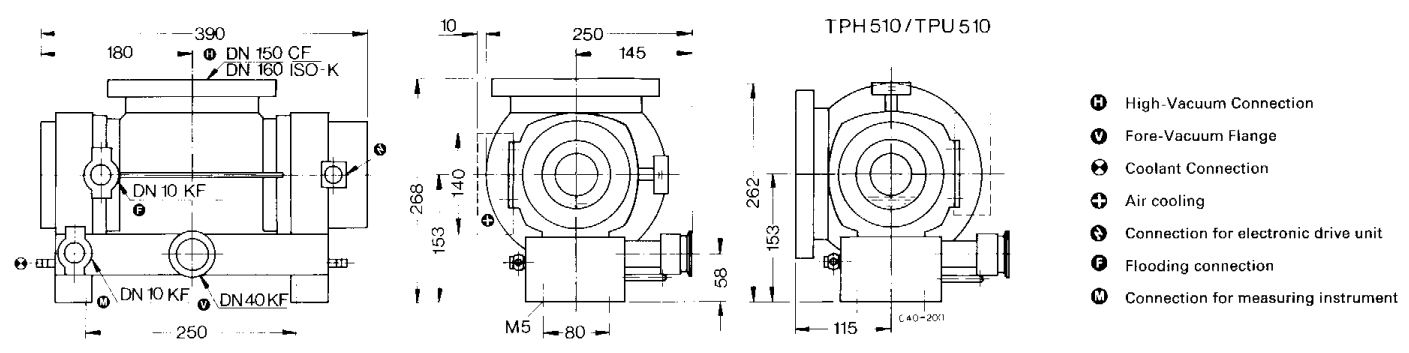

| Intake flange | DN 160 ISO-K | |
| Fore-vacuum flange | DN 40 KF | |

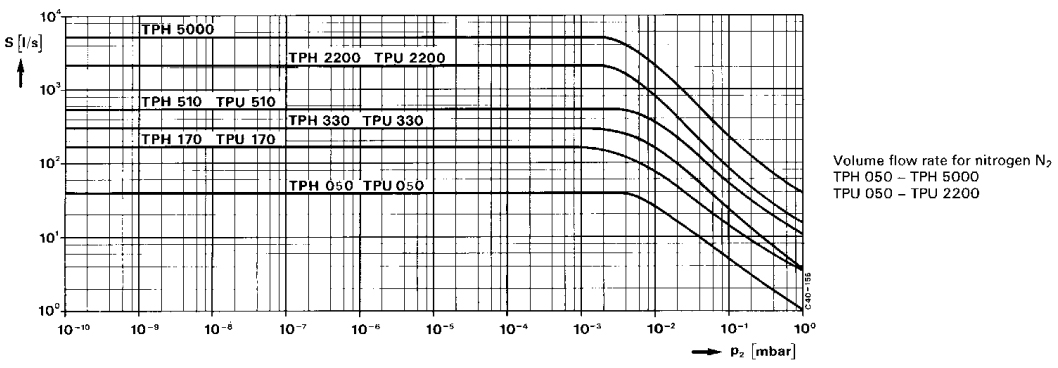

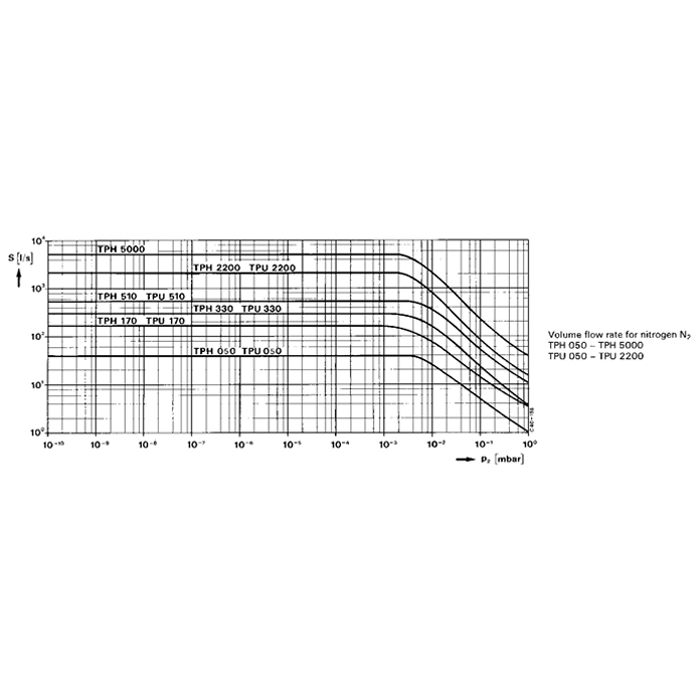

| Volume flow rate | ||
| N2 | l/s | 500 |
| He | l/s | 570 |
| H2 | l/s | 500 |
| Rec Backing Pump | 12 | |
| Acc electronic drive unit | TCP 300 (TCP 300),TCP 310 (TCP 310),TCP 380 | |
| Compression ratio | ||
| N2 | 8x10^8 | |
| He | 1.5x10^4 | |
| H2 | 1x10^3 | |
| Ultimate pressure | mbar | 10^-11 |
| Ultimate operating | mbar | <1x10^-10 |
| Pressure | mbar | <1x10^-9 |
| 3 | mbar | <1x10^-8 |
| Speed | rpm | 60,000 |
| Start-up time with TCP 300 (TCP 300)/310 | min | 6 |
| Start-up time with TCP 120 (TCP 120)/121 | min | |
| Permissible magnetic field | mT | 6 |
| Oil filling | cm^3 | 2x10 |
| Cooling water req | l/h | 15 |
| Cooling water temperature | C | 5-25 |
| Permissible ambient temperature for air cooing | C | 0-35 |
| Power input of heater | Watt | 250 |
| weight | kg | 30 |
A&J Vacuum also repair / rebuild and service Pfeiffer TPU 510 / PM P01 196 Turbo Pumps along with all other Pfeiffer Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
