- DN 40 ISO-KF
- Nominal Pumping Speed (50 Hz): 44 cfm
- Motor protection rating: IP 55
- Weight: 83 kg
Shopping Cart ( )

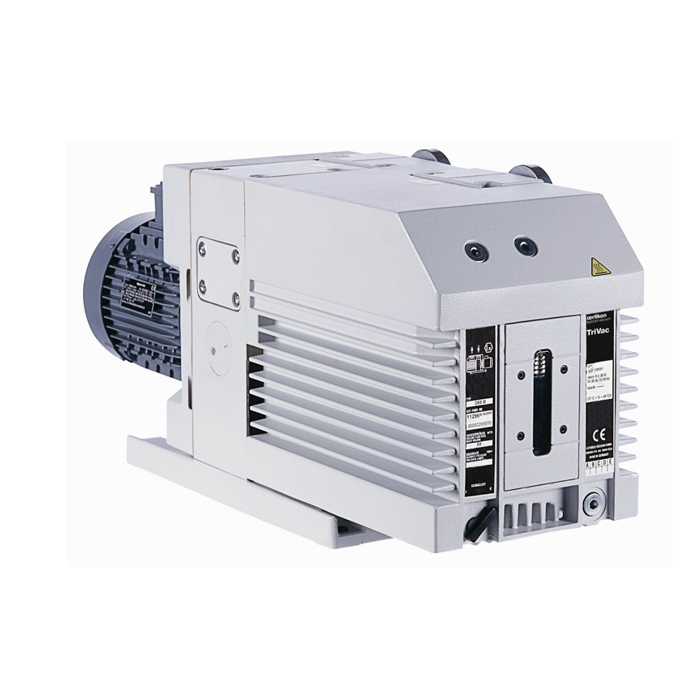

Leybold D65BCS Dual Stage Rotary Vane Vacuum Pump, PFPE Fluid, 208-230/416-460 V, 3 Phase, 11399
Condition:
New
Item#:PN19933
Mfr Part#:11399
Manufacturer:Leybold
Features:
Leybold D65BCS Dual Stage Rotary Vane Vacuum Pump, PFPE Fluid, 208-230/416-460 V, 3 Phase, 11399
Leybold D65BCS Overview:
TRIVAC B pumps are oil-sealed rotary vane pumps. The TRIVAC D 40 B and D 65 B are dual-stage pumps. The number in the type designation (40 or 65) indicates the pumping speed in m3.
TRIVAC B pumps can pump gases and vapours and evacuate vessels or vacuum systems in the fine vacuum range.
The drive motor of the TRIVAC B is directly flanged to the pump at the coupling housing. The pump and motor shafts are directly connected by a flexible coupling. The bearing points of the pump module are force lubricated sliding bearings. All controls as well as the oil-level glass and the nameplate are arranged on the front. All connections are to be found at the sides of the pump. The oil-level glass is provided with prisms for better observation of the oil level.
The pump module consists of assembly parts which are pin-fitted so as to allow easy disassembly and reassembly. The pump module can be easily removed without special tools.

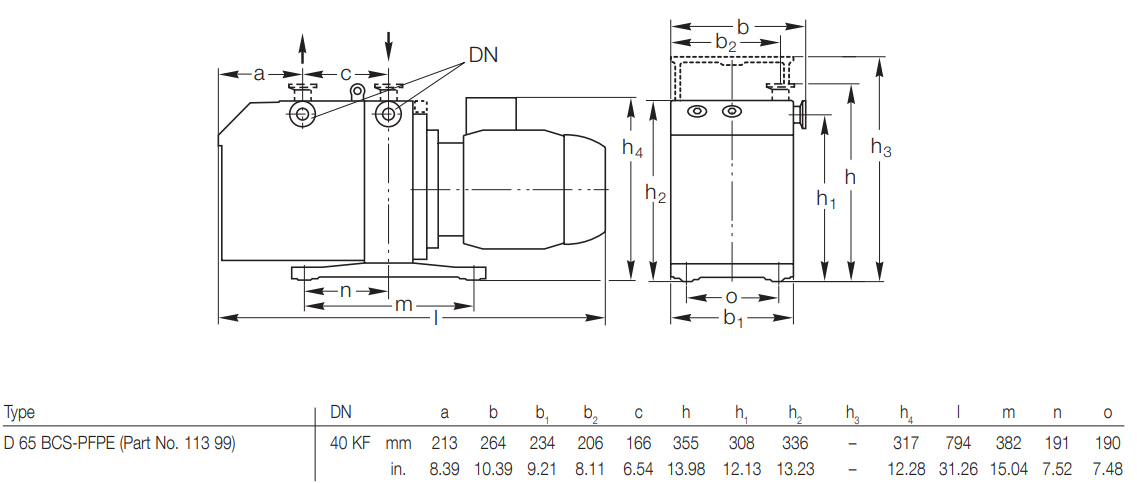

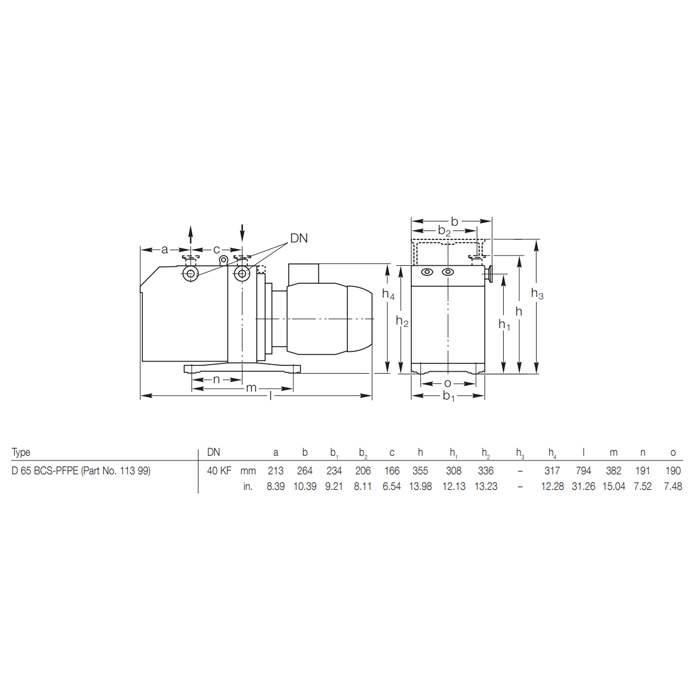

Leybold D65BCS Dimensions:
Click Here for Leybold D65BCS Manual
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all Leybold D40B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Leybold D65BCS Dual Stage Rotary Vane Vacuum Pump, PFPE Fluid, 208-230/416-460 V, 3 Phase, 11399

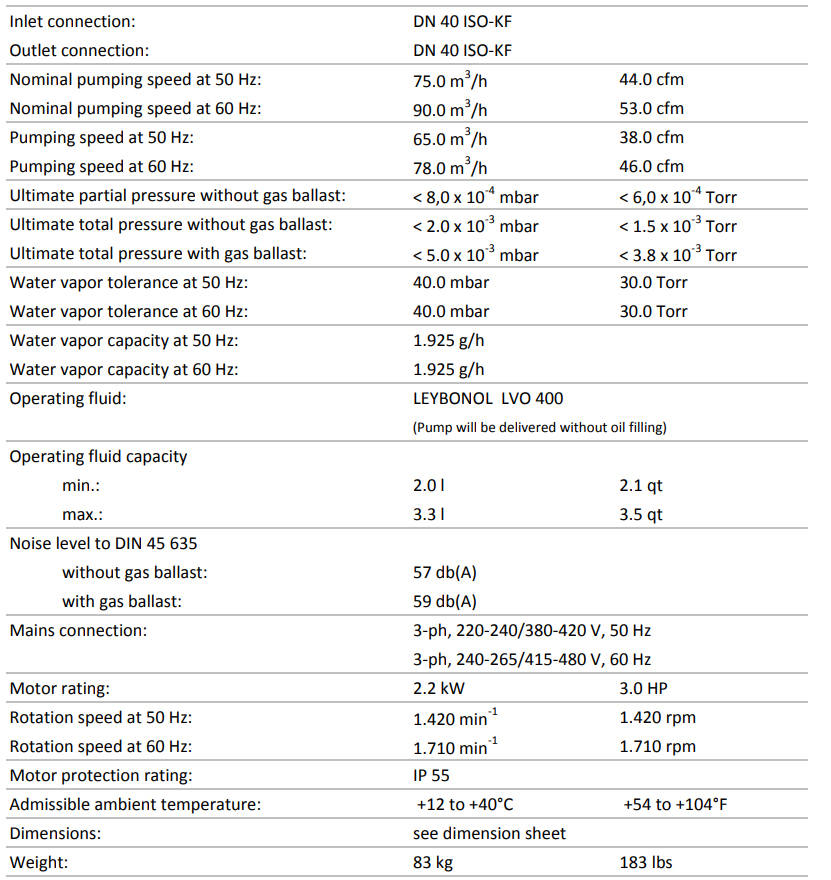

Leybold D65BCS TRIVAC Technical Data:
Click Here for Leybold D65BCS Manual
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all Leybold D40B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
