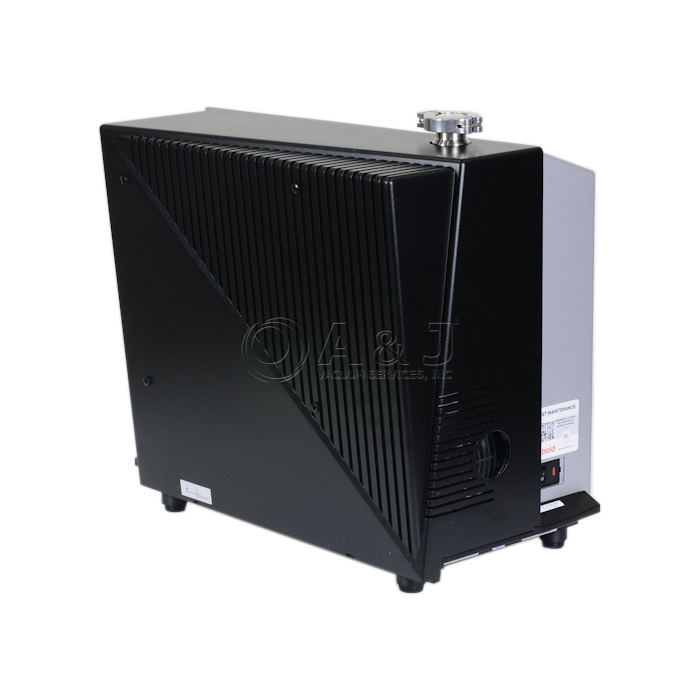

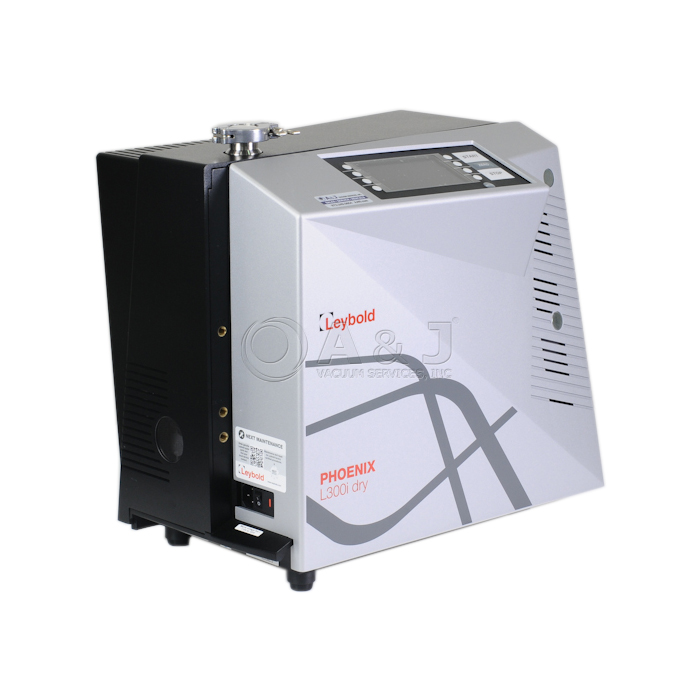

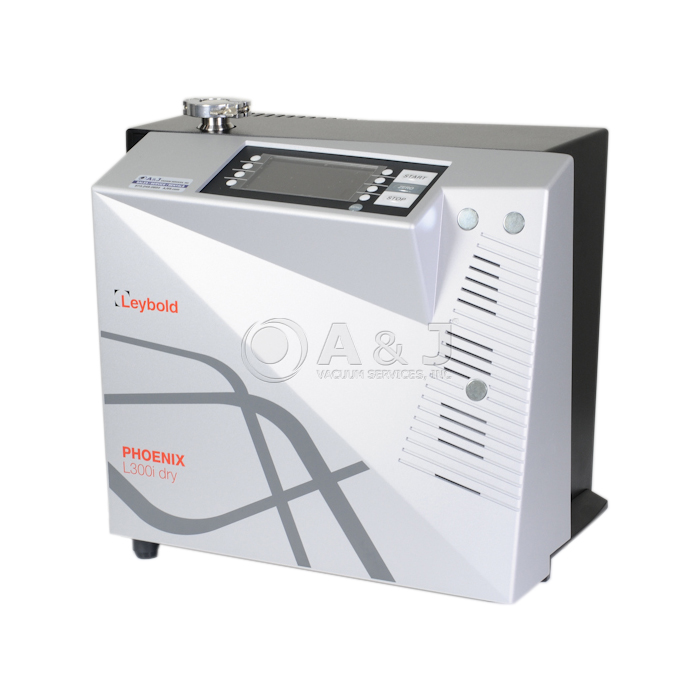

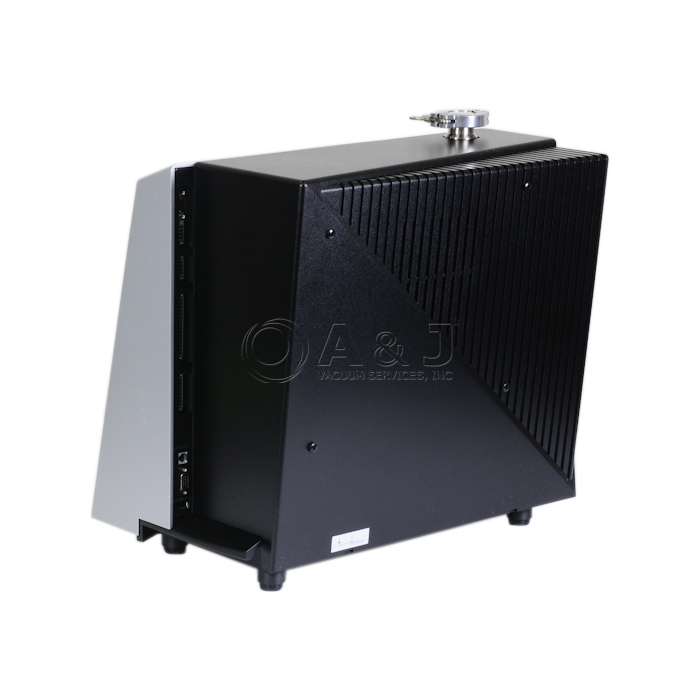

Leybold Phoenix L300i Helium Leak Detector, Oerlikon p/n 251000, Rotary Vane Pump, DEMO UNIT, 1-ph, 115 VAC, 60 HZ (US), 251000 / 251000V01
Condition:
Demo
Out of Stock
Item#:PN22681
Mfr Part#:251000 / 251000V01
Manufacturer:Leybold
Features:
Leybold Phoenix L300i Oerlikon Helium Leak Detector, 251000V01, Rotary Pump, DEMO UNIT, 1-ph, 115 VAC, 60 HZ (US), 251000V01
PLEASE NOTE: THIS ITEM HAS BEEN OBSOLETE, REPLACED WITH NEW LINE OF PHOENIX QUADRO SYSTEM. CLICK HERE TO VIEW IT PN22177.
Full Service / Repair of Leybold Phoenix L300i Helium Leak Detectors is available at AJVS Service Center. Contact Us to request service estimate.
Leybold Phoenix L300i Overview:
Leybold Phoenix L300i P/N 251000 represents next Generation in Helium Leak Testing. Phoenix L300i Helium Leak Detector opens up new domensions of productivity and reliability for your applications.
Leybold Phoenix 300i is a helium leak detector of many purposes - it is suited to service and series production testing. Becuase of its design, the Phoenix L300i is the most user friendly leak detector in its class.
Phoenix L300 Leybold Helium Leak Detectors allow to localize leaks and quantitatively determine the leak rate. The Phoenix helium leak detector permits that by evacuation of the portion to be tested so that gasses from the outside can enter through an existing leak due to the pressure difference. Upon helium is brought in front of the leak, it flows through the leak and is later pumped out by the detector. The partial pressure of helium, once in the leak detector, is measured by a mass spectrometer and is displayed as a leak rate.
Leybold Phoenix L300 Applications:
- Quality Assurance
- Ideal Tool for industrial series production testing
- Automotive Industry
- Analytical Instruments
- Systems Manufacture
- Power Station Engineering
- Research and Development
- Semiconductor Industry
- High Vacuum and Ultra-High Vacuum Engineering
Phoenix L300i Product Highlights:
- Most compact unit in class
- Quick start up (<2 min)
- Extremly fast responce
- High sensitivity
- Most robust and reliable ion source
- Flexable application areas
- Maximum mobility due to the wireless remote control RC 310 WL
Phoenix L300i Customer Benefits;
- Lowest detectable leak rate for helium <5 x 10-12 mbar l/s
- Leak detection starting at an inlet pressure of 15 mbar
- Short He recovering time (<5 min. )
- 10 display languages selectable
- Switchable for the detection of H2, 3He, and He
- Helium background suppression upon single key press (Auto-Zero)
- Trend /bargraph leak rate display
- Oil-sealed or dry compresing backing pumps for rapidevacuation of the device under test and for producing a high gas flow in the sniffer mode
- The optimised valve block ensures a significaly reduced recovery time after suffering helium contamination and high pumping speed at inlet.
PHOENIX Leak Detector Set-up and options:
- PHOENIX L300i / Oil sealed vacuum system. Optimazed leak detector for most standard applications (Ordering PN17214 / 251000)
- PHOENIX L300i Dry / Entirely oil-free vacuum system. Integrated helium contamination protection. (Ordering PN17215 / 251001V01)
- PHOENIX L300i Modul / Additional forevacuum system oil-sealed or dry, depending on the application. For applications involvingshort cycles and/or testing of large volumes.
- PHOENIX L300i Cart / Modular and mobile system; The Leybold PHOENIX L300i is configured according to customers needs.
Supperior Design Characteristics:
- Phoenix L300i offers angled operating panel for easy visibility of the instrument status
- Oil Level glass at the housing for simple oil level checks.
- Extremly long service life of the cathodes due to their Iridium/Yttrium coating.
Leybold Phoenix L300i Dimensions:
Click Here for Leybold Phoenix L300i Operating Instructions Manual
Click Here for Product Brochure
Click Here for Leybold Phoenix Leak Detector Instruments Catalog
A&J Vacuum repair / rebuild and service all Leybold Oerlikon Phoenix 300i Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Vacuum Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold Phoenix L300i Oerlikon Helium Leak Detector, 251000V01, Rotary Pump, DEMO UNIT, 1-ph, 115 VAC, 60 HZ (US), 251000V01
Leybold Phoenix L300i Technical Data:
| Minimum Detectable Helium Leak Rate: |
Vacuum Mode: < 5 x 10-12 mbar x l x s-1 |
| Minimum Detectable Helium Leak Rate: |
Sniffer Mode: < 1 x 10-7 mbar x l x s-1 |
| Minimum Detectable Hydrogen Leak Rate: |
Vacuum Mode: < 1 x 10-8 mbar x l x s-1 |
| Minimum Detectable Hydrogen Leak Rate: |
Sniffer Mode: < 1 x 10-7 mbar x l x s-1 |
| Leak Rate Measurement Range: | 1 x 10-12 to 1 x 10-1 mbar x l x s-1 |
| Measurement Ranges: | 12 decades |
| Maximum Inlet Pressure: | 15 mbar |
| Pumping Speed (50 Hz): | 1.5 cfm |
| Pumping Speed (60 Hz): | 1.8 cfm |
| Inlet Flange: | DN 25 ISO-KF |
| Weight: | 40 kg / 88 lbs |
Click Here for Leybold Phoenix L300i Operating Instructions Manual
Click Here for Product Brochure
Click Here for Leybold Phoenix Leak Detector Instruments Catalog
A&J Vacuum repair / rebuild and service all Leybold Oerlikon Phoenix 300i Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Vacuum Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
