- 6" ANSI Inlet Flange
- DN 63 ISO Outlet Flange
- P/N 89489
- Fully Remanufactured
Shopping Cart ( )
Leybold Turbovac TMP 1000 C Turbo Pump, 6" ANSI, DN 63 ISO, 89489
Condition:
Remanufactured
Call us for Availability
Item#:PN16039
Mfr Part#:89489
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold Turbovac TMP 1000 C Turbo Pump, 6" ANSI, DN 63 ISO, 89489
Leybold Turbovac TMP 1000 C Features:
- Oil-free pumps for the generation of clean high and ultra-high vacuum conditions
- High performance in any orientation
- High degree of operating reliability
- Easy to operate
- Compact design
Turbovac TMP 1000 C / 89489 Overview:
The Leybold TURBOVAC TMP1000C turbomolecular pumps featuring grease-lubricated bearings. These TMP1000C Turbo Pump units are engineered to pump vacuum chambers down to pressures in the high-vacuum range. A NT20 TURBOTRONIK frequency converter and a forevacuum pump are required for the operation of the TURBOVAC.
These TMP1000C Turbo Pumps are NOT suitable for operation without a forevacuum pump.
Leybold TMP 1000C Turbomolecular pumps are NOT suitable for pumping either gases which contain dust particles or liquids.
Turbomolecular pumps without a purge gas feature are suitable only for moving air or inert gases. They are NOT suitable for pumping aggressive or reactive gases.
TURBOVAC versions identified with a "C" in the model number are equipped with this purge gas feature, it protects only the bearing area and the motor in the TURBOVAC.
In particular the TURBOVAC TMP 1000C pumps are very successfully operated in mass spectroscopy applications, gas and liquid chromatographic analysis, CD, DVD and hard disk production, manufacturing of large-surface optical layers, and non-corrosive semiconductor fabrication processes.
Turbovac TMP1000C Applications:
- Coating:
- Data storage/magnetic Flat panel displays
- Optical coating
- Large area coating
- Decorative coating
- Metallization
- Wear protection
- Metallurgy
- Research and Development:
- Surface analysis
- UHV/XHV systems
- Particle accelerators
- Fusion experiments
- Space simulation
- Semiconductor Processes:
- Load locks and transfer chambers
A&J Vacuum repair / rebuild and service all Leybold Oerlikon TMP 1000 C Turbo Pumps along with all other Leybold Turbo Pumping Stations, Leybold Vacuum Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold Turbovac TMP 1000 C Turbo Pump, 6" ANSI, DN 63 ISO, 89489

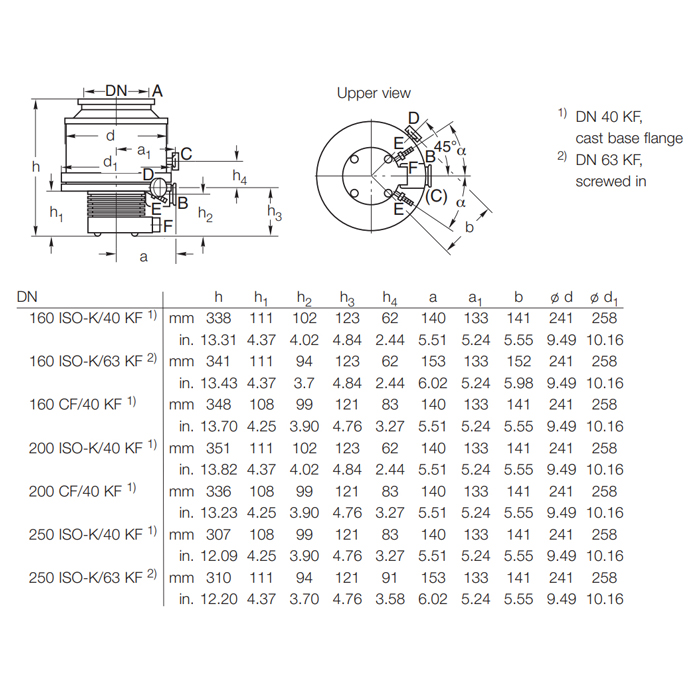

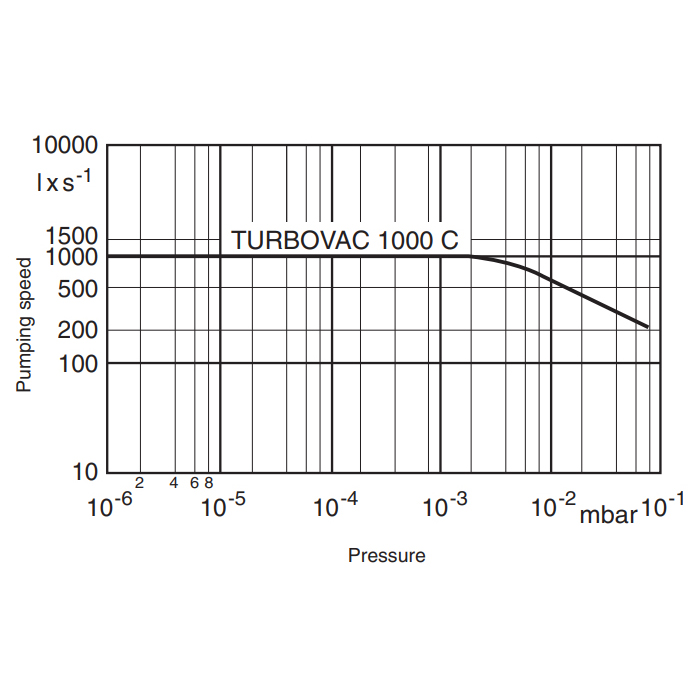

Leybold Turbovac TMP 1000 C Technical Data:
A&J Vacuum repair / rebuild and service all Leybold Oerlikon TMP 1000 C Turbo Pumps along with all other Leybold Turbo Pumping Stations, Leybold Vacuum Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN07144
Mfr Part#:85765
Condition: Out of Stock
New
$595.00
Item#:PN07145
Mfr Part#:85766-000-5M
Condition: In Stock
New
In Stock
$599.46
Item#:PN07146
Mfr Part#:85767
Condition: Out of Stock
New
$739.54
Item#:PN07147
Mfr Part#:85768
Condition: In Stock
New
In Stock
$1,199.99
Item#:PN18227
Mfr Part#:800075V0001
Condition: Out of Stock
New
$5,994.00
Item#:PN18228
Mfr Part#:800075V0002
Condition: Out of Stock
Discontinued
$6,299.99
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
