- DN 40-KF Inlet Flange
- KF16 Outlet Flange
- 85664
- Fully Remanufactured
Shopping Cart ( )
Leybold Turbovac TMP 35LS Turbo Pump, ISO 63, 85664
Condition:
Remanufactured
Call us for Availability
Item#:PN20607
Mfr Part#:85664
Manufacturer:Leybold
Price upon request
CONTACT US
Features:

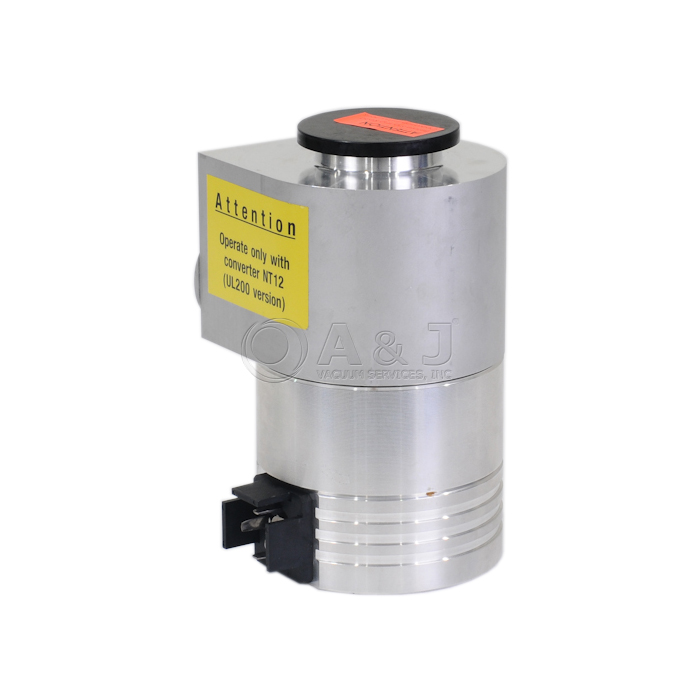

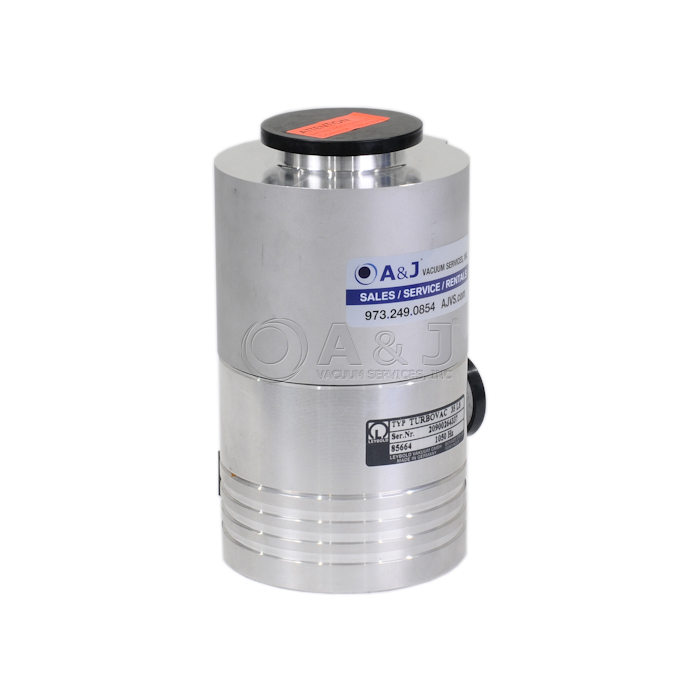

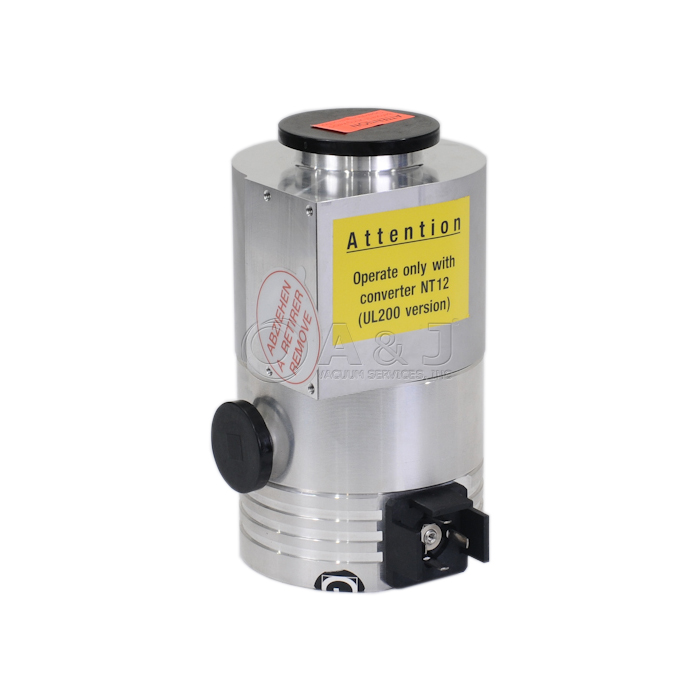

Leybold Turbovac TMP 35LS Turbo Pump, ISO 63, 85664
Turbovac TMP 35LS / 85664 Overview:
The TURBOVAC 35LS / PN 85664 was designed specificaly for Leybold, Inficon and Oerlikon Helium Leak Detectors.
Leybold TMP 35LS turbomolecular pumps featuring grease-lubricated bearings. These units are engineered to pump vacuum chambers down to pressures in the high-vacuum range. A TURBOTRONIK NT frequency converter and a forevacuum pump are required for the operation of the TURBOVAC TMP-35LS.
These Leybold TMP 35 LS Turbo Pumps are not suitable for operation without a forevacuum pump.
Turbovac 35 Turbomolecular pumps without a purge gas feature are suitable only for moving air or inert gases. They are not suitable for pumping aggressive or reactive gases.
Corrosive gases (such as chlorine) can destroy the rotors.
A&J Vacuum Repair / Rebuild and Service Oerikon Leybold Turbovac TMP 35LS Turbo Vacuum Pumps, Oerlikon Leybold Booster Pumps along with all other Leybold Vacuum Rotary Vane Pumps, Leybold Dry Scroll Pump repair, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold Turbovac TMP 35LS Turbo Pump, ISO 63, 85664

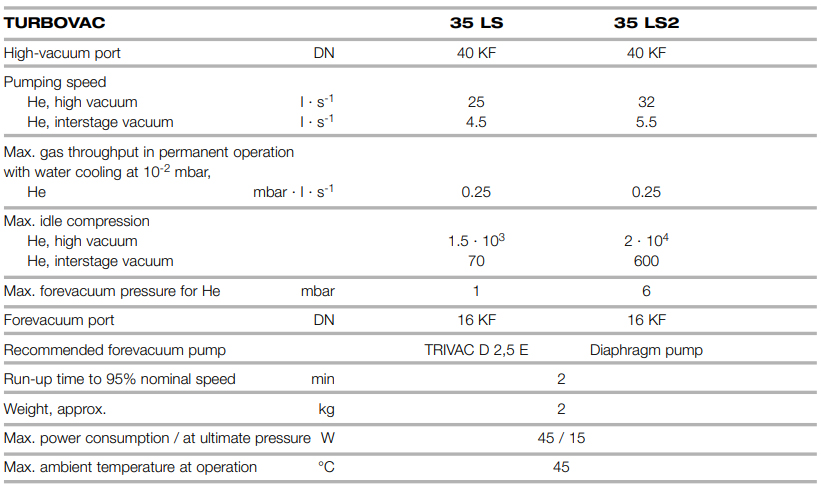

Leybold Turbovac TMP 35LS Technical Data:
A&J Vacuum Repair / Rebuild and Service Oerikon Leybold Turbovac TMP 35LS Turbo Vacuum Pumps, Oerlikon Leybold Booster Pumps along with all other Leybold Vacuum Rotary Vane Pumps, Leybold Dry Scroll Pump repair, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
