- MFG P/N 85400
- NW KF 40 Inlet Flange
- Fully Remanufactured
- Like New !
Shopping Cart ( )

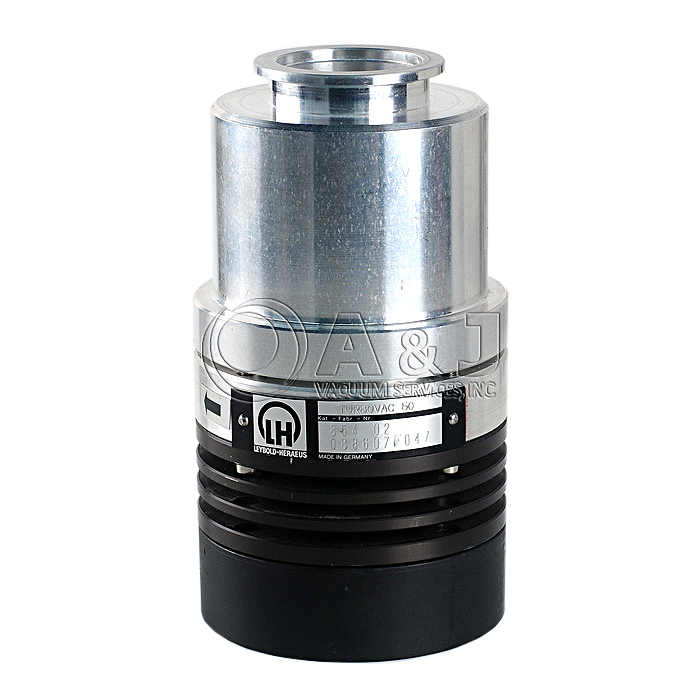

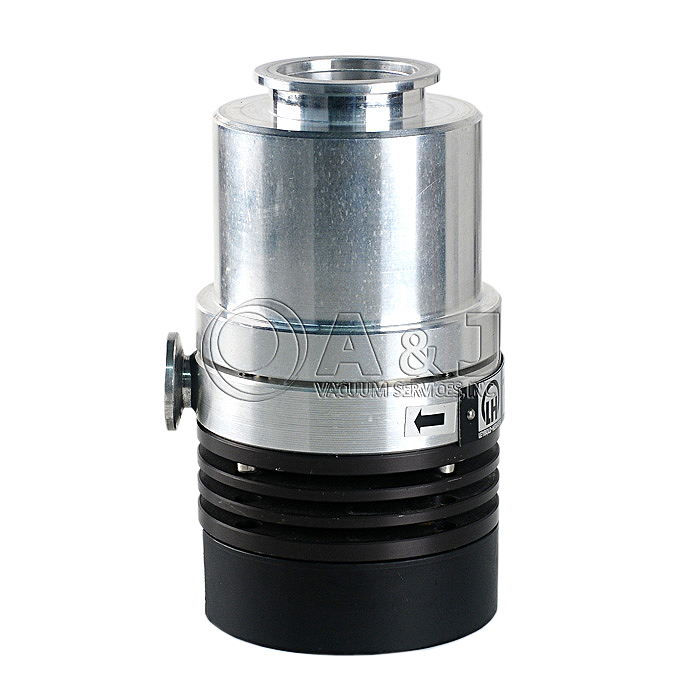

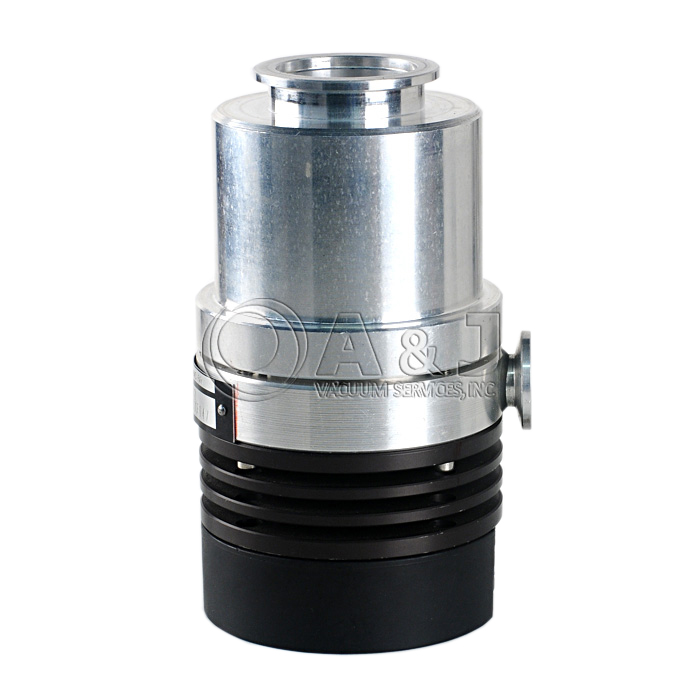

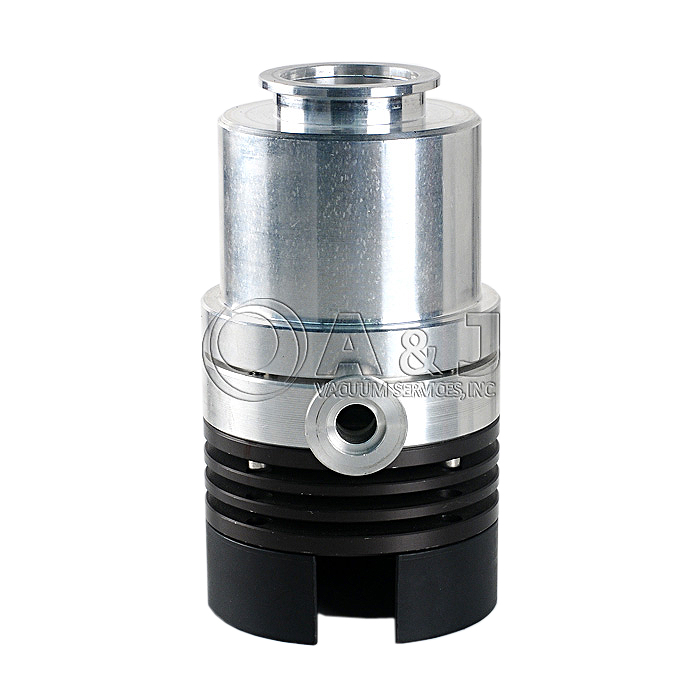

Leybold Turbovac TMP 50 Turbo Pump, KF 40, 85400
Condition:
Remanufactured
Call us for Availability
Item#:PN00205
Mfr Part#:85400
Manufacturer:Leybold
Features:
Leybold Turbovac TMP 50 Turbo Pump, KF 40, 85400
Turbovac TMP 50 / 85400 Overview:
The Leybold TURBOVAC TMP50 P/N 85400 turbomolecular pumps featuring grease-lubricated bearings. These units are engineered to pump vacuum chambers down to pressures in the high-vacuum range. A TURBOTRONIK NT 10 frequency converter and a forevacuum pump are required for the operation of the TURBOVAC TMP-50
These Leybold TMP 50 Turbo Pumps are not suitable for operation without a forevacuum pump.
Leybold TMP50 Turbomolecular pumps are not suitable for pumping either gases which contain dust particles or liquids.
Turbovac 50Turbomolecular pumps without a purge gas feature are suitable only for moving air or inert gases. They are not suitable for pumping aggressive or reactive gases.
Leybold TURBOVAC TMP 50 versions identified with a “C” in the model number are equipped with this purge gas feature, it protects only the bearing area and the motor in the TURBOVAC.
Some media (such as aluminum trichloride) can sublime inside the pump and form deposits. Thick deposits reduce the play between moving parts to the point that the pump could seize. In some processes deposits can be prevented by heating the pump. Please consult with us in case such problems arise.
Corrosive gases (such as chlorine) can destroy the rotors.
During operation the pressure inside the TURBOVAC TMP50 turbo pump is so low that there is no danger of ignition (at pressures below about 100 mbar, 75 Torr). A hazardous condition will be created if flammable mixtures enter the hot pump at pressures above 100 mbar (75 Torr). During operation the pump can reach temperatures as high as 120°C (248 °F). Sparks could occur in case of damage to the pump and these could ignite explosive mixtures.
A&J Vacuum Repair / Rebuild and Service Oerikon Leybold Turbovac TMP 50 Turbo Vacuum Pumps, Oerlikon Leybold Booster Pumps along with all other Leybold Vacuum Rotary Vane Pumps, Leybold Dry Scroll Pump repair, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold Turbovac TMP 50 Turbo Pump, KF 40, 85400

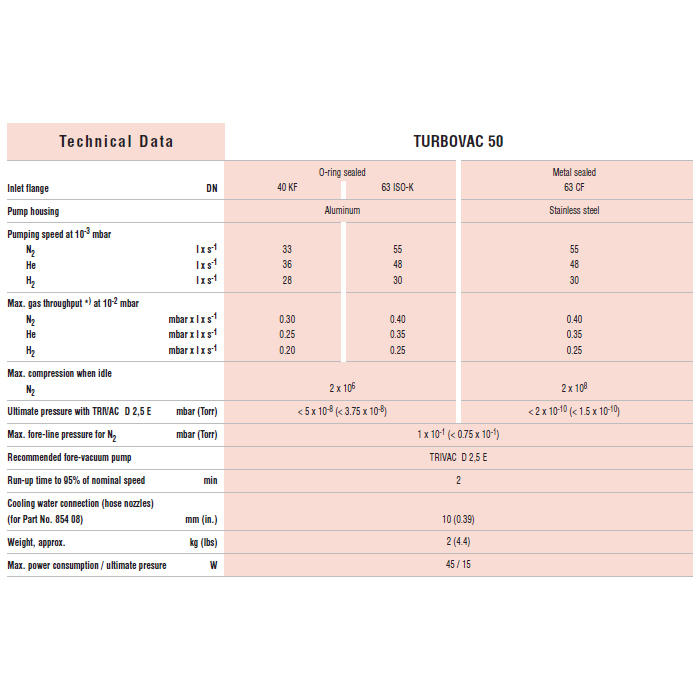

Leybold Turbovac TMP 50 Technical Data:
A&J Vacuum Repair / Rebuild and Service Oerikon Leybold Turbovac TMP 50 Turbo Vacuum Pumps, Oerlikon Leybold Booster Pumps along with all other Leybold Vacuum Rotary Vane Pumps, Leybold Dry Scroll Pump repair, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold_TurboVac_TMP_50_Brochure.pdf
Leybold TMP50, TMP151, TMP361, TMP1000, Turbovac pump, TMP 361, Turbovac
Item#:PN07837
Mfr Part#:85904
Condition: Out of Stock
Remanufactured
Out of Stock
Price upon request
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
