Leybold TW 400 Turbovac Cartridge Pump, 800160V0034
Condition:
Demo
In Stock
Item#:PN20733
Mfr Part#:800160V0034
Manufacturer:Leybold
Features:
Leybold TW 400 Turbovac Cartridge Pump, 800160V0034
TW 400 Turbovac / 800160V0034 Overview:
The Oerlikon Turbovac TW 400/300 Turbo Pump is a dual inlet Turbo Pump designed for Mass Spectrometers Instruments to evacuate up to three vacuum chambers. TW 400/300 have a mounting housing and is designed to be integrated into a system.
Oerlikon TW400 Turbo Pumps are suitable for pumping air and clean gases.
The TW 400/300 pump comprises essentially a multi-stage rotor with the stator group, and the drive. The first section of the rotor are two turbomolecular pump stages while the second section represents a Holweck stage.
The Holweck pumping stage increases the permissible forevacuum pressure level markedly when compared with the classical turbomolecular pump. The pumps have gas inlets into the turbo stages, the triple-inlet pumps have a third gas inlet into the Holweck stage. The two triple-inlet pumps are very similar, they differ mainly in the Holweck stage and the operating speed.
A&J Vacuum also repair / rebuild and service Oerlikon Turbo TW400 800160V0034 Turbo Pump repair and TW 400/300 Turbo Pumps along with all other Oerlikon Leybold Vacuum Rotary Vane Pumps, Oerlikon Dry Scroll Pump repair, Oerlikon Leybold Leak Detector Repair and all other Leybold Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold TW 400 Turbovac Cartridge Pump, 800160V0034

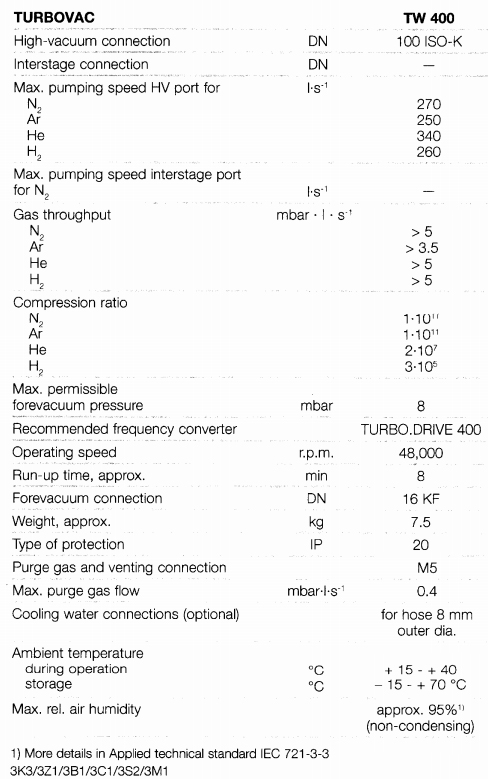

Leybold TW 400 Turbovac Technical Data:
A&J Vacuum also repair / rebuild and service Oerlikon Turbo TW400 800160V0034 Turbo Pump repair and TW 400/300 Turbo Pumps along with all other Oerlikon Leybold Vacuum Rotary Vane Pumps, Oerlikon Dry Scroll Pump repair, Oerlikon Leybold Leak Detector Repair and all other Leybold Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
