Pfeiffer HiScroll 6 / 12 /18 Scroll Pump Push-in Fitting adapter G 1/8" with sealing o-ring, for hose connection (8/6 mm) P4131029G / P 4131 029G

A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, and HiScroll 18 / PD S30 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.

Pfeiffer RPT 010 Digital Piezo Pirani Sensor for HiScroll 6 / 12 /18 Scroll Pump PE100183-X / P 100 183-X

Pfeiffer Vacuum RPT010 Digital Pirani Gauge Sensor is designed to fit the following Pfeiffer HiScroll Dry Scroll Vcuum Pumps;

Hiscroll 6 / PD S10 000 / PDS10000

HiScroll 12 / PDS20000 /  PD S20 000

HiScroll 188 / PDS30000 /  PD S30 000

Pfeiffer RPT 010 Characteristics:

• Pressure range of 1 x 10-4 -1200 hPa
• Stable, coarse vacuum measurement independent of gas type
• Compact dimensions
• Direct installation, no additional power supply
• No additional measurement cable required

The sensor PD 100 100-T has two measurement systems:

● Pirani measurement system

● Piezo-resistive measurement system

The sensor responds to measured value requests, type requests and adjustment commands. Signals are evaluated via the interfaces of the electronic drive unit using a Pfeiffer Vacuum display and control unit or external units (e.g. PLC or PC).

A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, and HiScroll 18 / PD S30 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.

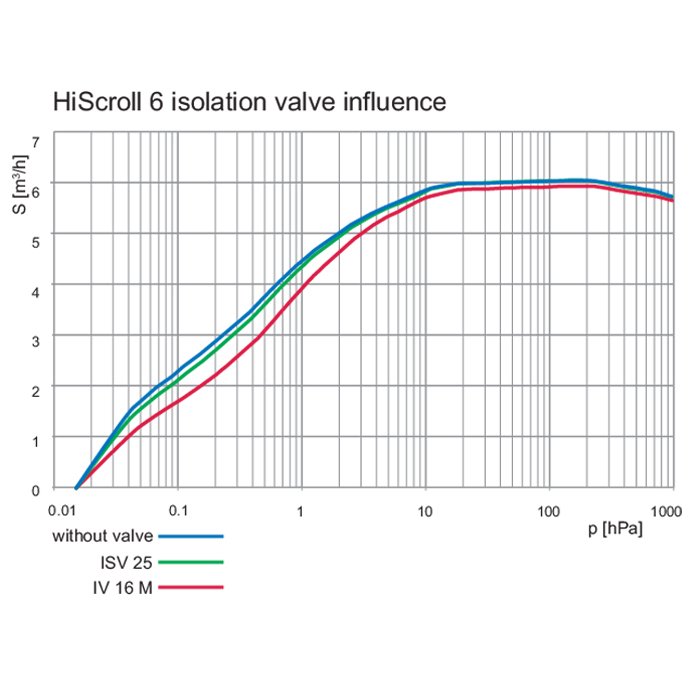

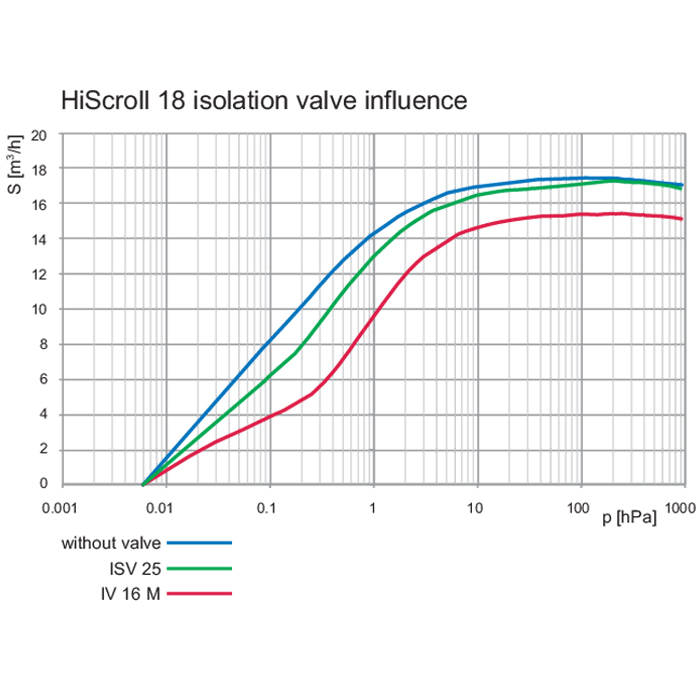

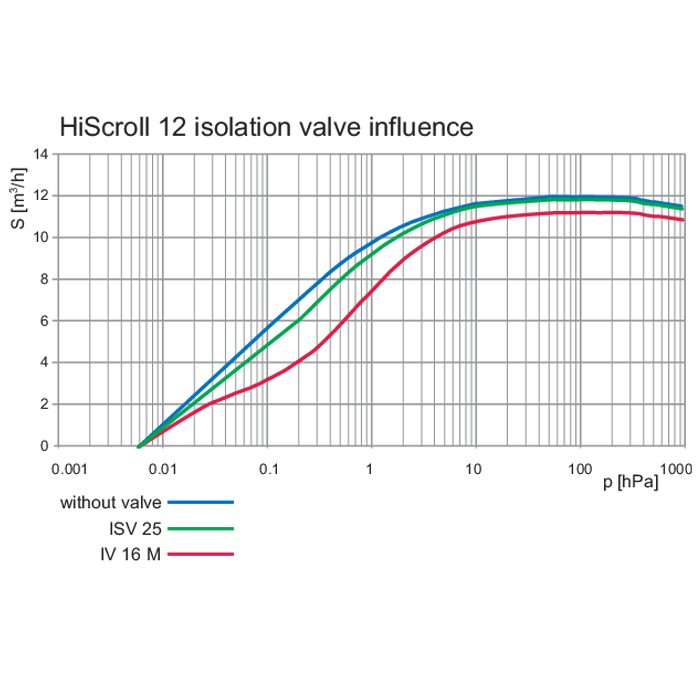

Pfeiffer IV 16 M, Vacuum Automated Safety Valve Package for Turbo Pump and HiScroll, 24 VDC, DN 25, PD Z10 050 / PDZ10050

Pfeiffer IV 16 M Key Features:

• 24 VDC Input Voltages
• Valve is normally closed
• Direct installation on the vacuum flange HiScroll, control via accessory port
• This does not have ATEX certification

IV 16 M / PDZ10050 Overview:

The vacuum safety valve is a normally closed, direct-acting 2/2-way solenoid valve. When de-energized, the valve remains shut. In systems where vacuum pumps discharge directly to the atmosphere, the valve isolates the vacuum chamber from the supply line, preventing unintended pressure increases. In turbopump applications, it is installed in the fore-vacuum line to safeguard both the process vacuum and the turbopump from accidental venting or backflow, particularly after the backing pump is turned off or during a power outage.

IV 16 M Scope of Delivery:

• Valve body with valve coil
• Fastening pack with components for installation
• 1x preconfigured cable with AccessLink and cable socket
• Operating instructions

IV 16 M Applications:

• Feature to protect against inadvertent venting of a turbopump after backing pump has been turned off.
• Feature to protect against inadvertent venting after vacuum pump has been turned off.
