Pfeiffer Adixen ASM 310 Portable Dry Helium Leak Detector, 90-240V 50/60Hz Universal Voltage, BSAA0000MM9A
Item#: PN17203 Mfr Part#: BSAA0000MM9A / BSAA0000MM9A Manufacturer: Pfeiffer Vacuum
Condition: New In Stock
New Pfeiffer Adixen ASM 310 Portable Dry Helium Leak Detector, 90-240V 50/60Hz Universal Voltage, BSAA0000MM9A

Features:
  • Three Detectable Gases: 4He, 3He, H2
  • Lightweight & Easy to Handle; Weighs Just 21 kg / 46 lbs
  • Oil-Free Pumping System
  • Utilizes DN 25 ISO-KF Model Inlet Flange

PRICE: $33,400.00
WEB SAVINGS: $8,850.00
YOU PAY: $24,550.00
Item#: PN17203 Mfr Part#: BSAA0000MM9A / BSAA0000MM9A
Pfeiffer Adixen ASM 310 Portable Dry Helium Leak Detector, 90-240V 50/60Hz Universal Voltage, BSAA0000MM9A
Item#: PN17203 Mfr Part#: BSAA0000MM9A / BSAA0000MM9A Manufacturer: Pfeiffer Vacuum

Pfeiffer Adixen ASM 310 Portable Dry Helium Leak Detector, 90-240V 50/60Hz Universal Voltage, BSAA0000MM9A



Pfeiffer Adixen ASM 310 Portable Helium Leak Detector - Product Overview:


The Pfeiffer ASM 310 is the lightest unit leak detector of its category. It has various options for importing data such as photos (BMP format). Pfeiffer ASM 310 is perfectly suited for leak testing applications where portability is a must. Pfeiffer ASM 310 leak detector can be used to detect permeation through materials, micro-openings, porosities, etc. The means of detection is a tracer gas: Helium. Helium is so light and it can penetrate microscopic cracks very fast. Adixen ASM 310 helium leak detector has a wide measuring range capability.

The Pfeiffer Adixen ASM 310 Helium Leak Detector combines all the necessary features of a revolutionary leak detector. This version of the Adixen helium leak detector series is the lightest in its category in terms of weight, adding greater portability to the user while providing high sensitivity and pumping capacity. Adixen ASM 310 offers high performance and an oil-free pumping system ideal for eliminating any contamination.

The third generation analyzer cell of the Adixen ASM 310 Helium Leak Detector is carefully designed, thereby enabling excellent stability. It is composed of a light alloy vacuum chamber, ionization module, braking module, and equipped plate module.

The Pfeiffer Adixen ASM 310 Leak Detector comes with the ability to detect leaks with flows as miniscule as 3 x 10^(-11) mbar l/s. A variety of leak-detecting methods are available with the Adixen ASM 310, including the spray method, sniffing method, and bombing method, all of which are ideally suited for tightly-sealed objects that cannot be directly connected to the leak detector. All of these methods can be utilized to discover the possible location of the leak. Methods should be chosen according to the required measurement range as well as the required test parts.



Pfeiffer Adixen ASM 310 leak detector comes with the following parts:


  • Leak Detector
  • Tool Kit
  • Power Cable 115V
  • Power Cable 220V
  • Manuals
  • Brochure

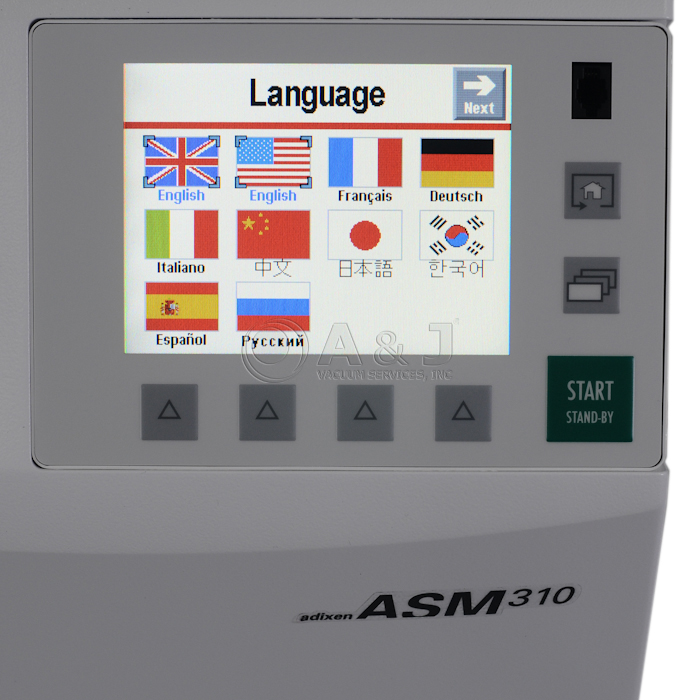

Pfeiffer/Adixen ASM 310 Control Panel:


Pfeiffer/Adixen ASM 310 Front panel, BSAA0000MM9A


Pfeiffer Vacuum Adixen ASM 310 Helium Leak Detector - Features & Benefits:


  • Ultra-Light; Weight of Only 21kg (46lbs)

  • 1 cfm Dry and Cleaning Roughing Capacity

  • 1.1 l/s Helium Pumping Speed at Inlet

  • Analyzer Cell Delivery: 3 Years of Operation Before Maintenance is Required

  • User-Friendly Interface, Customized to Meet Individual Preferences/Specifications

  • Intuitive Menu & Settings Display

  • Integrated SD Memory Card for Recording & Downloading Capacities

  • Importing Capabilities Guaranteed Through BMP Format



Pfeiffer/Adixen ASM 310 Connecting the detector to the installation:


Pfeiffer/Adixen ASM 310 Connecting the detector to the installation, BSAA0000MM9A



A Brief Description of the Science and Processes Involved in Helium Leak Detection:


Leak detection utilizing helium has a complex history dating back to the first half of the twentieth century and is used in a variety of processes and industries. Helium is used as the preferred tracer gas for eliminating leaks for a variety of reasons, including its non-flammability, non-toxicity, and inexpensiveness relative to other gases. Likewise, its inert state and small atomic size (helium has an atomic mass unit of 4 - second only to hydrogen, which has an AMU of 2) allows the gas to pass through leaks with ease. Unlike hydrogen however, helium is stable and non-explosive, providing a better alternative to be used in leak detection processes.

Utilizing the beneficial qualities of helium, a Helium Leak Detector pumps molecules of the gas into the device's analyzer cell through the use of vacuum pumps. The analyzer cell works on the principle of mass spectroscopy and measures the gas's partial pressure, displayed on the device's spectrometer. A higher reading indicates that a leak may be present, as represented by the quantity and concentration of helium molecules that have passed through a given space, as analyzed by the device. The leak detector converts this partial pressure of molecules into a flow rate. Helium leak detectors are known to be extremely precise and exhibit unparalleled accuracy in detecting leaks.

Pfeiffer/Adixen ASM 310 Helium Leak Detector, BSAA0000MM9A



Pfeiffer/Adixen ASM 310 Dimensions:


Pfeiffer/Adixen ASM 310 Helium Leak Detector, BSAA0000MM9A


Click Here for Pfeiffer Vacuum Adixen ASM 310 Helium Leak Detector Operating Instructions.


A&J Vacuum Services offers full repair/service of Pfeiffer Adixen ASM 310 Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

Pfeiffer Adixen ASM 310 Portable Dry Helium Leak Detector, 90-240V 50/60Hz Universal Voltage, BSAA0000MM9A



Pfeiffer Adixen ASM 310 Portable Helium Leak Detector - Technical Data


Backing Pump With Oil-Free Backing Pump
Backing Pump Capacity 1.7 m³/h | 1 cfm | 28.33 l/min
Detectable Gases 4He, 3He, H2
Dimensions (L x W x H) 350 x 254 x 415 mm | 13.78 x 10 x 16.34 inch
Flange Model (Inlet) DN 25 ISO-KF
I/O Interfaces Basic 15 pins I/O
Minimum Detectable Leak Rate for Helium (Sniffing Leak Detection) 1 * 10^[-8] Pa m^3/s | 7.5 * 10^[-8] Torr l/s | 1 * 10^[-7] mbar l/s
Minimum Detectable Leak Rate for Helium (Vacuum Leak Detection) 5 * 10^[-13] Pa m³/s
Noise Level < 45 dB(A)
Power Consumption Max. 300 W
Pumping Speed for He 1.1 l/s
Response Time (Sniffing Leak Detection) < 1 s
Sound Pressure Level <45 dB(A)
Start-Up Time (20°C) with Calibration < 3.5 min
Start-up Time (20°C) without Calibration < 2 min
Supply 90 – 240 V, 50/60 Hz
Test Method Vacuum and Sniffing Leak Detection
User Interface Graphic Color Touch Screen (Detachable)
Weight 21 kg | 46.3 lb

Click Here for Pfeiffer Vacuum Adixen ASM 310 Helium Leak Detector Operating Instructions.


A&J Vacuum Services offers full repair/service of Pfeiffer Adixen ASM 310 Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
