- New Touch Screen Display
- Lightweight & Easy to Handle; Weighs Just 21 kg / 46 lbs
- Oil-Free Pumping System
- Three Detectable Gases: 4He, 3He, H2
Shopping Cart ( )

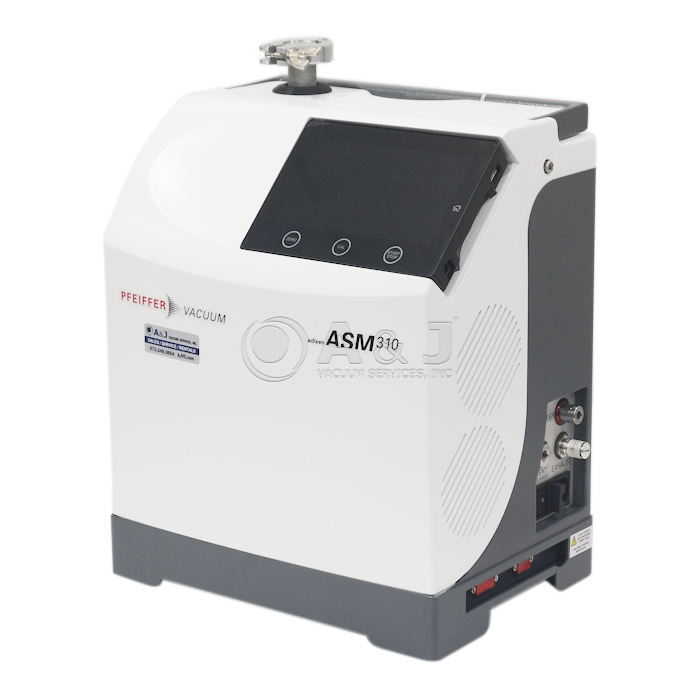

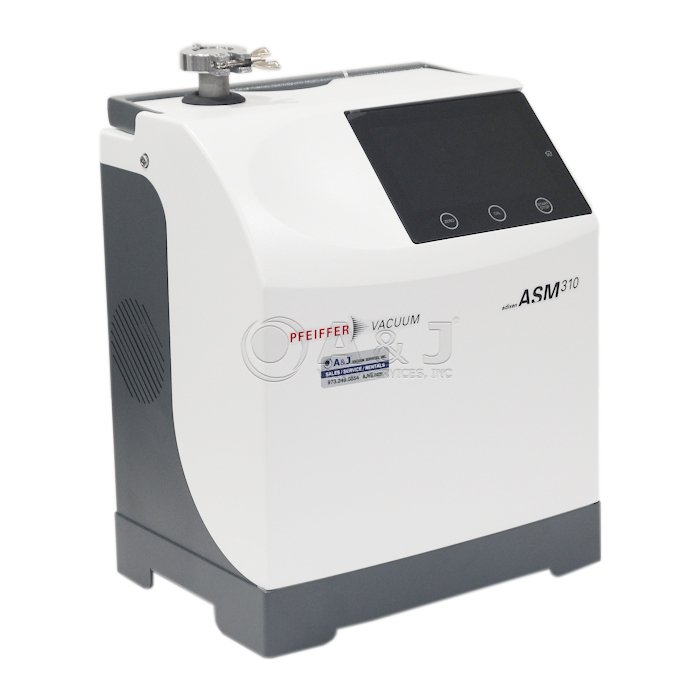

Pfeiffer Vacuum ASM 310 Portable Dry Helium Leak Detector, Touch Screen Display, 90 - 240V, 50/60Hz Universal Voltage, 2000035261 / BSAA0200MM9A
Condition:
New
Item#:PN40653
Mfr Part#:2000035261 / BSAA0200MM9A
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum ASM 310 Portable Dry Helium Leak Detector, Touch Screen Display, 90 - 240V, 50/60Hz Universal Voltage, 2000035261 / BSAA0200MM9A
Pfeiffer ASM 310 Portable Dry Helium Leak Detector Features:
- Leak Detector
- Tool Kit
- Power Cable 115V
- Power Cable 220V
- Manuals
- Brochure
- Ultra-Light; Weight of Only 21kg (46lbs)
- 1 cfm Dry and Cleaning Roughing Capacity
- 1.1 l/s Helium Pumping Speed at Inlet
- Analyzer Cell Delivery: 3 Years of Operation Before Maintenance is Required
- User-Friendly Interface, Customized to Meet Individual Preferences/Specifications
- Intuitive Menu & Settings Display
- Integrated SD Memory Card for Recording & Downloading Capacities
- Importing Capabilities Guaranteed Through BMP Format
ASM 310 Portable Dry Helium Leak Detector / 2000035261 Overview:
The Pfeiffer Vacuum ASM 310 is the lightest unit leak detector of its category. It has various options for importing data such as photos (BMP format). Pfeiffer ASM 310 is perfectly suited for leak testing applications where portability and mobility is a must. Pfeiffer ASM-310 leak detector can be used to detect permeation through materials, micro-openings, porosities, etc. The means of detection is a tracer gas: Helium. Helium is so light and it can penetrate microscopic cracks very fast. Pfeiffer ASM310 leak detector has a wide measuring range capability.
The Pfeiffer Adixen ASM 310 Helium Leak Detector combines all the necessary features of a revolutionary leak detector. This version of the ASM310 leak detector series is the lightest in its category in terms of weight, adding greater portability to the user while providing high sensitivity and pumping capacity. Adixen ASM 310 offers high performance and an oil-free pumping system ideal for eliminating any contamination.
The third generation analyzer cell of the Adixen ASM 310 Helium Leak Detector is carefully designed, thereby enabling excellent stability. It is composed of a light alloy vacuum chamber, ionization module, braking module, and equipped plate module.
The Pfeiffer Adixen ASM 310 Leak Detector comes with the ability to detect leaks with flows as miniscule as 3 x 10^(-11) mbar l/s. A variety of leak-detecting methods are available with the Adixen ASM 310, including the spray method, sniffing method, and bombing method, all of which are ideally suited for tightly-sealed objects that cannot be directly connected to the leak detector. All of these methods can be utilized to discover the possible location of the leak. Methods should be chosen according to the required measurement range as well as the required test parts.
A&J Vacuum Services offers full repair/service of Pfeiffer Adixen ASM 310 Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Vacuum ASM 310 Portable Dry Helium Leak Detector, Touch Screen Display, 90 - 240V, 50/60Hz Universal Voltage, 2000035261 / BSAA0200MM9A
Pfeiffer ASM 310 Portable Dry Helium Leak Detector Technical Data:
| Backing Pump | With oil-free backing pump |
| Connecting flange | DN 25 ISO-KF |
| Connection flange (in) | DN 25 ISO-KF |
| Detectable Gases | 4He 3He H2 |
| Dimensions (L x W x H) | 350 x 254 x 415 mm | 13.78 x 10 x 16.34 inch |
| Emission sound pressure level (EN ISO 2151) | <45 dB(A) |
| I/O Interfaces | RS-232 |
| Inlet test pressure max. | 15 hPa | 11.25 Torr | 15 mbar |
| Input voltage(s) | 90 – 240 V AC, 50/60 Hz |
| Interface: Connection, device side | Standard 15 pins I/O |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Minimum detectable leakage rate for helium (sniffing leak detection) | 1 * 10^[-8] Pa m^3/s | 7.5 * 10^[-8] Torr l/s | 1 * 10^[-7] mbar l/s |
| Minimum detectable leakage rate for helium (vacuum leak detection) | 1E-13 Pa m³/s | 7.5 · 10-13 Torr l/s | 1 · 10-12 mbar l/s |
| Operating temperature | 10 – 40 °C | 50 – 104 °F | 283.15 – 313.15 K |
| Power consumption max. | 300 W |
| Pumping speed backing pump at 50/60 Hz | 1.7 m³/h | 1 cfm | 28.33 l/min |
| Pumping speed for He max. | 1.1 l/s |
| Response time (sniffing leak detection) | < 1 s |
| Start-up time (20°C) with calibration | 3.5 min |
| Start-up time (20°C) without calibration | 2 min |
| Test method | Vacuum leak detection Sniffing leak detection |
| User interface | Graphic color touch screen (detachable) |
| Weight | 21 kg | 46.3 lb |
A&J Vacuum Services offers full repair/service of Pfeiffer Adixen ASM 310 Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer ASM 310 Touch Screen RS Communication Protocol Memo BSAA0200MM9A ASM310
Pfeiffer ASM 310 Touch Screen Manual BSAA0200MM9A, ASM310
Pfeiffer ASM 310 Touch Screen RS Communication Instructions BSAA0200MM9A, ASM310
Pfeiffer ASM 310 Touch Screen Short Manual BSAA0200MM9A, ASM310
