- Pfeiffer OEM Part
- P/N 795706
- for ASM 310, ASM 340
- Ready to Install
Shopping Cart ( )

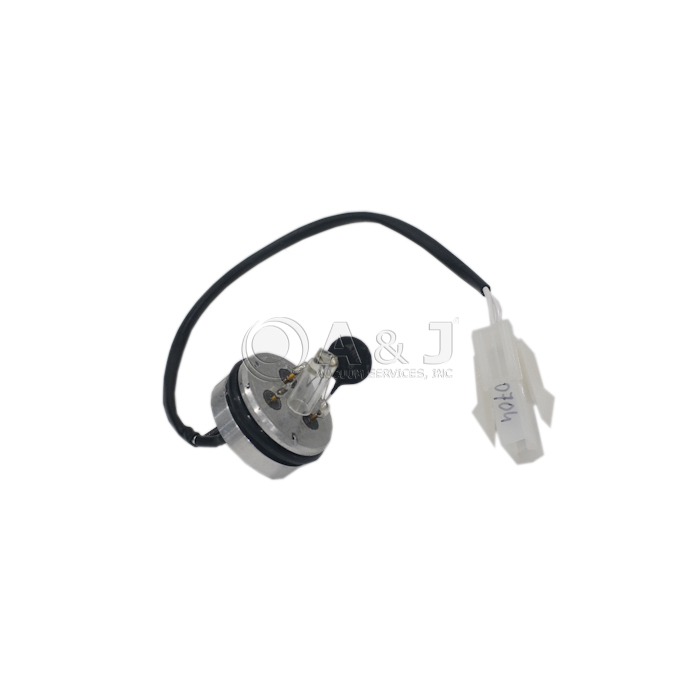

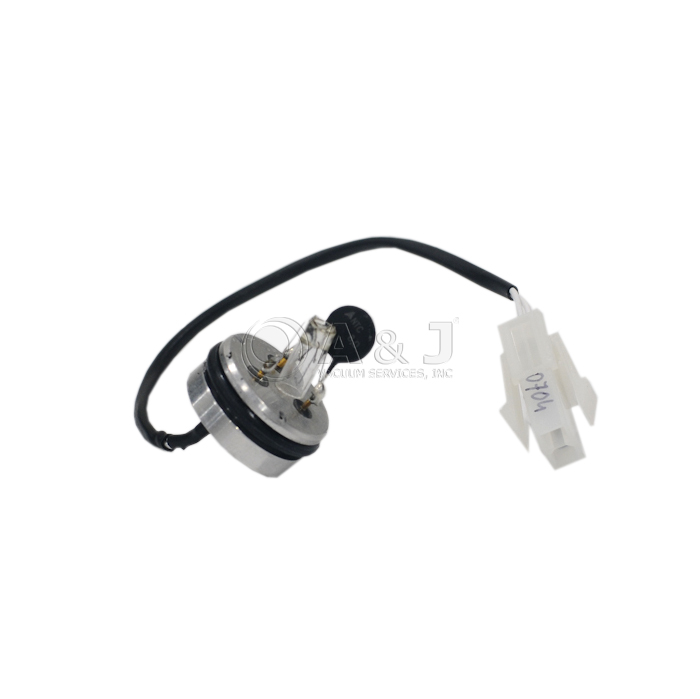

Gauge PI1 Pfeiffer Adixen ASM 310, ASM 340 Helium Leak Detector, Aluminum, 2000039607 / 795706
Condition:
New
In Stock
Item#:PN22714
Mfr Part#:2000039607 / 795706
Manufacturer:Pfeiffer Vacuum
Features:
Gauge PI1 Pfeiffer Adixen ASM 310, ASM 340 Helium Leak Detector, Aluminum, 2000039607 / 795706
Gauge Pl1 Overview:
Adixen ASM-310 and ASM-340 P/N 795706 Helium Leak Detector PI1 Gauge is compatible with the following leak detectors:
- ASM 310
- ASM 340
This is Original Pfeiffer PI1 Gauge, Leak Detector not Included !
The Pfeiffer ASM340 leak detector is a fully automatic, multi-purpose, compact table top dry helium / hydrogen leak detector. It consists of a Pfeiffer hybrid turbo drag vacuum pump and integrated oil-free roughing/backing pump. Ideally suited for repetitive or non-repetitive sequential testing applications requiring ultra-clean operations for both inboard vacuum testing and outboard sniffer testing.
The ASM 340 D has a high sensitivity of 5E-12 atm. cc/sec helium for inboard vacuum testing and 5E-9 atm cc/sec helium for outboard sniffer testing. It has a high quantitative inlet port test pressure up to 25 mbar and 100 mbar qualitative testing for massive leak identification. A high helium pumping speed (2.5 l/s) allows for quick response and clean up time.
A&J Vacuum also repair / rebuild and service Pfeiffer ASM340, Adixen ASM-340, Pfeiffer ASM-310, Pfeiffer ASM 192 Pfeiffer HLT560, HLT 570 and HLT572 Helium Leak Detectors along with all other PfeifferTurbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Gauge PI1 Pfeiffer Adixen ASM 310, ASM 340 Helium Leak Detector, Aluminum, 2000039607 / 795706
Gauge Pl1 Overview:
Adixen ASM-310 and ASM-340 P/N 795706 Helium Leak Detector PI1 Gauge is compatible with the following leak detectors:
- ASM 310
- ASM 340
This is Original Pfeiffer PI1 Gauge, Leak Detector not Included !
The Pfeiffer ASM340 leak detector is a fully automatic, multi-purpose, compact table top dry helium / hydrogen leak detector. It consists of a Pfeiffer hybrid turbo drag vacuum pump and integrated oil-free roughing/backing pump. Ideally suited for repetitive or non-repetitive sequential testing applications requiring ultra-clean operations for both inboard vacuum testing and outboard sniffer testing.
The ASM 340 D has a high sensitivity of 5E-12 atm. cc/sec helium for inboard vacuum testing and 5E-9 atm cc/sec helium for outboard sniffer testing. It has a high quantitative inlet port test pressure up to 25 mbar and 100 mbar qualitative testing for massive leak identification. A high helium pumping speed (2.5 l/s) allows for quick response and clean up time.
A&J Vacuum also repair / rebuild and service Pfeiffer ASM340, Adixen ASM-340, Pfeiffer ASM-310, Pfeiffer ASM 192 Pfeiffer HLT560, HLT 570 and HLT572 Helium Leak Detectors along with all other PfeifferTurbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
