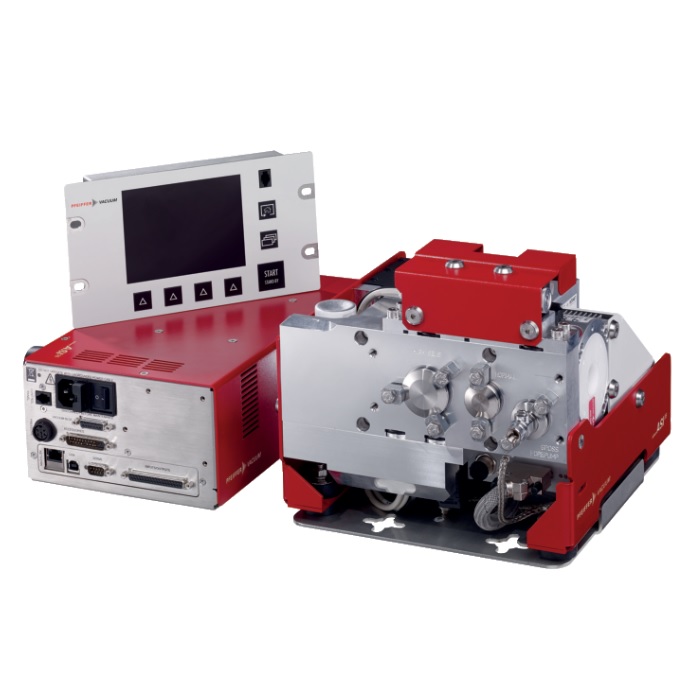

Pfeiffer Adixen Calibrated Leak for ASI 35, ASM 340, ASM 390 and ASM 392 Helium Leak Detectors, 3G.2 (50 cc) 121528S
Pfeiffer Calibrated Leak 121528S Overview:
Replacement Tools / Spare parts

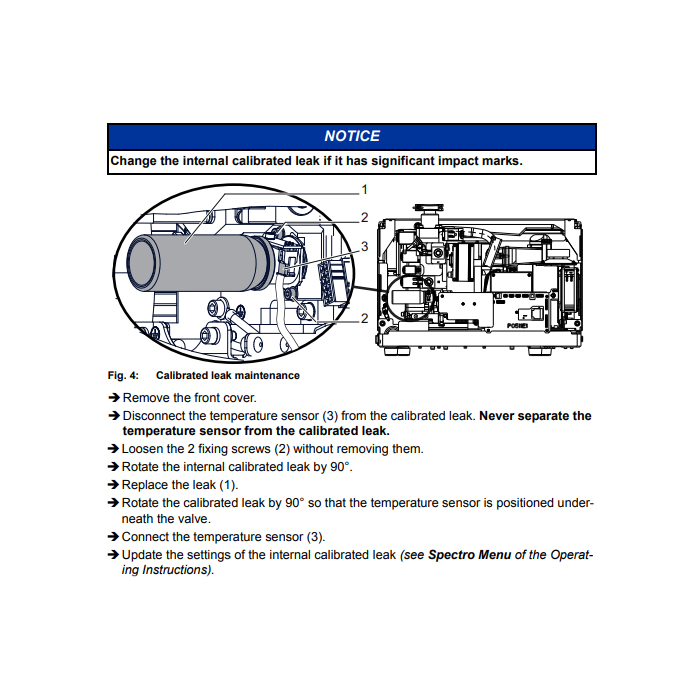

- 3 mm Allen key supplied in the maintenance kit
- Internal calibrated leak (see 9)
- Remove the front cover.
- Disconnect the temperature sensor (3) from the calibrated leak. Never separate the temperature sensor from the calibrated leak.
- Loosen the 2 fixing screws (2) without removing them.
- Rotate the internal calibrated leak by 90°.
- Replace the leak (1).
- Rotate the calibrated leak by 90° so that the temperature sensor is positioned underneath
the valve. - Connect the temperature sensor (3).
- Update the settings of the internal calibrated leak (see Spectro Menu of the Operating
Instructions). - Fits ASM340, ASM380, ASM390, ASM392
Pfeiffer Adixen Calibrated Leak for ASI 35 ASM 340, ASM 390 and ASM 392 Helium Leak Detectors, 3G.2 (50 cc) 121528S
Pfeiffer Calibrated Leak 121528S Overview:
Replacement Tools / Spare parts
- 3 mm Allen key supplied in the maintenance kit
- Internal calibrated leak (see 9)
- Remove the front cover.
- Disconnect the temperature sensor (3) from the calibrated leak. Never separate the temperature sensor from the calibrated leak.
- Loosen the 2 fixing screws (2) without removing them.
- Rotate the internal calibrated leak by 90°.
- Replace the leak (1).
- Rotate the calibrated leak by 90° so that the temperature sensor is positioned underneath
the valve. - Connect the temperature sensor (3).
- Update the settings of the internal calibrated leak (see Spectro Menu of the Operating
Instructions). - Fits ASM340, ASM380, ASM390, ASM392
