Calibrated leak ASM 122 / ASM 142 / ASM 310, internal 50 CC NO HZ, Pfeiffer Adixen ASM142 / ASM310, 2000049790 / 109241

Calibrated internal leak for ASM 122 / ASM142 / ASM310 Leak Detector Overview:

Compatible with Pfeiffer Adixen ASM-122, ASM-142 and ASM-310 Leak Detector.

Adixen ASM 122

Pfeiffer Adixen ASM 142

Pfeiffer Adixen ASM 142D

Pfeiffer Adixen ASM 310D

Calibrated internal leak p/n 109241 Technical Data:

50 CC

PN 109241

Calibrated leak for Pfeiffer ASM 306 S, 100% Helium, Leak Rate Between 4 and 6 x10-5 mbar l/s, 2000046212 / 127388

Calibrated leak for ASM 306S Leak Detector Overview:

• Helium (100%) calibrated leak for ASM306 S
• Leak rate value between 4 and 6 · 10-5 mbar l/s
• Pressurized calibrated leak subject to transport regulation

Calibrated leak for ASM 306S Order number 127388

Calibrated leak for ASM 306S Leak Detector Overview:

• Helium (100%) calibrated leak for ASM306 S
• Leak rate value between 4 and 6 · 10-5 mbar l/s
• 2 years lifetime
• Pressurized calibrated leak subject to transport regulation

Calibrated leak for ASM 306S Order number 127388

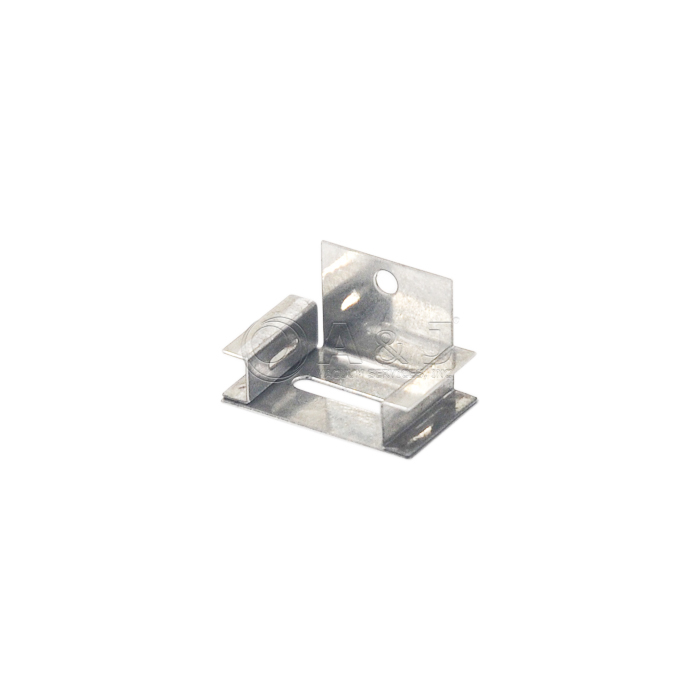

Filament Electron Collector for Pfeiffer Adixen ASM142, ASM 142, ASM182, ASM 182, 2000051500 / 101127

Filament  for Alcatel Adixen Helium Leak Detectors models ASM 10, ASM 50, ASM  51, ASM 110, ASM 120, ASM 142, ASM 150, ASM 151, ASM 180, 181 TD+, ASM 182, ASM 192 T Leak Detectors, 2000052200 / 053146

Filament Overview:

Alcatel Adixen Helium Leak Detector Filament is compatible with the following leak detectors:

• ASM 10
• ASM 50
• ASM 51
• ASM 110
• ASM 120 H
• ASM 121 H
• ASM 142
• ASM 150
• ASM 151
• ASM 181 TD+​
• ASM 182

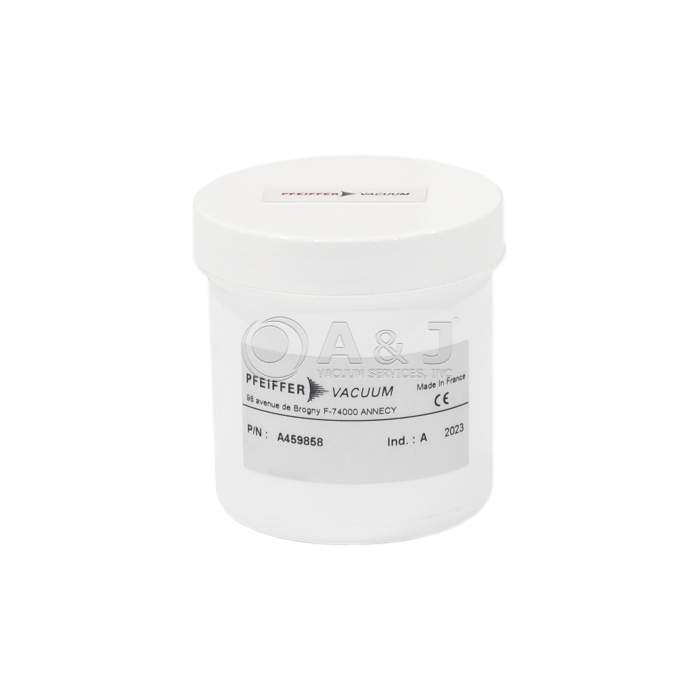

Filament and Collector Kit for Alcatel Adixen Helium Leak Detectors models ASM 10, ASM 50, ASM  51, ASM 110, ASM 120, ASM 142, ASM 150, ASM 151, ASM 180, 181 TD+, ASM 182, ASM 192 T Leak Detectors, 2000037625 / A459843

Filament and Collector kit A459843 Overview:

Alcatel Adixen Helium Leak Detector Filament is compatible with the following leak detectors:

• ASM 10
• ASM 50
• ASM 51
• ASM 110
• ASM 120 H
• ASM 121 H
• ASM 142
• ASM 150
• ASM 151
• ASM 181 TD+​
• ASM 182

Kit Includes the follwing:

• Qty. 1 Filament - p/n 053146
• Qty. 1 Electron Collector - p/n 101127
• Qty. 10 Filament mounting screws with washers

Filament for Pfeiffer Adixen ASM 310, ASM 340, ASM 380, ASM 390, and ASM 390, ASI35 Helium Leak Detector, 3G Analyzer Cell Filament Replacement, 2000048862 / 114864S

Filament Overview:

Adixen ASM-310, ASM-340, ASM-380, ASM-390, ASI35 P/N 114864S Helium Leak Detector Filament is compatible with the following leak detectors:

• ASM 310
• ASM 340
• ASM 380
• ASM 390
• ASM 392
• ASI 35

This is Original Pfeiffer Filament part, Leak Detector not Included !

A&J Vacuum also repair / rebuild and service Pfeiffer ASM-310, Adixen ASM-340, Pfeiffer ASM-380, Pfeiffer ASM 192 Pfeiffer HLT 560, HLT 570 and HLT 572 Helium Leak Detectors along with all other PfeifferTurbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Gauge PI1 Pfeiffer Adixen ASM 310, ASM 340 Helium Leak Detector, Aluminum, 2000039607 / 795706

Gauge Pl1 Overview:

Adixen ASM-310 and ASM-340 P/N 795706 Helium Leak Detector PI1 Gauge is compatible with the following leak detectors:

• ASM 310
• ASM 340

This is Original Pfeiffer PI1 Gauge, Leak Detector not Included !

The Pfeiffer ASM340 leak detector is a fully automatic, multi-purpose, compact table top dry helium / hydrogen leak detector. It consists of a Pfeiffer hybrid turbo drag vacuum pump and integrated oil-free roughing/backing pump. Ideally suited for repetitive or non-repetitive sequential testing applications requiring ultra-clean operations for both inboard vacuum testing and outboard sniffer testing.

The ASM 340 D has a high sensitivity of 5E-12 atm. cc/sec helium for inboard vacuum testing and 5E-9 atm cc/sec helium for outboard sniffer testing. It has a high quantitative inlet port test pressure up to 25 mbar and 100 mbar qualitative testing for massive leak identification. A high helium pumping speed (2.5 l/s) allows for quick response and clean up time.

A&J Vacuum also repair / rebuild and service Pfeiffer ASM340, Adixen ASM-340, Pfeiffer ASM-310, Pfeiffer ASM 192 Pfeiffer HLT560, HLT 570 and HLT572 Helium Leak Detectors along with all other PfeifferTurbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Oil Drain Fitting for Pfeiffer Adixen Pascal Series Pumps and ASM 340 WET Helium Leak Detectors, 107523 (screws into pump oil case), 2000050441 / 107523

The Pfeiffer Adixen 107523 oil drain connector is an OEM accesory made by Pfeiffer Adixen

107523 is the recommended accesory for all Pfeiffer Adixen Pascal series vacuum pumps such as:

• 2005 SD / 2005 I / 2005 C1
• 2010 SD / 2010 I / 2010 C1
• 2015 SD / 2015 I / 2010 C1
• 2021 SD / 2021 I / 2021 C1

Pfeiffer Vacuum Vacuum Pump Oil Drain Fitting makes the oil drain process a lot easier.

Please note:

Mating Female Fitting is required to comlete the oil change, please reffer to PN23918 / 107646, or to accesory tab
