Category of products: Leak Detector Accessories
- Agilent Technologies / Varian
- Stokes Vacuum
- AJVS
- Thread Sealants
- Mounting Kits
- Leak Detectors
- Shipping Crates
- Cooling Water Circulators
- Muffle Furnace
- Rotary Evaporators
- Cold Traps
Found 13 products
Item#: PN07441 Mfr Part#: 551101 Manufacturer: Inficon
PRICE: $2,390.12
WEB SAVINGS: $46.87
YOU PAY: $2,343.25

Inficon Rack Mount Controller, Display Unit, Helium Leak Detector, 551101



Inficon Rack Mount Controller Overview:


Inficon Display Unit for Rack Mount Installation.

The Modul1000 is a plug-and-play helium leak detector for universal integration into industrial leak testing systems (vacuum or sniffer mode). With flexible vacuum architecture, the Modul1000 provides the adaptability to accommodate changes in production specifications.

The Modul1000 provides maximum measurement stability and ambient conditions isolation for repeatable measurement over long periods of time in changing conditions. The ion source filament is designed for long life.

The software algorithm I.CALTM provides accurate measurements at unsurpassed speed in all measurement ranges. This enables the Modul1000 to recognize and communicate the true leak rate faster. To facilitate unit exchange, user setups are stored in the removable I.Stick for easy, fast parameter transfer.

The Modul1000 offers flexible inputs and status outputs for PLC control. Additionally, control and data acquisition is available via the RS232 communication port. The optional display unit supplies easy operation through an intuitive menu structure and software menus.

Implemented software functions allow direct valve control of test systems without the need for an additional PLC.

Features:

  • Compact design for easy integragion in benchtop or rack systems
  • Plug and play installation; flexible interfaces
  • Supports any size of foreline pump
  • Software algorithm I-CAL provides accurate test results in all measurement ranges
  • Wide range power supply
  • Integrated test leak
  • Flexible control via optional display unit, remote control, PLC or PC
  • Self-diagnostics capability
  • Low cost of ownership
  • Storage of parameter settings for easy data transfer on an integrated, removalbe I-STICK

Condition: New In Stock
Item#: PN17685 Mfr Part#: 20028787 Manufacturer: Inficon
PRICE: $440.00
WEB SAVINGS: $45.00
YOU PAY: $395.00

Inficon Capillary Sniffer Probe for UL Helium Leak Detectors, 13 ft, 20028787




Inficon Capillary Sniffer Probe for UL Helium Leak Detectors, 13 ft., DN 25 KF-F

Exposed capillary sniffer probe for light duty use.


Condition: New In Stock
Item#: PN24182 Mfr Part#: 200000685 Manufacturer: Inficon
PRICE: $137.00
WEB SAVINGS: $37.15
YOU PAY: $99.85

Inficon UL 1000 Fab Air filter P/N 200000685




Condition: New In Stock
Item#: PN41194 Mfr Part#: 20099046 Manufacturer: Leybold
PRICE: $3,750.00
WEB SAVINGS: $855.00
YOU PAY: $2,895.00

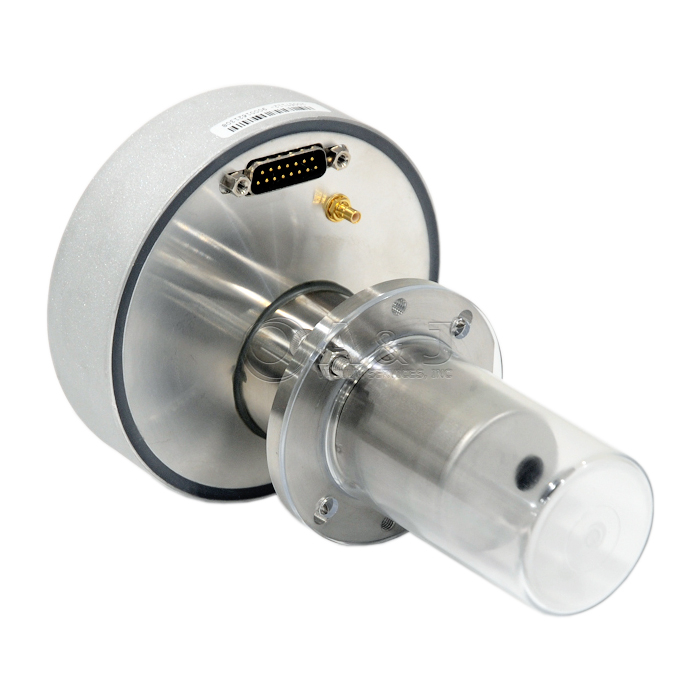

Leybold Preamplifier / Ion Collector, Faraday Cup Collector, P/N 20099046




Condition: New In Stock
Item#: PN07442 Mfr Part#: 551102 Manufacturer: Inficon
PRICE: $233.76
WEB SAVINGS: $4.58
YOU PAY: $229.18

Inficon Modul 1000 Helium Leak Detector Connection Cable, 551102




Overview:

Connection Cable for the Inficon Modul1000 Helium Leak Detector.

The Modul1000 is a plug-and-play helium leak detector for universal integration into industrial leak testing systems (vacuum or sniffer mode). With flexible vacuum architecture, the Modul1000 provides the adaptability to accommodate changes in production specifications.

The Modul1000 provides maximum measurement stability and ambient conditions isolation for repeatable measurement over long periods of time in changing conditions. The ion source filament is designed for long life.

The software algorithm I.CALTM provides accurate measurements at unsurpassed speed in all measurement ranges. This enables the Modul1000 to recognize and communicate the true leak rate faster. To facilitate unit exchange, user setups are stored in the removable I.Stick for easy, fast parameter transfer.

The Modul1000 offers flexible inputs and status outputs for PLC control. Additionally, control and data acquisition is available via the RS232 communication port. The optional display unit supplies easy operation through an intuitive menu structure and software menus.

Implemented software functions allow direct valve control of test systems without the need for an additional PLC.

Features:

  • Compact design for easy integragion in benchtop or rack systems
  • Plug and play installation; flexible interfaces
  • Supports any size of foreline pump
  • Software algorithm I-CAL provides accurate test results in all measurement ranges
  • Wide range power supply
  • Integrated test leak
  • Flexible control via optional display unit, remote control, PLC or PC
  • Self-diagnostics capability
  • Low cost of ownership
  • Storage of parameter settings for easy data transfer on an integrated, removalbe I-STICK




Condition: New
Item#: PN23636 Mfr Part#: 200003801 Manufacturer: Inficon
PRICE: $300.00
WEB SAVINGS: $20.01
YOU PAY: $279.99

Inficon UL 1000 Fab Operating Agent Reservoir for Split Flow 80, 200003801




Condition: New
Item#: PN07443 Mfr Part#: 551010 Manufacturer: Inficon
PRICE: $1,958.32
WEB SAVINGS: $38.40
YOU PAY: $1,919.92

Inficon RC1000C Remote Control For Leak Detectors, 551010




Overview:

For maximum flexibility during your process, the RC1000 is available for wired or wireless operation. The RC1000WL wireless version allows remote operation up to 100 m, with an operating time of more than 8 hours. The RC1000C wired version enables remote operation up to 28 m from your leak detector.

Easy-to-use, the RC1000 can be programmed to display leak rates numerically or in chart or bar graph form on a 3.5“ touchscreen. The time axis on the screen can be scaled to display diagrams from 16 seconds up to 16 minutes.

Measured values are stored for up to 24 hours in an internal memory while the data recording interval is adjustable.

The data can be easily downloaded to a USB stick for PC readout or storage. An internal trigger can be set to provide a visual warning when exceeded, as well as an audible sound through the integrated loudspeaker or headphones. The sound’s tone is proportional to the measured leak rate (the higher the tone, the larger the leak rate).

The robust, ergonomically designed housing complies with IP42 protection class. Magnets on the bottom allow for horizontal or vertical attachment on metal ferromagnetic surfaces.

Features:

  • More than 8 hours battery life
  • Full Color, 3.5" touchscreen display
  • Easy-to-use push buttons for basic operation
  • Leak rate displayed in digits, chart mode or bargraph mode
  • Selectable menu languages
  • Automatic or manual data recording
  • Up to 24 hours storage of measured values
  • Data copy via USB stick for download to a PC
  • Adjustable alarm trigger setting
  • Internal loudspeaker for leak proportional alarm signal
  • Connector for headset
  • Attachable to metal ferromagnetic surfaces, in any direction
  • Robust desing IP42

Condition: New
Item#: PN07444 Mfr Part#: 551015 Manufacturer: Inficon
PRICE: $2,720.00
WEB SAVINGS: $230.00
YOU PAY: $2,490.00

Inficon RC1000WL Wireless Remote Control For Leak Detectors, 551015




Overview:

For maximum flexibility during your process, the RC1000 is available for wired or wireless operation. The RC1000WL wireless version allows remote operation up to 100 m, with an operating time of more than 8 hours. The RC1000C wired version enables remote operation up to 28 m from your leak detector.

Easy-to-use, the RC1000 can be programmed to display leak rates numerically or in chart or bar graph form on a 3.5“ touchscreen. The time axis on the screen can be scaled to display diagrams from 16 seconds up to 16 minutes.

Measured values are stored for up to 24 hours in an internal memory while the data recording interval is adjustable.

The data can be easily downloaded to a USB stick for PC readout or storage. An internal trigger can be set to provide a visual warning when exceeded, as well as an audible sound through the integrated loudspeaker or headphones. The sound’s tone is proportional to the measured leak rate (the higher the tone, the larger the leak rate).

The robust, ergonomically designed housing complies with IP42 protection class. Magnets on the bottom allow for horizontal or vertical attachment on metal ferromagnetic surfaces.

Features:

  • More than 8 hours battery life
  • Full Color, 3.5" touchscreen display
  • Easy-to-use push buttons for basic operation
  • Leak rate displayed in digits, chart mode or bargraph mode
  • Selectable menu languages
  • Automatic or manual data recording
  • Up to 24 hours storage of measured values
  • Data copy via USB stick for download to a PC
  • Adjustable alarm trigger setting
  • Internal loudspeaker for leak proportional alarm signal
  • Connector for headset
  • Attachable to metal ferromagnetic surfaces, in any direction
  • Robust desing IP42

Condition: New
Item#: PN24159 Mfr Part#: 200000561 Manufacturer: Inficon
PRICE: $1,650.00
WEB SAVINGS: $274.05
YOU PAY: $1,375.95

Inficon UL 1000 Fab Set of Side Covers, (2 pcs.) 200000561, UL1000




Condition: New
Item#: PN24160 Mfr Part#: 200000568 Manufacturer: Inficon
PRICE: $2,625.00
WEB SAVINGS: $375.00
YOU PAY: $2,250.00

Inficon UL 1000 Fab Control Panel Complete 200000568, UL1000




Condition: New
