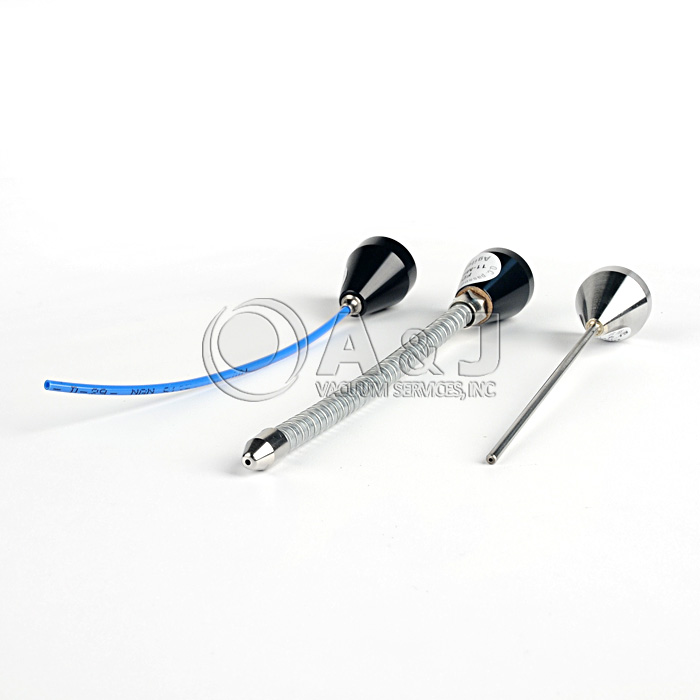

The Agilent Technologies HeliTest Prob Set is designed to be used with the PHD 4 Portable Helium Leak Detector.
The Agilent Varian PHD-4 Portable Helium Leak Detector permits fully automatic detection of concentrations of helium down to a lower limit of 2 parts for million (ppm). The value of the leak is shown in real time on the graphic display on the front panel. The instrument, which emits an acoustic signal proportional to the concentration of helium detected, incorporates a self-test program, making it possible to carry out any type of operation using the soft-keys on the front control panel. The operator can use the straps provided to carry the unit and locate leaks using the extensible probe.
The system to be tested is filled with a mixture of helium/air. The probe is passed over areas considered to be critical and, via a sampling pump, the mix of gases around the areas examined is sampled and piped towards the internal sensor. The sensor consists of a pressure detector and of a heated quartz capillary which is highly permeable to the molecules of helium, while permeability for all other atmospheric gases is negligible. While the atmospheric gases are vented to the outside, the molecules of helium reach the pressure detector. The electric signal proportional to the partial pressure of the helium taken from the detector, is processed by the microprocessor of the central unit. This permits direct readout of the concentration of helium on the display.
The Agilent Technologies Transformer / Battery Charger is designed to be used with the PHD 4 Portable Helium Leak Detector.
PHD4 Charger kit includes Manis Cables for 115 VAC, and 230 VAC
The Agilent Varian PHD-4 Portable Helium Leak Detector permits fully automatic detection of concentrations of helium down to a lower limit of 2 parts for million (ppm). The value of the leak is shown in real time on the graphic display on the front panel. The instrument, which emits an acoustic signal proportional to the concentration of helium detected, incorporates a self-test program, making it possible to carry out any type of operation using the soft-keys on the front control panel. The operator can use the straps provided to carry the unit and locate leaks using the extensible probe.
The system to be tested is filled with a mixture of helium/air. The probe is passed over areas considered to be critical and, via a sampling pump, the mix of gases around the areas examined is sampled and piped towards the internal sensor. The sensor consists of a pressure detector and of a heated quartz capillary which is highly permeable to the molecules of helium, while permeability for all other atmospheric gases is negligible. While the atmospheric gases are vented to the outside, the molecules of helium reach the pressure detector. The electric signal proportional to the partial pressure of the helium taken from the detector, is processed by the microprocessor of the central unit. This permits direct readout of the concentration of helium on the display.
Wireless Remote, Base Unit Allows communication with wireless hand-held remote control, ordered separately (p/n VSLDWRC).
Capturing and analyzing leak test data are increasingly critical to the leak test process. Aggressive manufacturing yield and efficiency targets, demanding quality control procedures, and ISO and regulatory compliance requirements have created a need for a capable, user-friendly data management tool. To meet this need, Varian has designed the Leak Test Data Wizard, a comprehensive data management software package for use with our VS Series mass spectrometer leak detectors. The Leak Test Data Wizard is a flexible PC based, graphic-rich tool that makes full use of the data from the VS leak detector to customize automation of basic leak test processes, assuring testing uniformity over time or between operators.
Features:
Agilent Technologies offers helium leaks traceable to NIST standards for use in calibrating your leak detector.
A NW 25 or 1 1/8" OD tube fitting and isolation valve are provided as standard on the external leaks.
Agilent Technologies offers helium leaks traceable to NIST standards for use in calibrating your leak detector.
A NW 25 or 1 1/8" OD tube fitting and isolation valve are provided as standard on the external leaks.
Agilent Technologies offers helium leaks traceable to NIST standards for use in calibrating your leak detector.
A NW 25 or 1 1/8" OD tube fitting and isolation valve are provided as standard on the external leaks.
Agilent Technologies offers helium leaks traceable to NIST standards for use in calibrating your leak detector.
A NW 25 or 1 1/8" OD tube fitting and isolation valve are provided as standard on the external leaks.
