- Peak Pumping Speed: 2.1 cfm
- KF16 Inlet Flange
- KF16 Outlet Flange
- Ultimate Pressure: 1 x 10-3 Torr.
Shopping Cart ( )
Oerlikon / Leybold D2.5E Rotary Vane Pump, Single Phase, 100-120 V / 208-240 V, 50/60 Hz, 140001
Condition:
New
Item#:PN17770
Mfr Part#:140001
Manufacturer:Leybold
Features:
Leybold D2.5E Rotary Vane Vacuum Pump, Single Phase, 100-120 V / 208-240 V, 50/60 Hz, 140001
Power cable is not included!
Leybold TRIVAC D2.5E Overview:
Leybold D2.5E Rotary Vane Pump. It is coupled with a KF16 Inlet Flange and KF16 Outlet Flange. This Leybold / Oerlikon Rotary Vane Pump has a peak pumping velocity of 2.1 cfm and a final pressure of 1 x 10-3 Torr.

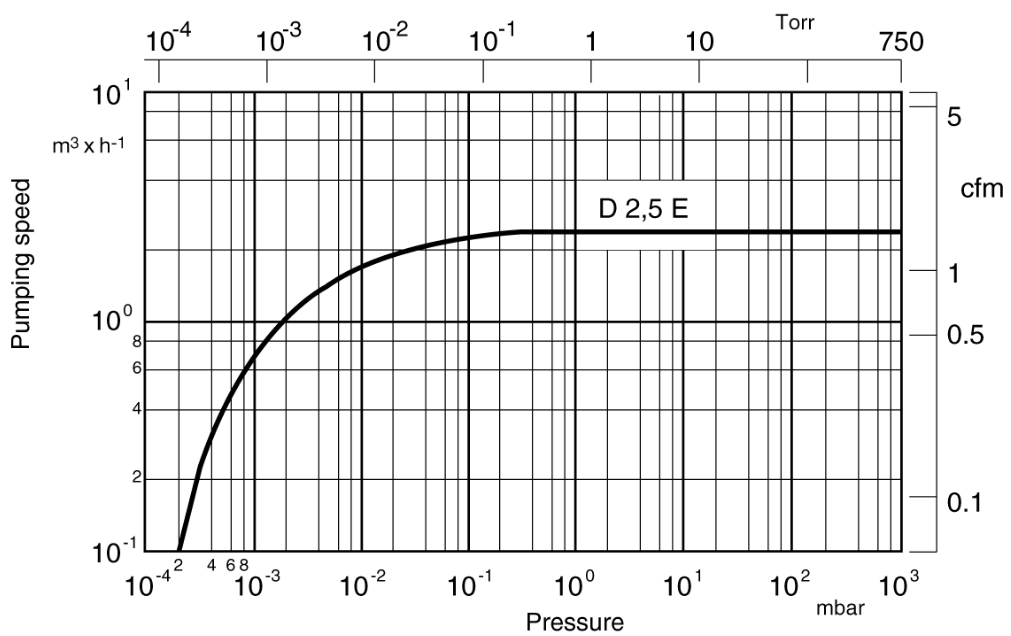

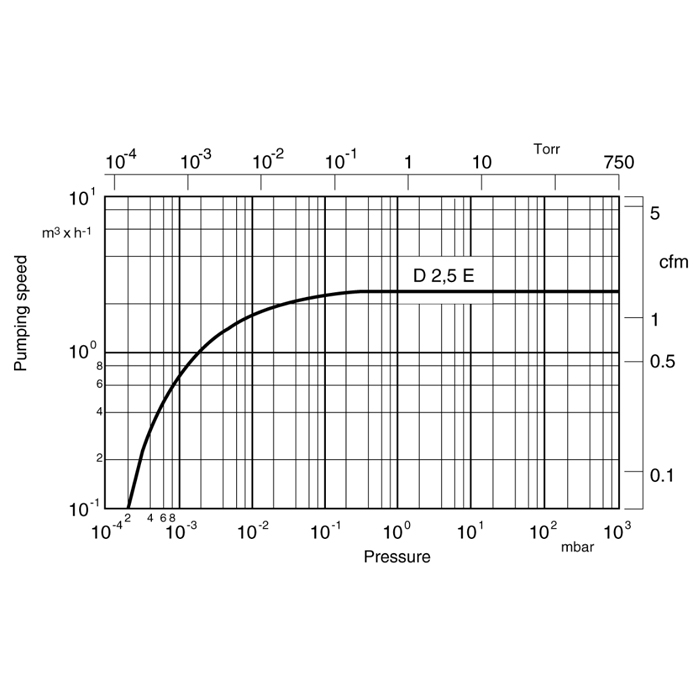

Leybold TRIVAC D2.5E Pumping speed:
Leybold TRIVAC D2.5E Applications:
- Gas analyzers
- Leak detection
- Mass spectrometers
- Other spectrometers
- Electron microscopes
- Surface analyzers
- Centrifuges
- Sterilization
- Electron tubes
- Lamps
- TV tubes (CRT)
- Refrigeration
- Air conditioning
- Drying
- Distillation
- Metallurgy
- Free drying
- CVD.LPCVD
- Ion implantation
- Dry etching
- Load-lock
- Cryogenics
- Gas recovery
- Oxygen pumping

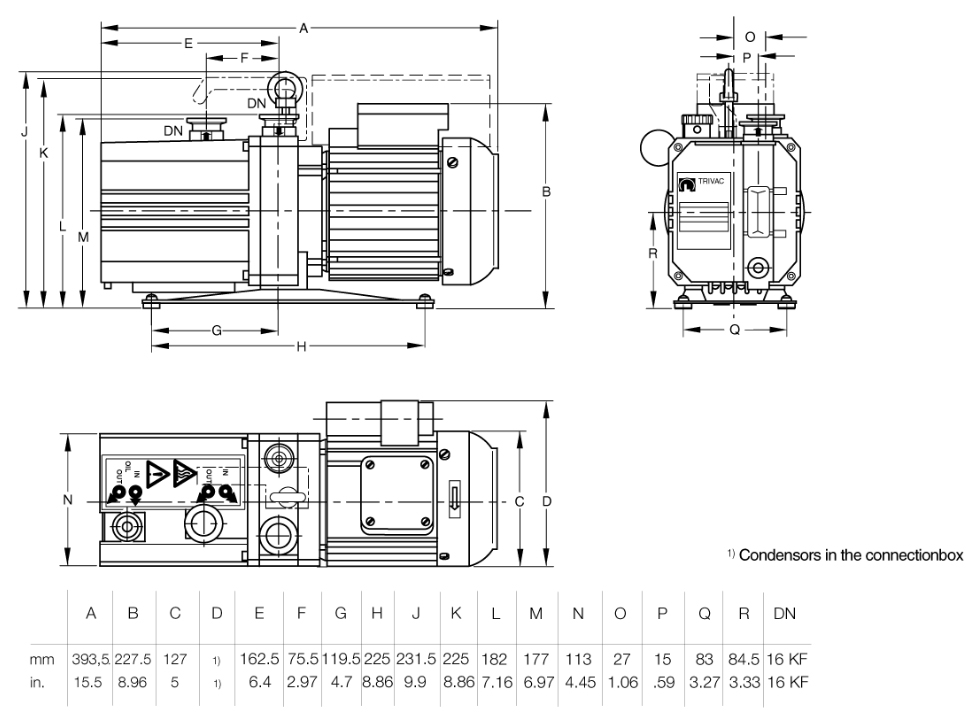

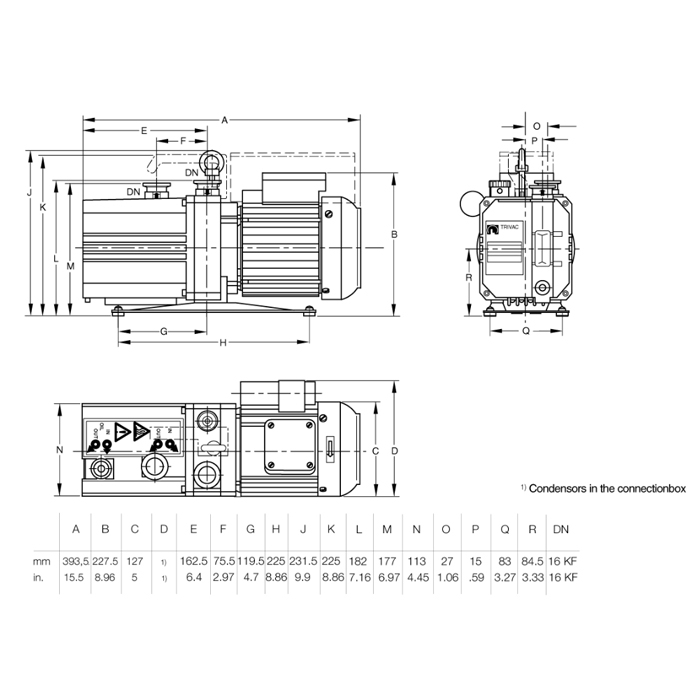

Leybold TRIVAC D2.5E Dimensions:
Click Here for Leybold SOGEVAC Manual
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of TRIVAC D2.5E vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Leybold D2.5E Rotary Vane Vacuum Pump, Single Phase, 100-120 V / 208-240 V, 50/60 Hz, 140001

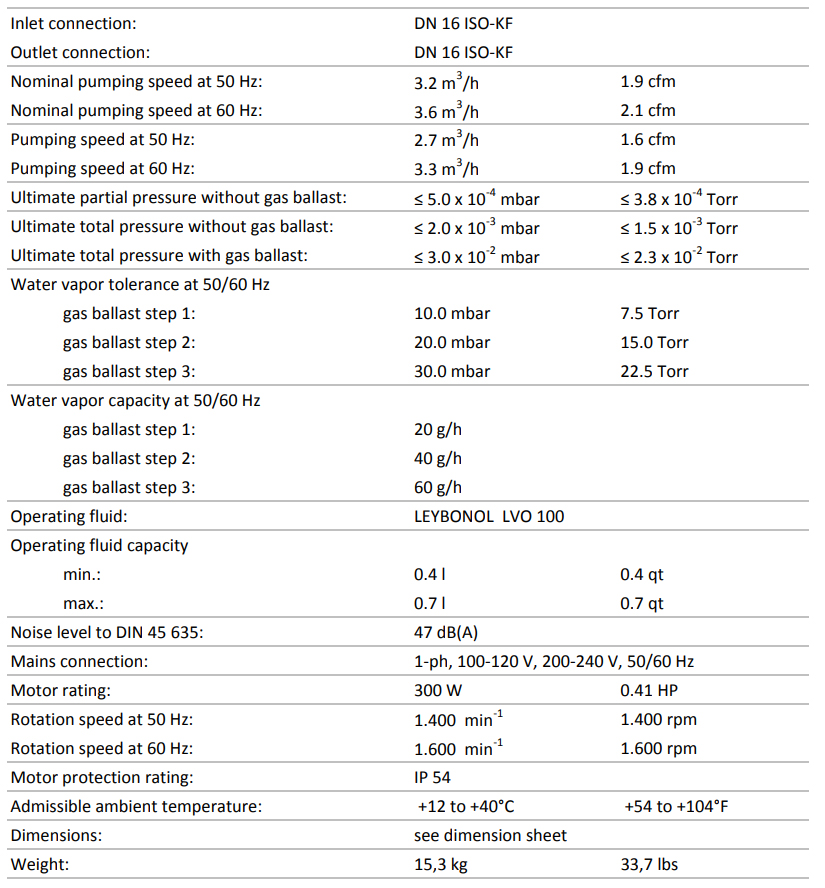

Leybold TRIVAC D2.5E Technical Data:
Click Here for Leybold SOGEVAC Manual
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of TRIVAC D2.5E vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
