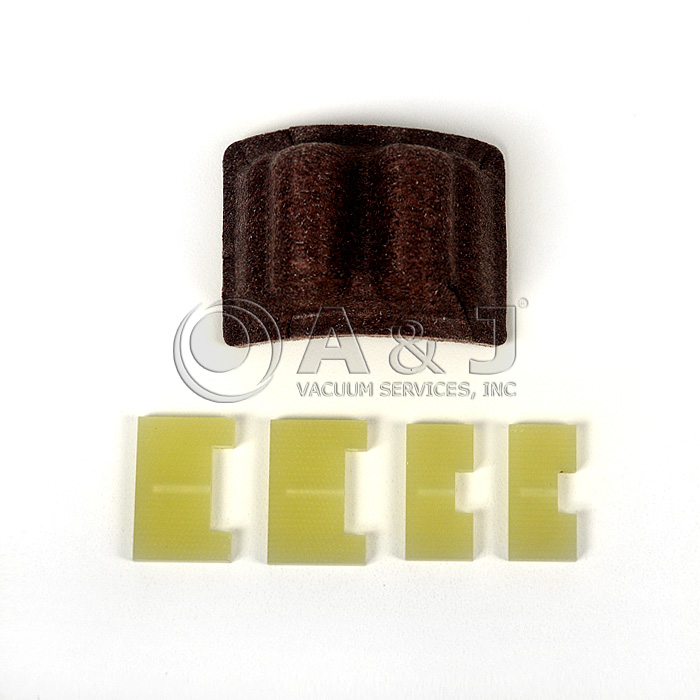

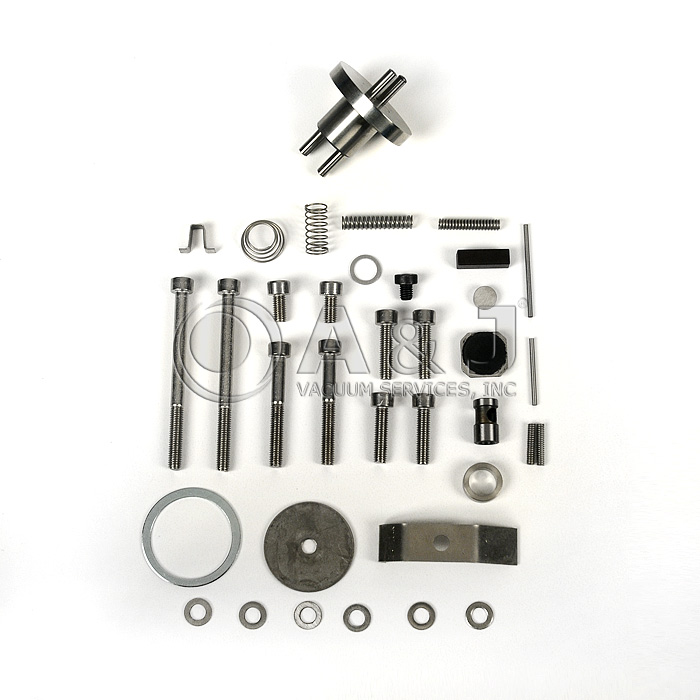

Oerlikon / Leybold D2.5E (E2 Series) Rotary Vane Pump Major Repair / Maintenance Kit, 100000347KIT

100000347KIT

  KIT,MAJOR,D2.5E,GX,E2 SERIES

PN

Desc.

Qty

420032

WASHER,ORFICE,G.B.,S/S

1

420033

WASHER,FLAT,M5,S/S

6

580032

VALVE,NIB,SEALING ELEM.,VITON

1

23973146

SEAL,FLOAT,VITON

1

320160

O'RING,VITON,8.2 X 2.4 MM

4

400061

SCREW,SHCS,M5X65MM,S/S

2

400062

SCREW,SHCS,M5X40MM,S/S

2

400063

SCREW,SHCS,M5X20MM,S/S

4

400064

SCREW,SHCS,M5X10MM,S/S

2

400065

SCREW,SHCS,LOW HD,M5X6MM,STL.

1

580041

VALVE,STOPPER,STEEL,E2 SERIES

1

580034

VALVE,BRACKET,S/S

1

580033

VALVE,TANDEM,STEEL

1

490020

RETAINER,RESTRICTOR,SPRING

1

450030

PIN,VANE,GUIDE,S/S

1

450031

PIN,VANE,GUIDE,S/S

1

490023

SPRING,COMPRESSION,STEEL

1

490022

SPRING,COMPRESSION,STEEL

1

490024

SPRING,COMPRESSION,VANE,S/S

2

490035

SPRING,COMPRESSION,S/S

1

490026

SPRING,COMPRESSION,CONICAL,S/S

1

23970436

O'RING,VITON,27 X 2.5 MM

1

34861028

VALVE,NON-RETURN,VITON

1

40050135

VALVE

1

440022

RING,SPACER,ALUM,11.5X8X1MM

1

640013

INSERT,TUBE,VITON

4

310048

SEAL,SHAFT,LIP,W/O DUST LIP

1

310049

SEAL,SHAFT,LIP,W/ DUST LIP

1

20103017

SCREW,FLAT HD CAP,M5X12

4

580046

Valve,Holder

1

300044

GASKET,SIGHT GLASS,VITON

1

300047

GASKET,FLAT SEAL,VITON

1

300049

GASKET,OIL BOX,VITON

1

320117

O'RING,VITON,92X3 MM

1

300045

GASKET,RING,VITON,17X22X1.5MM

1

300046

GASKET,RING,VITON,22X27X2MM

2

360051

COUPLER,SLEEVE,VITON

2

P23955165

GASKET,VITON

3

23970120

O'RING,VITON,37 X 3 MM

1

720010

FILTER,DEMISTER

1

200115

Rotor,Oil pump,E2 series

1

230048G

VANE,GX,1ST STAGE,HV

2

230047G

VANE,GX,2ND STAGE,LV,FV VANE

2
