- Pumping Speed 50Hz: 67.69 cfm
- Pumping Speed 60Hz: 79.46 cfm
- Ultimate Pressure: 2 · 10-3 mbar
- Three Phase Motor

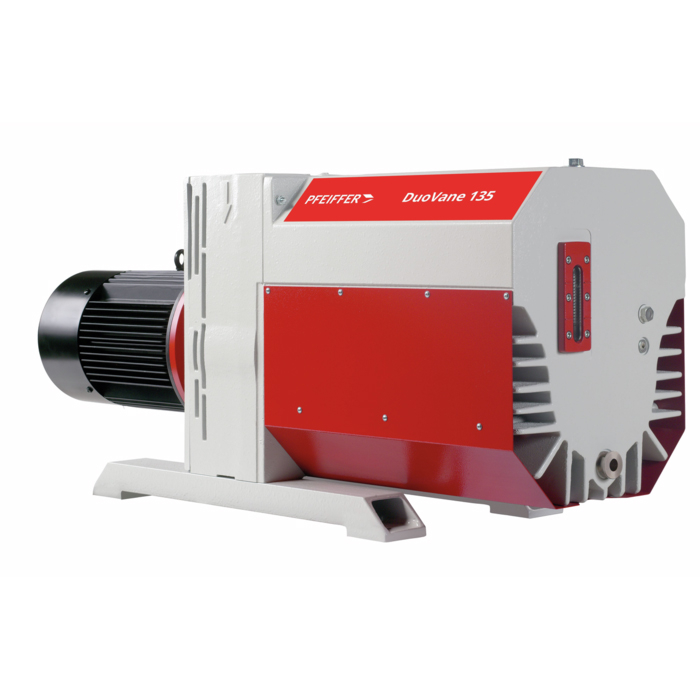

Pfeiffer DuoVane 135 Vacuum Pump, 3-phase, 3TF, 230/400V, 50 HZ | 265/460V, 60 HZ, PK D47 602 D / PKD47602D
Pfeiffer DuoVane 135 Features:
- Pumping speed 50/60HZ: 67.69/79.46 cfm
- Dual-stage, high-performance rotary vane pump
- With temperature sensor (3TF) for optimum motor protection
- Integrated gas ballast and HV safety valve
- Special feature: various motor voltages for worldwide use
Pfeiffer DuoVane135 / PK D47 602 D Overview:
Pfeiffer DuoVane series rotary vane pumps are two-stage, oil-sealed rotary displacement pumps for use in a low and medium vacuum. The rotary vane pump is available in the standard version with claw coupling and asynchronous motor.
Pfeiffer Vacuum DuoVane Line is the latest and the newest design within rotary vane pumps, with outstanding pumping performance.
The Pfeiffer Vacuum DuoVane 135 rotary vane pump is an oil-sealed rotary displacement pump. The pumping system comprises the housing, the eccentrically mounted rotor, and the centrifugal and spring-loaded radially sliding vanes, which divide the suction chamber into multiple chambers.
The volume of each stator chamber changes periodically as the rotor rotates. This causes the gas to be drawn in at the vacuum flange, and compressed in the suction chamber by the rotation of the rotor until the exhaust valve opens against the atmospheric pressure at the outlet and expels the gas. The exhaust valve is oil-sealed. When the valve opens, a small quantity of oil penetrates into the suction chamber. In addition to lubrication, this also causes the gaps between the rotor, stator, and vanes to seal.
Pfeiffer DuoVane135 Applications:
- All applications in rough and fine vacuum
- Backing pump for turbo and Roots pumps
- General laboratory applications
- Analytics
- Chemistry laboratory
- Freeze drying
- Process engineering
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 95 and 135, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer DuoVane 135 Vacuum Pump, 3-phase, 3TF, 230/400V, 50 HZ | 265/460V, 60 HZ, PK D47 602 D / PKD47602D
Pfeiffer DuoVane 135 Technical Data:
- Ambient temperature: 12 – 40 °C | 53.6 – 104 °F | 285.15 – 313.15 K
- Connection flange (in): DN 63 ISO-F
- Connection flange (out): DN 63 ISO-F
- Cooling method: Air (Forced convection)
- Emission sound pressure level without gas ballast at 50 Hz: 75 dB(A)
- Exhaust pressure, max.: 1500 hPa | 1,125 Torr | 1,500 mbar
- Exhaust pressure, min.: Atmospheric pressure
- Gas ballast: Yes
- Input voltage(s): 230 / 400 V AC, 50 Hz | 265 / 460 V AC (±5 %), 60 Hz
- Leakage rate safety valve: 1 · 10-5 Pa m³/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s
- Mains cable: No
- Mains frequency compatibility: 50/60 Hz
- Motor for region: Asia, Europe
- Motor protection: 3TF
- Motor type: 3-phase motor
- Number of pumping stages: Two stage
- Operating fluid: P3
- Operating fluid amount: 14 l
- Protection degree: IP55
- Pumping principle: Oil-lubricated

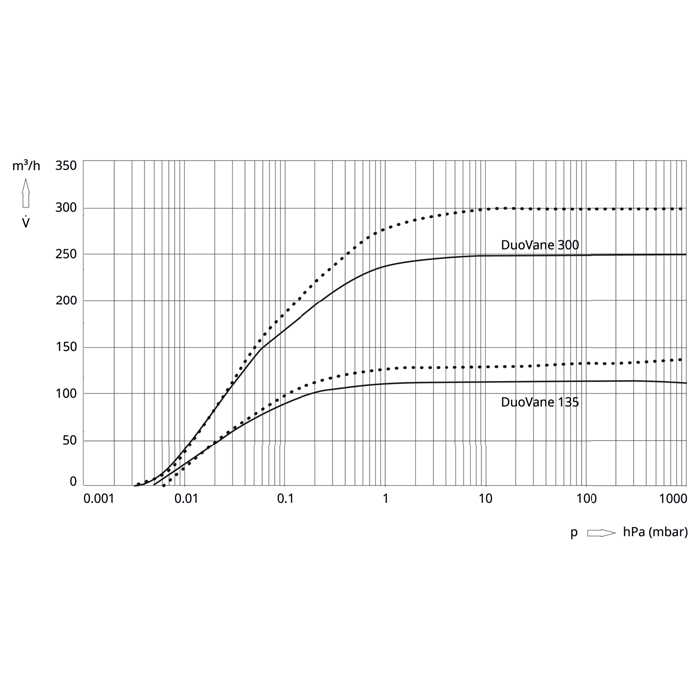

- Pumping speed at 50 Hz: 115 m³/h | 67.69 cfm | 1,916.67 l/min
- Pumping speed at 60 Hz: 135 m³/h | 79.46 cfm | 2,250 l/min
- Rated power 50 Hz: 4 kW
- Rated power 60 Hz: 4.5 kW
- Rotation speed at 50 Hz: 1000 rpm | 1,000 min-1
- Rotation speed at 60 Hz: 1200 rpm | 1,200 min-1
- Switch: No
- Ultimate pressure: 2 · 10-3 hPa | 1.5 · 10-3 Torr | 2 · 10-3 mbar
- Ultimate pressure with gas ballast: 4 · 10-3 hPa | 3 · 10-3 Torr | 4 · 10-3 mbar
- Weight approx.: 225 kg | 496.04 lb
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 and 95, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
|
