- For Pumping Speed up to 211.9 cfm
- Pressure Max. (absolute): 1500 mbar
- Integral Leak Rate: < 1 · 10-5 mbar l/s
- Longer Life Time of Operating Fluid

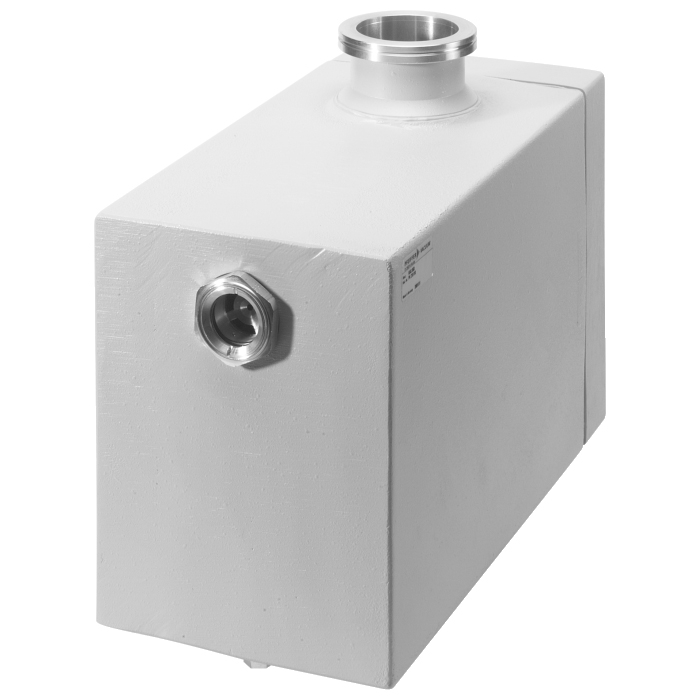

Pfeiffer KAS 063, Condensate Separator for Pumping Speeds up to 360 m3/h | 211.9 cfm, PK Z10 010 / PKZ10010
Pfeiffer KAS 063 Features:
- For pumping speed up to 211.9 cfm
- For inlet and outlet ports
- Protects rotary vane pump against sucked in liquids and condensate return
- Longer life time of operating fluid
Pfeiffer KAS 063 / PK Z10 010 Overview:
Condensate Separators KAS 025 to KAS 100 are constructed from corrosion-resistant aluminum and feature elastomer sealing elements.To safeguard the vacuum pump from potential damage caused by condensates, installing a condensate separator in the intake line is recommended. This helps maintain the lubricating properties of the operating fluid and supports achieving the specified ultimate pressure. Each KAS unit is equipped with a sight glass for monitoring the condensate level.
Pfeiffer KAS063 Scope of Delivery:
- Operating instructions
Pfeiffer KAS063 Applications:
- For inlet and outlet ports
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 and 95, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer KAS 063, Condensate Separator for Pumping Speeds up to 360 m3/h | 211.9 cfm, PK Z10 010 / PKZ10010
Pfeiffer KAS 063 Technical Data:
- Capacity: 12 l
- Connection flange: DN 63 ISO-KF / DN 63 ISO-KF
- Connection flange (in): DN 63 ISO-KF
- Connection flange (out): DN 63 ISO-KF
- For pumping speed up to: 360 m³/h | 211.9 cfm | 6,000.01 l/min
- Integral leak rate: < 1 · 10-6 Pa m³/s | < 7.5 · 10-6 Torr l/s | < 1 · 10-5 mbar l/s
- Pressure max. (absolute): 1500 hPa | 1,125 Torr | 1,500 mbar
- Weight approx.: 13.2 kg | 29.1 lb
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 and 95, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer KAS 025 040 063 100 Operating Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer KAS 063, Condensate Separator for Pumping Speeds up to 360 m3/h | 211.9 cfm, PK Z10 010 / PKZ10010
Pfeiffer KAS 063 Features:
- For pumping speed up to 211.9 cfm
- For inlet and outlet ports
- Protects rotary vane pump against sucked in liquids and condensate return
- Longer life time of operating fluid
Pfeiffer KAS 063 / PK Z10 010 Overview:
Condensate Separators KAS 025 to KAS 100 are constructed from corrosion-resistant aluminum and feature elastomer sealing elements.To safeguard the vacuum pump from potential damage caused by condensates, installing a condensate separator in the intake line is recommended. This helps maintain the lubricating properties of the operating fluid and supports achieving the specified ultimate pressure. Each KAS unit is equipped with a sight glass for monitoring the condensate level.
Pfeiffer KAS063 Scope of Delivery:
- Operating instructions
Pfeiffer KAS063 Applications:
- For inlet and outlet ports
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 and 95, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Specifications
Pfeiffer KAS 063, Condensate Separator for Pumping Speeds up to 360 m3/h | 211.9 cfm, PK Z10 010 / PKZ10010
Pfeiffer KAS 063 Technical Data:
- Capacity: 12 l
- Connection flange: DN 63 ISO-KF / DN 63 ISO-KF
- Connection flange (in): DN 63 ISO-KF
- Connection flange (out): DN 63 ISO-KF
- For pumping speed up to: 360 m³/h | 211.9 cfm | 6,000.01 l/min
- Integral leak rate: < 1 · 10-6 Pa m³/s | < 7.5 · 10-6 Torr l/s | < 1 · 10-5 mbar l/s
- Pressure max. (absolute): 1500 hPa | 1,125 Torr | 1,500 mbar
- Weight approx.: 13.2 kg | 29.1 lb
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 and 95, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
