- Inlet flange: DN 40 ISO-KF
- Outlet flange: DN 16 ISO-KF
- Pumping speed (N2): 67 l/s
- Compression ratio (N2): > 1 x 1011
Shopping Cart ( )

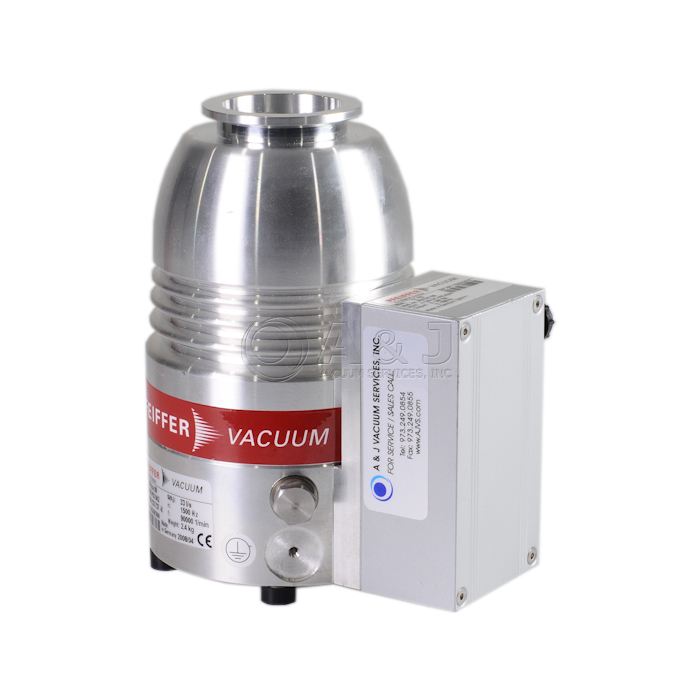

Pfeiffer HiPace 80 Turbo Pump with TC 110 Controller, DN 40 ISO-KF, PMP03942 / PM P03 942
Condition:
Remanufactured
In Stock
Item#:PN06614
Mfr Part#:PMP03942 / PM P03 942
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiPace 80 Turbo Pump with TC 110 Controller, DN 40 ISO-KF, PMP03942 / PM P03 942
Pfeiffer HiPace 80 Features:
- Small yet powerful turbopump with a pumping speed of up to 35 l/s for N2
- Integrated TC 110 drive electronics
- For installation in any orientation
- Ideal for dependable systems integration
- Extensive accessories expand the range of applications
HiPace 80 / PMP03942 Overview:
The Pfeiffer HiPace 80 Series Pump is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer HiPace 80 Turbo Pump with TC 110 Controller, DN 40 ISO-KF, PMP03942 / PM P03 942
Pfeiffer HiPace 80 Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 1011 |
| Compression ratio for H2 | 1.4 · 105 |
| Compression ratio for He | 1.3 · 107 |
| Compression ratio for N2 | > 1 · 1011 |
| Cooling method, optional | Air/Water |
| Cooling method, standard | Convection |
| Cooling water flow | 75 l/h |
| Cooling water flow, max | 75 l/h |
| Cooling water flow, min | 75 l/h |
| Cooling water temperature | 5-25 °C | 41-77 °F | 278-298 K |
| Current max. | 4,6 A |
| Electronic drive unit | with TC 110 |

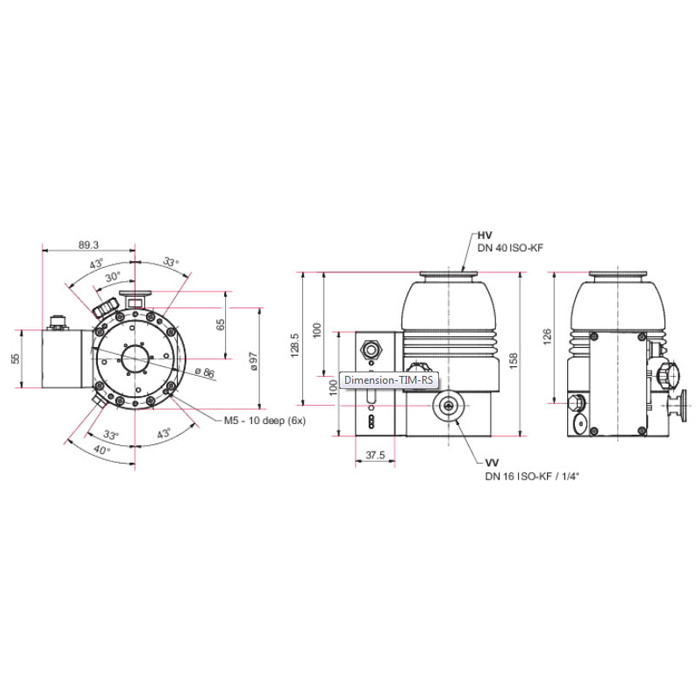

| Flange (in) | DN 40 ISO-KF |
| Flange (out) | DN 16 ISO-KF/G ¼" |
| Fore-vacuum max. for N2 | 22 hPa | 16.5 Torr | 22 mbar |
| Gas throughput at full rotational speed for Ar | 0.54 hPa·l/s |
| Gas throughput at full rotational speed for H2 | 15.3 hPa·l/s |
| Gas throughput at full rotational speed for He | 2.7 hPa·l/s |
| Gas throughput at full rotational speed for N2 | 1.3 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Mounting orientation | Any |
| Operating voltage: V DC | 24 (± 5 %) V DC |
| Permissible magnetic field max. | 3.8 mT |
| Power consumption max. | 110 W |
| Protection category | IP54 |
| Pumping speed for Ar | 30 l/s |
| Pumping speed for H2 | 38 l/s |
| Pumping speed for He | 41 l/s |
| Pumping speed for N2 | 35 l/s |
| Rotation speed ± 2 % | 90,000 rpm | 90,000 min-1 |
| Rotation speed variable | 50 – 100 % |
| Run-up time | 1.7 min |
| Sound pressure level | ≤48 dB(A) |
| Ultimate pressure according to PNEUROP | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
| Ultimate pressure without gas ballast | 1 · 10-7 hPa | 7.5 · 10-8 Torr | 1 · 10-7 mbar |
| Venting connection | G 1/8" |
| Weight | 2.4 kg | 5.29 lb |
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
