- Inlet Flange: DN 63 ISO-K
- Ultimate Pressure: < 1 x 10-7 mbar
Shopping Cart ( )

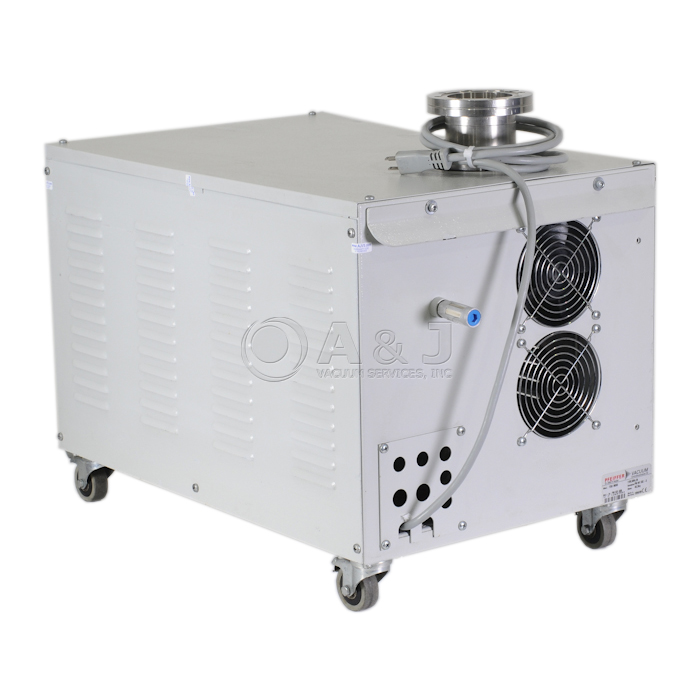

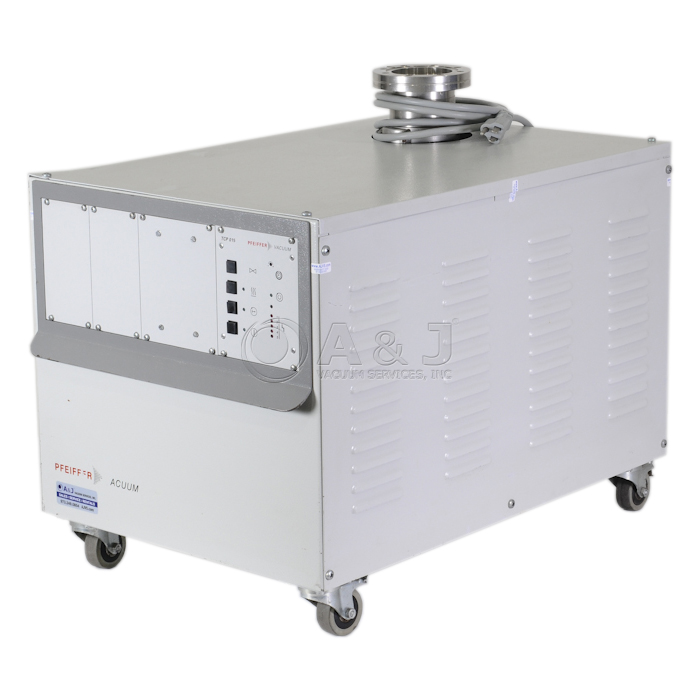

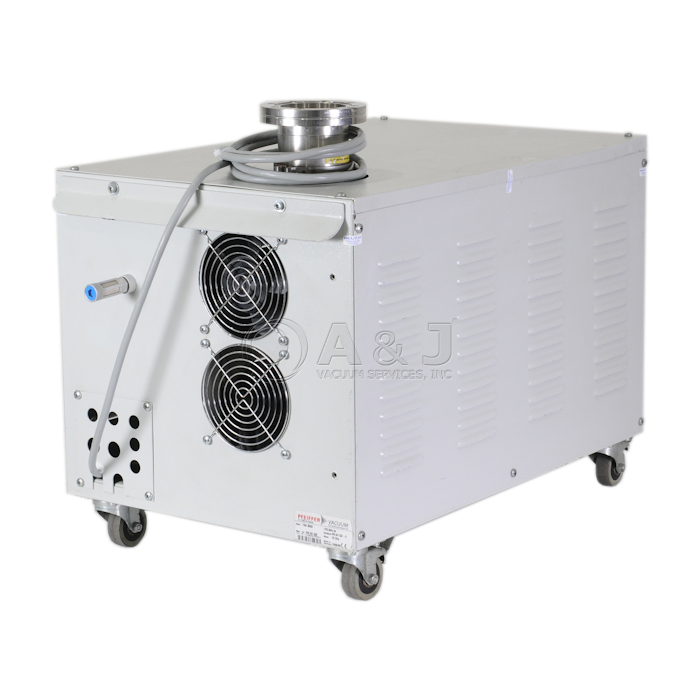

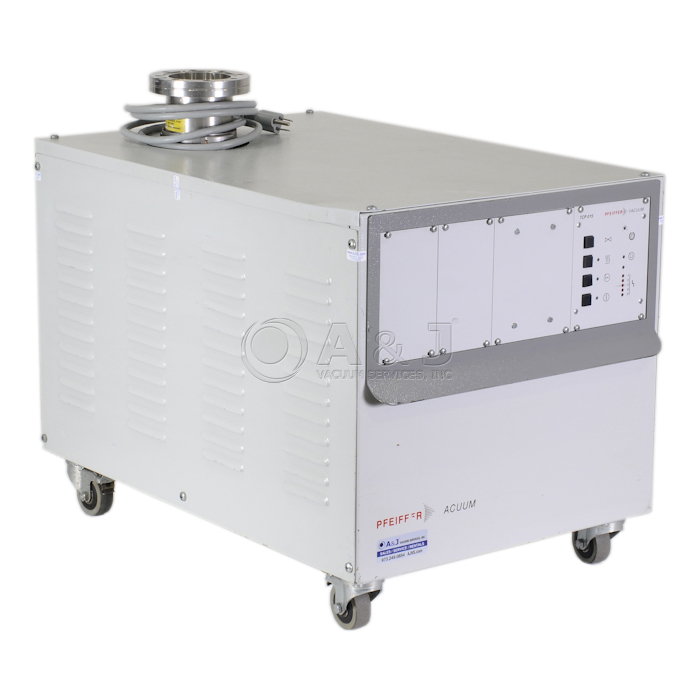

Pfeiffer TSU 065 Dry Turbo System, 65 l/sec, DN 63 ISO-K, 115 VAC, 50/60 Hz, PMK01608
Condition:
Remanufactured
Call us for Availability
Item#:PN20440
Mfr Part#:PMK01608
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer TSU 065 Dry Turbo System, 65 l/sec, DN 63 ISO-K, 115 VAC, 50/60 Hz, PMK01608

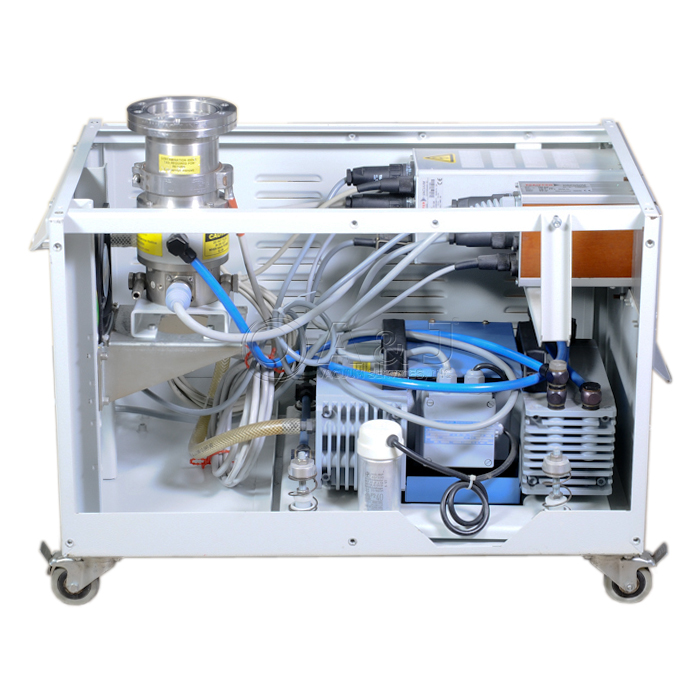

Pfeiffer TSU 065 Features:
- Pfeiffer TMU 065 Turbo Pump / Pumping Speed 65 l/sec
- Pfeiffer MVP 055 Diaphragm backing Pump / Nominal Volume Flow Rate: 3.0 m3/h (50 Hz); 3.5 m3/h (60 Hz)
- TCP 015 Control Unit
TSU 065 / PMK01608 Overview:
Pfeiffer TSU 065 Turbo Pumping System is the complete one button operation Vacuum System. The built in Pfeiffer TMU065 turbo pumps may only be used for the purpose of generating vacuum. They may only be used to pump those media against which they are chemically resistant. For other media the operator is required to qualify the pumps for the processes involved. If the process produces dust, the maintenance intervals must be specified accordingly and sealing gas must be used (only for version "P").
If the TMU065 pump is to be operated with more than 50 percent of the permissible gas load, sealing gas must be used (only for version "P").
The plug and play type pumping stations are fully automatically operating pumping units.
Cooling:
Standard type: Air cooling integrated in the casing
(up to 35 °C ambient temperature).
The Pfeiffer TMU 065 Pump has a wear free permanent magnetic bearing at the high vacuum side and an oil lubricated ceramic bearing at the backing side.
The Pfeiffer 065 Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.
- TSH-065 comes with DN63 ISO-K Inlet Flange
- TSU-065 comes with DN63 CF-F Inlet Flange
A&J Vacuum repair / rebuild and service all Pfeiffer TSU 065 / TSH 065 Turbo Pumping Systems along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer TSU 065 Dry Turbo System, 65 l/sec, DN 63 ISO-K, 115 VAC, 50/60 Hz, PMK01608
Pfeiffer TSU 065 Features:
- Pfeiffer TMU 065 Turbo Pump / Pumping Speed 65 l/sec
- Pfeiffer MVP 055 Diaphragm backing Pump / Nominal Volume Flow Rate: 3.0 m3/h (50 Hz); 3.5 m3/h (60 Hz)
- TCP 015 Control Unit
TSU 065 / PMK01608 Overview:
Pfeiffer TSU 065 Turbo Pumping System is the complete one button operation Vacuum System. The built in Pfeiffer TMU065 turbo pumps may only be used for the purpose of generating vacuum. They may only be used to pump those media against which they are chemically resistant. For other media the operator is required to qualify the pumps for the processes involved. If the process produces dust, the maintenance intervals must be specified accordingly and sealing gas must be used (only for version "P").
If the TMU065 pump is to be operated with more than 50 percent of the permissible gas load, sealing gas must be used (only for version "P").
The plug and play type pumping stations are fully automatically operating pumping units.
Cooling:
Standard type: Air cooling integrated in the casing
(up to 35 °C ambient temperature).
The Pfeiffer TMU 065 Pump has a wear free permanent magnetic bearing at the high vacuum side and an oil lubricated ceramic bearing at the backing side.
The Pfeiffer 065 Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.
- TSH-065 comes with DN63 ISO-K Inlet Flange
- TSU-065 comes with DN63 CF-F Inlet Flange
A&J Vacuum repair / rebuild and service all Pfeiffer TSU 065 / TSH 065 Turbo Pumping Systems along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
