- Ambient Temperature: 5-55 °C | 41-131 °F | 278-328 K
- Bake-Out Temperature w/ Electronics removed: ≤ 150 °C
- Maximum Pressure: 10,000 hPa | 7,500 Torr | 10,000 mbar
- Volume: 19.9 cm³ [Cubic Meters]
Shopping Cart ( )
Pfeiffer Vacuum High Current, Ceramic-Coated Gauge, IKR 361 C, 25 ISO-KF, 2000005718 / PT T01 140 011 / PTT01140011
Condition:
New
Item#:PN23134
Mfr Part#:2000005718 / PT T01 140 011 / PTT01140011
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum High Current, Ceramic-Coated Gauge, IKR 361 C, 25 ISO-KF, 2000005718 / PT T01 140 011 / PTT01140011
Pfeiffer Vacuum High Current (Cermanic-Coated) Gauge IKR 361 - Product Overview:
- For Vacuum Processes in High-to-Ultra High Vacuum Range
- Features Very Low External Magnetic Field
- Display Range: 1 * 10^(-9) to 1 * 10^(-2) hPa
- Cold Cathode (Inverted Magnetron)
- Rugged and Dependable
- Insensitive to Air Ingress
- Arrives Without Elastomer Seal
- Features a Nominal Diameter of 25 mm (DN 25 ISO-KF)
- Ceramic-Coated Version of High Current, IKR 361 C Gauge
- Maximum Pressure Refers to Inert Gases and Temperatures of Less Than 55°C
Pfeiffer Vacuum ActiveLine Measurement Gauges - Product Category Overview:
Among the many varieties and instruments of vacuum products available on the market and serviced by A&J Vacuum Services, a sizable proportion operates within a specified pressure range. Vacuum measurement devices - particularly gauges - serve to precisely monitor and control vacuum pressure within a system, preventing potential malfunctions caused by excessive vacuum pressure. As such, these devices serve as a useful addition to your industrial vacuum product, providing additional operating awareness to the user while ensuring the safety and durability of your product. A&J Vacuum Services is proud to offer and service the most up-to-date gauges manufactured by Pfeiffer Vacuum, a leading global innovator in the respective field of vacuum measurement devices.
Among the diverse series of measurement gauges manufactured by Pfeiffer Vacuum, the ActiveLine Series (containing the IKR subset, with versions IKR 360 & 361) features some of the newest technologies incorporated into the field of gauge design. In particular, new developments in recent years have vastly improved the durability of these gauges. The ActiveLine Series of Pfeiffer Vacuum gauges now features a dual-chamber design, whereby contaminants are isolated and collected within the first chamber, while the second chamber offers a clean environment for measurement. Likewise, the interior surface texture of the measurement chamber is fitted to prevent measurement errors caused by sputtering, thus improving the stability of the device. As an added benefit for user convenience, the measurement chamber and ignition tool can easily be replaced.
The IKR Subset of Pfeiffer ActiveLine gauges includes both low-current (IKR 360) and high-current (IKR 361) versions. The former is ideally suitable for vacuum applications in the low-to-medium vacuum range, with an added emphasis on the elimination of contaminants. The latter version is especially suited for high-intensity vacuum applications, and emphasizes providing the ideal ignition characteristics for your vacuum application, even within the low pressure range.

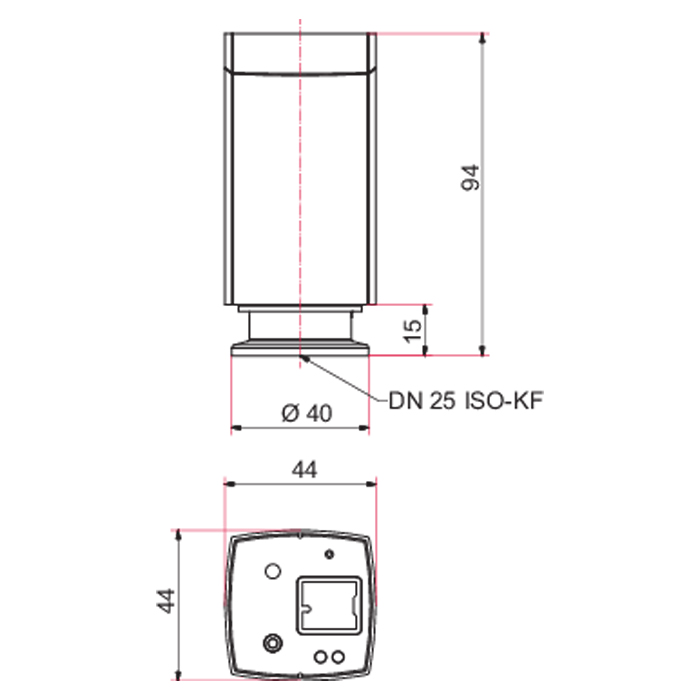

Gauge Dimensions:
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
A&J Vacuum services and repairs Pfeiffer Vacuum Cold Cathode Guages (IKR 361 Series), along with all other categories of Pfeiffer Vacuum Guages/Measurement Devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier and service partner.
This item is non-returnable/non-refundable
Pfeiffer Vacuum High Current, Ceramic-Coated Gauge, IKR 361 C, 25 ISO-KF, 2000005718 / PT T01 140 011 / PTT01140011
Technical Data:
| Accuracy: 1 * 10^[-8] to 0.01 hPa | ± 30 % |
| Ambient temperature | 5-55 °C | 41-131 °F | 278-328 K |
| Anode | Molybdenum |
| Bakeout temperature | Electronics removed, ≤150 °C |
| Feature | Corrosion resistant |
| Feedthrough | Glass, ceramic coated |
| Flange, Material | Stainless Steel 1.4435 |
| Materials in contact with media | Stainless steel 1.4435, 1.4310, Molybdenum, glass, aluminium oxide ceramic |
| Measurement range | 1 · 10-9 – 1 · 10-2 hPa |
| Method of measurement | Cold Cathode |
| Nominal diameter | DN 25 ISO-KF |
| Output signal: Measurement range | 2.5–8.5 V |
| Output signal: Minimum load | 10 k? |
| Pressure max. | 10,000 hPa | 7,500 Torr | 10,000 mbar |
| Repeatability: 1 · 10-8 – 1 · 10-2hPa | ± 5 % |
| Sensor cable length min. | 300 m |
| Supply: Power consumption max. | ≤ 2 W |
| Supply: Voltage V DC | 14.5 – 30 V DC |
| Temperature: Storage | -40-70 °C | -40-158 °F | 233-343 K |
| Volume | 19.9 cm³ |
| Weight | 280 g |
A&J Vacuum services and repairs Pfeiffer Vacuum Cold Cathode Guages (IKR 361 Series), along with all other categories of Pfeiffer Vacuum Guages/Measurement Devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier and service partner.
