- Extensive Installation Options/Orientations Available
- Extensive Accessories Available
- Pumping Speed: (N2): 67 l/s
- Compression Ratio: (N2): > 1 x 1011
Shopping Cart ( )

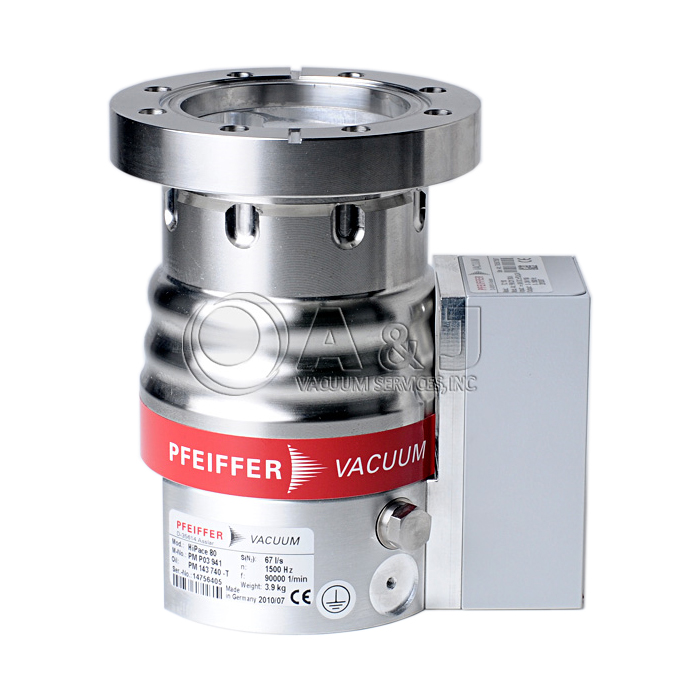

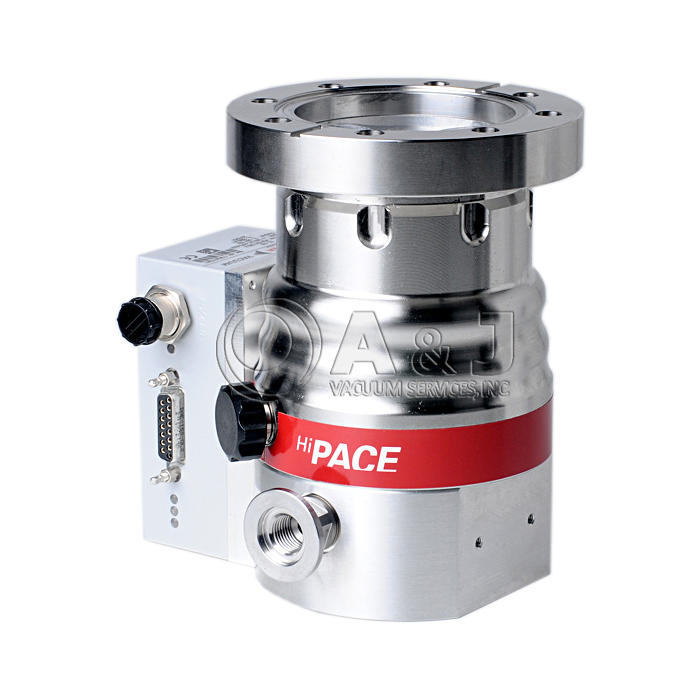

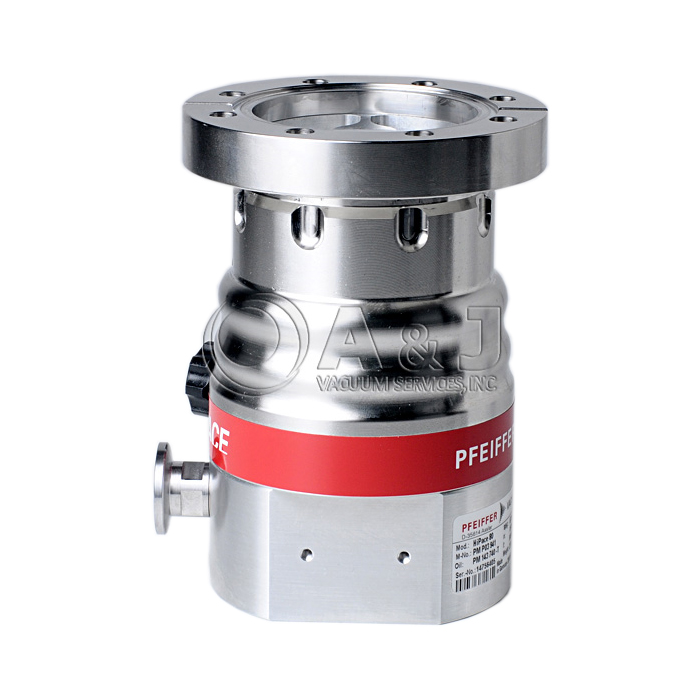

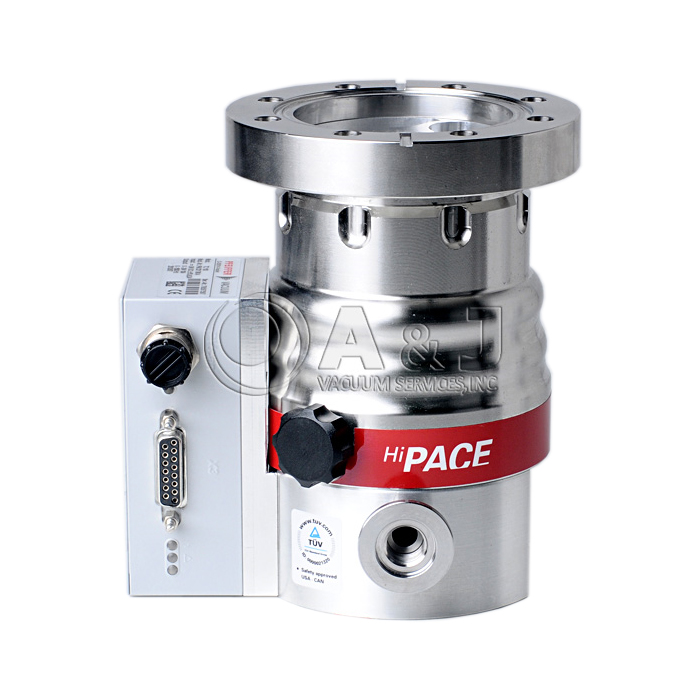

Pfeiffer Vacuum HiPace 80 Turbo Pump with TC 110 Controller, DN 63 CF-F, PMP03941-A, PM P03 941 A
Condition:
Discontinued
Item#:PN00003
Mfr Part#:PM P03941-A / PMP03941 A
Manufacturer:Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Pfeiffer Vacuum HiPace 80 Turbo Pump with TC 110 Controller, DN 63 CF-F, PMP03941, PM P03 941
Pfeiffer Vacuum HiPace 80 Turbo Pump - Product Overview:
The Pfeiffer HiPace Series is a complete line of compact, yet powerful turbo pumps featuring pumping speeds ranging from 10 - 2,000 liters per second (L/s). The Pfeiffer Vacuum HiPace 80 Turbo Pump models are cost-effective and offer flexible installation within any orientation. The proven bearing system of the HiPace 80 provides unrivaled dependability, while the sophisticated rotor design of the pump enables superior pumping speeds, greater backing pump compatibility, higher gas throughputs, and enables the compression of light gasses.
Pfeiffer Vacuum HiPace 80 Turbo Pump - Product Features:
- Powerful Turbo Pump w/ Pumping Speed of up to 67 l/s (N2)
- Ideal for Dependable Systems Integration
- Installation in Any Orientation Available
- Extensive Accessories Available
Pfeiffer Vacuum HiPace 80 Turbo Pump Characteristic:

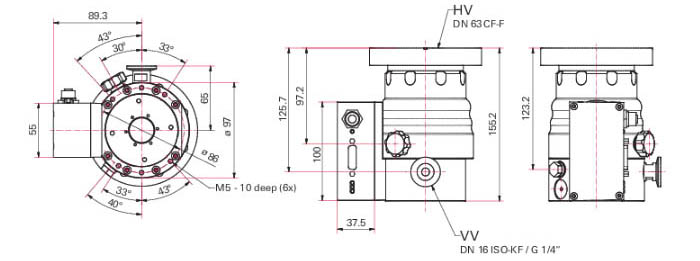

Pfeiffer Vacuum HiPace 80 Turbo Pump - Dimensions:
Click Here for Pfeiffer HiPace 80 Manual
Click Here for Pfeiffer TC 110 Operating Instruction
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 80, HiPace 300, HiPace 700 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer HiPace80 Turbo Vacuum Pump with TC110 Turbo Pump Controller, DN 63 CF-F, PMP03941, PM P03 941
Pfeiffer HiPace 80 Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 1011 |
| Compression ratio for H2 | 1.4 · 105 |
| Compression ratio for He | 1.3 · 107 |
| Compression ratio for N2 | > 1 · 1011 |
| Cooling method, optional | Air/Water |
| Cooling method, standard | Convection |
| Cooling water flow | 75 l/h |
| Cooling water flow, max | 75 l/h |
| Cooling water flow, min | 75 l/h |
| Cooling water temperature | 5-25 °C | 41-77 °F | 278-298 K |
| Electronic drive unit | with TC 110 |
| Flange (in) | DN 63 CF-F |
| Flange (out) | DN 16 ISO-KF/G ¼" |
| Fore-vacuum max. for N2 | 22 hPa | 16.5 Torr | 22 mbar |
| Gas throughput at full rotational speed for Ar | 0.54 hPa·l/s |
| Gas throughput at full rotational speed for H2 | 15.3 hPa·l/s |
| Gas throughput at full rotational speed for He | 2.7 hPa·l/s |
| Gas throughput at full rotational speed for N2 | 1.3 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Mounting orientation | Any |
| Operating voltage: V DC | 24 (± 5 %) V DC |
| Permissible magnetic field max. | 3.8 mT |
| Protection category | IP54 |
| Pumping speed for Ar | 66 l/s |
| Pumping speed for H2 | 48 l/s |
| Pumping speed for He | 58 l/s |
| Pumping speed for N2 | 67 l/s |
| Rotation speed ± 2 % | 90,000 rpm | 90,000 min-1 |
| Rotation speed variable | 50 – 100 % |
| Run-up time | 1.7 min |
| Sound pressure level | ≤ 48 dB(A) |
| Ultimate pressure according to PNEUROP | < 5 · 10-10 hPa | < 3.75 · 10-10Torr | < 5 · 10-10 mbar |
| Venting connection | G 1/8" |
| Weight | 3.8 kg | 8.38 lb |
Click Here for Pfeiffer HiPace 80 Manual
Click Here for Pfeiffer TC 110 Operating Instruction
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 80, HiPace 300, HiPace 700 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
HiPace 80 with TC110 and OPS 70, HIpace80, Pfeiffer 80 Hipace
Pfeiffer HiPace 80 Operation Manual
Pfeiffer_Vacuum_TC110_Turbo_Pump_Controller
AJVS_Pfeiffer HiPace_80_PMP03941_Sales_and_Repair.pdf
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
