Pfeiffer Vacuum TPG 362 Dual Gauge, TPR 280, (KF-16), PKR 361(KF-25) PT441968-T, Pressure Measurement System
Condition:
Discontinued
Item#:PN20947
Mfr Part#:PT441968-T
Manufacturer:Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Pfeiffer Vacuum TPG 362 Dual Gauge, TPR 280, (KF-16), PKR 361(KF-25) PT441968-T, Pressure Measurement System
Included:
- SingleGauge measurement unit TPG 362
- Transmitter TPR 280
- Transmitter PKR 361
- Connection Cable Length: 3 m
Pressure Measuring System, TPG 362 Dual Gauge controller combined with one (1) TPR 280 (KF-16) compact pirani gauge and one (1) PKR 361 (KF-25) compact cold cathode gauge and two 3 meter cables for measurement from 1000 to 2x10-mbar with 2 relays, 90-250V, 50-60 Hz.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
Pfeiffer Vacuum TPG 362 Dual Gauge, TPR 280, (KF-16), PKR 361(KF-25) PT441968-T, Pressure Measurement System
Technical Data TPG 362:
| Ambient Temperature | 5-50 °C | 41-122 °F | 278-323 K |
| Automatic Changeover: Pirani/Cold Cathode | Configurable |
| Connection for Gauge | 2 |
| Display Rate | ≥ 10 Hz |
| Error Signal: Working Contact, Potential-Free | 1 Pcs. |
| Filter Time Constant, Rapid/Normal/Slow | 0.02 s/0.15 s/0.75 s |
| I/O Interfaces | USB, RS-485, Ethernet |
| Mains Requirement: Frequency (Range) | 50/60 Hz |
| Mains Requirement: Power Consumption | 65 VA |
| Mains Requirement: Voltage (Range) | 100–240 V |
| Measurement Range | 5 * 10^[-11] – 5.5 * 10^4 hPa |
| Measurement Rate | ≥ 100 Hz |
| Measuring Channel | 2 Pcs. |
| Power Consumption Max.. | 65 VA |
| Protection Category | IP20 |
| Safety | CE, UL |
| Set Point: Changeover Contact, Potential-Free | 4 Pcs. |
| Set Point: Current AC | 1 A |
| Set Point: Current DC | 0.5 A |
| Set Point: Voltage AC | 30 V AC |
| Set Point: Voltage DC | 60 V DC |
| Set Point Number | 4 Pcs. |
| Signal Output: Measuring Value, Analog | 0 – 10 V |
| Temperature: Storage | -20-60 °C | -4-140 °F | 253-333 K |
| Weight | 1.1 kg | 2.43 lb |
Technical Data TPR 280:
| Accuracy: 1 * 10^(-3) to 100 hPa | ± 15 % |
| Ambient Temperature | 5-60 °C | 41-140 °F | 278-333 K |
| Bakeout Temperature at Flange | 80 °C | 176 °F | 353 K |
| Feature | Stainless Steel, Metal Sealed |
| Feedthrough | Glass |
| Filament | Tungsten |
| Flange Material | Stainless Steel |
| Measurement Range | 5 · 10-4 – 1 · 103 hPa |
| Nominal Diameter | DN 16 ISO-KF |
| Output Signal: Measurement Range | 2.2–8.5 V |
| Output Signal: Minimum Load | 10 kΩ |
| Pressure - Maximum: | 10,000 hPa | 7,500 Torr | 10,000 mbar |
| Protection Category | IP40 |
| Repeatability: 1 * 10^(-3) to 100 hPa | ± 2 % |
| Resolution | 1 % of Reading |
| Response Time | 80 ms |
| Seal | Metal |
| Sensor Cable Length (min.) | 200 m |
| Supply: Power Consumption (max.) | ≤ 1 W |
| Supply: Voltage V DC | 14 – 30 V DC |
| Temperature: Storage | -20-65 °C | -4-149 °F | 253-338 K |
| Volume | 1.5 cm³ |
| Weight | 80 g |

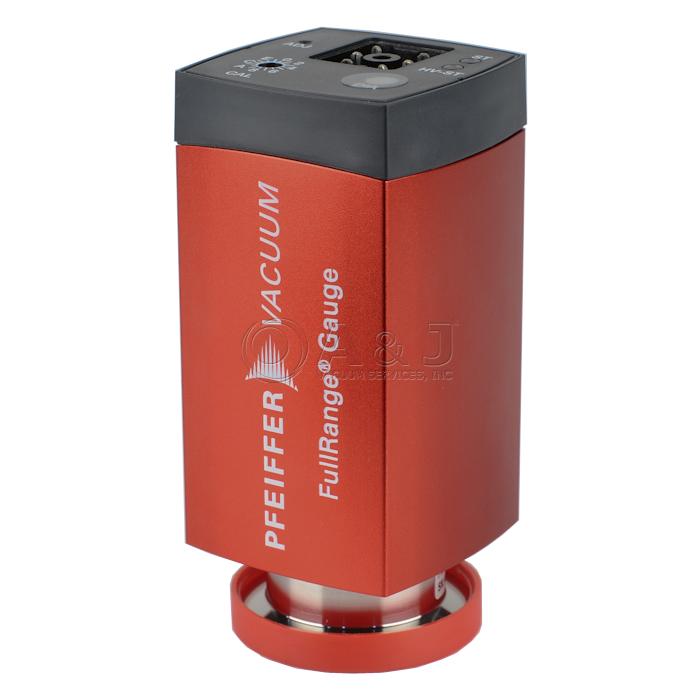

Technical Data TPG 362:
- 25 Millimeter Flange Size: DN 25 ISO-KF
- Measurement Range From 5 x 10^(-9) to 1000 hPa
- Two Gauge Heads (Pirani & Cold Cathode) Within a Single Case (Utilizing Inverted Magnetron)
- A Single Flange From Atmospheric Pressure to UHV
- Maximum Pressure Refers to Inhert Gases and Temperatures of Less Than 55°C
Manual_Instructions_TPG361_TPG362_SingleGauge_DualGauge_Controller.pdf
Manual_Instructions_TPR280_TPR281_Pirani_Gauge.pdf
Pfieffer Vacuum PKR 361, IKR 361, PKR 360, IKR 360, PKR361, IKR361, PKR360, IKR360 Manual
