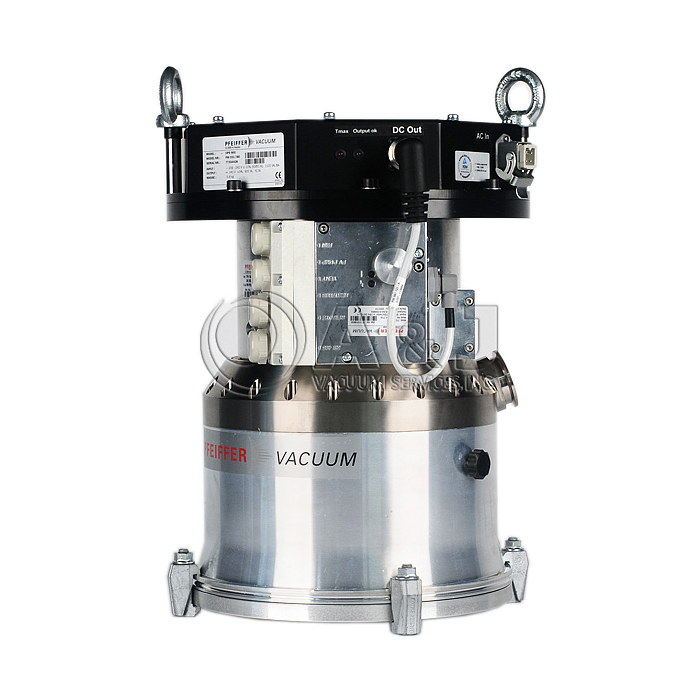

Pfeiffer Vacuum TPH 1501 UPN Turbo Pump, DN 250 ISO, with TC 750 and OPS 900, PMP03775 / PM P03 775
Condition:
Remanufactured
In Stock
Item#:PN15306
Mfr Part#:PMP03775 / PM P03 775
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum TPH 1501 UPN Turbo Pump, DN 250 ISO, with TC 750 and OPS 900, PMP03775 / PM P03 775
TPH 1501 UPN / PMP03775 Overview:
The Pfeiffer Vacuum TPH1501 UPN is a reliable, cost-efficient turbo pump, that is capable of pumping speeds up to 1450 liters per second. These pumps have a sophisticated rotor design, stable outer casing and achieve good compression for light gases.
The TPH-1501 is a flexible, robust machine that uses Pfeiffer Vacuum's proven bearing system. These pumps have a long operating life and are easy to integrate in any system.
The Pfeiffer TPH1501 UPN is suitable for applications in many areas including Analytics, Coating technology and Vacuum Metallurgy.
TPH1501UPN Applications:
- Analytics
- Semiconductor Industry
- Optical/Glass Industry
- Coating Technology
- Vacuum Technology
- Leak Detection
- Research Facilities
- Lamp Industry
A&J Vacuum also repair / rebuild and service Pfeiffer TPH 1501 UPN / PM P03 775 Turbo Pumps along with all other Pfeiffer Turbo Pumps, Pfeiffer Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum TPH 1501 UPN Turbo Pump, DN 250 ISO, with TC 750 and OPS 900, PMP03775 / PM P03 775
Pfeiffer TPH 1501 UPN Technical Data:
| Inlet connection | DN 250 ISO-K |
| Outlet connection | DN 40 ISO-KF |
| Pumping Speed (N2) | 1450 l/s |
| Ultimate Pressure | < 10-7 hPa |
| Compression ratio (n2) | >108 |
| Cooling method | Water |
| RUN-up time | 5 Min |
| Venting connection | G 1/8" |
| Weight | 49kg (107.8lbs) |
A&J Vacuum also repair / rebuild and service Pfeiffer TPH 1501 UPN / PM P03 775 Turbo Pumps along with all other Pfeiffer Turbo Pumps, Pfeiffer Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
