- Inlet: DN 200 ISO-F
- Lubricant Type Filling volume ml F3 40
- Maximum permissible rotor temperature: 120
- Noise Level (50 Hz): 57 dBA
Shopping Cart ( )

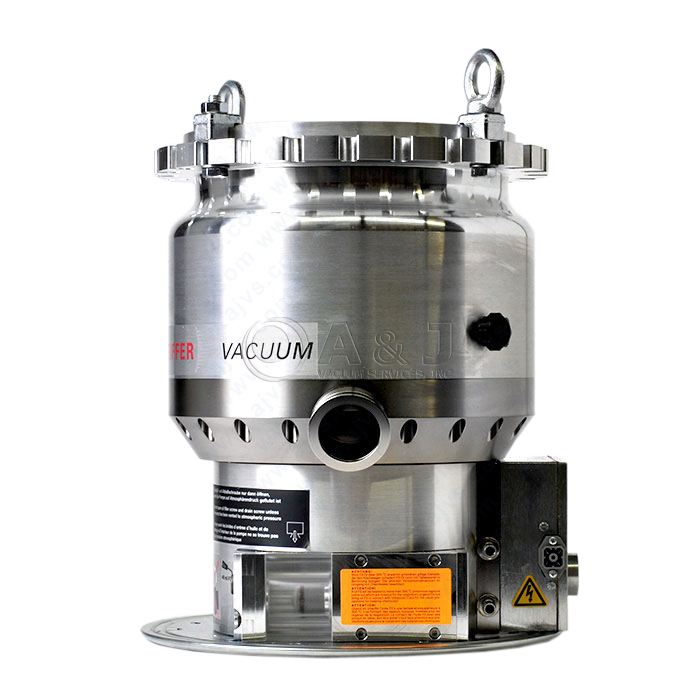

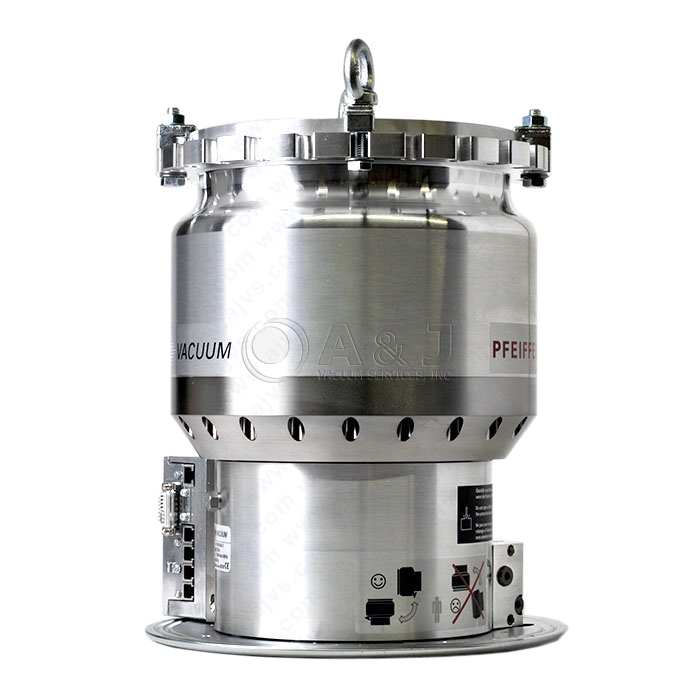

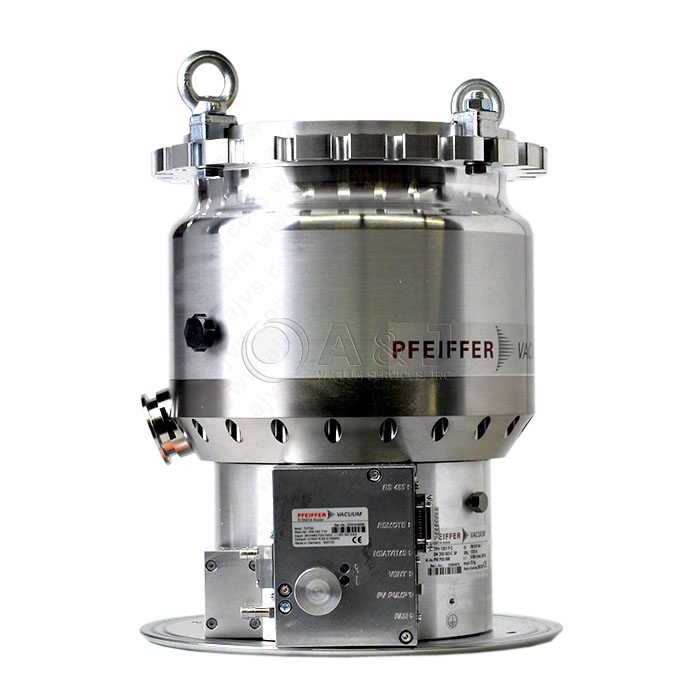

Pfeiffer Vacuum Turbo Pump TPH 1201PC, with TC 750, DN 200-ISO-F, PMP03688 / PMC01713
Condition:
Remanufactured
Call us for Availability
Item#:PN06392
Mfr Part#:PMP03688 / PMC01713
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Vacuum Turbo Pump TPH 1201PC, with TC 750, DN 200-ISO-F, PMP03688 / PMC01713
TPH 1201PC / PMP03688 Overview:
New Open Box Pfeiffer Vacuum TPH 1201 PC PMP03688 Turbo Pump coupled with a DN 200 ISO-F Inlet Flange and DN 40 ISO-KF Outlet Flange. This particular Turbomolecular Drag Pump has a pumping velocity of 1250 liters per second and a final pressure of 1 x 10-7. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The TPH 1201 PC Turbo Pump comes with an entire 12-Month Warranty.
This Pfeiffer Pump has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side. The Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.
A turbopump is a gas turbine that is made up of two independent components ; a rotodynamic pump and a driving turbine. They can be mounted on the same shaft or customarily geared together. The design of a turbopump is to produce a high pressure fluid for feeding a combustion chamber or other use. Visit the turbo pump wiki page for more information.
A turbomolecular pump is a form of vacuum pump similar to a turbopump which is used to obtain and hold a high vacuum. These pumps work on the principle that gas particles can be given momentum in a wanted direction by reiterated collision with a traveling solid surface. In a turbomolecular pump, a quickly spinning turbine rotor 'strikes' gas particles from the intake of the pump towards the exhaust in order to make or hold a vacuum. Visit the turbomolecular pump wiki page for more information.
TPH1201PC Applications:
- Freeze drying - packaging industry
- Degassing, casting, dry vacuum smelting (super-pure metals)
- Incandescent lamp manufacturing
- Electronic tubes
- Thin film deposition
- Space simulation
- Cryogenic research
- Electron microscopy
- Nuclear physics, Plasma physics, High energy physics
- Particle accelerators - Storage rings
A&J Vacuum Services offers full repair/service of Pfeiffer TPH 1201 PC Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Vacuum Turbo Pump TPH 1201PC, with TC 750, DN 200-ISO-F, PMP03688 / PMC01713

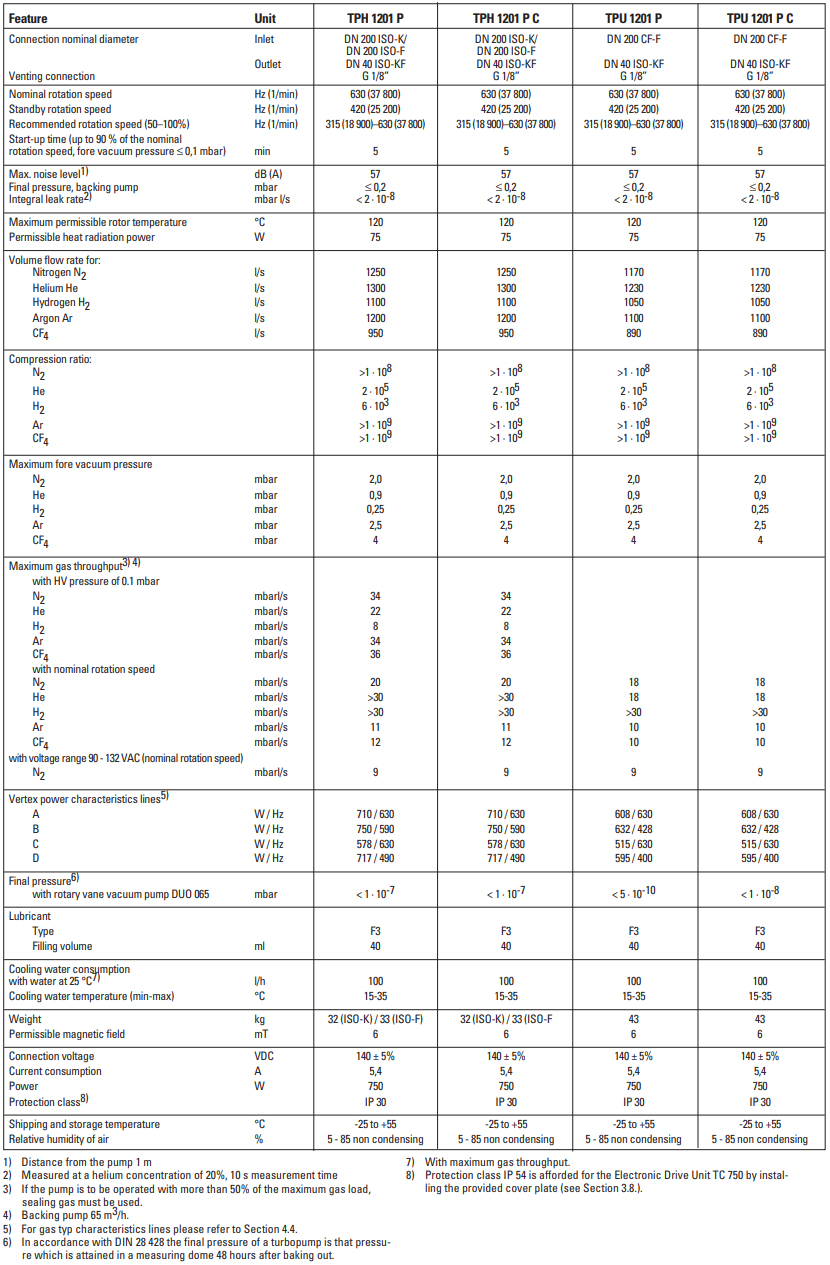

Pfeiffer TPH 1201PC Technical Data:
A&J Vacuum Services offers full repair/service of Pfeiffer TPH 1201 PC Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
